Manitowoc GROVE GMK 4100 User Manual

Boom extension
4.2 Description of the rigging work
Lattice extension operating instructions 3 112 441 en 4 - 15
GMK 4100/4100-L/5095
11.01.2008
4.2.4 Electrical connection on the boom extension

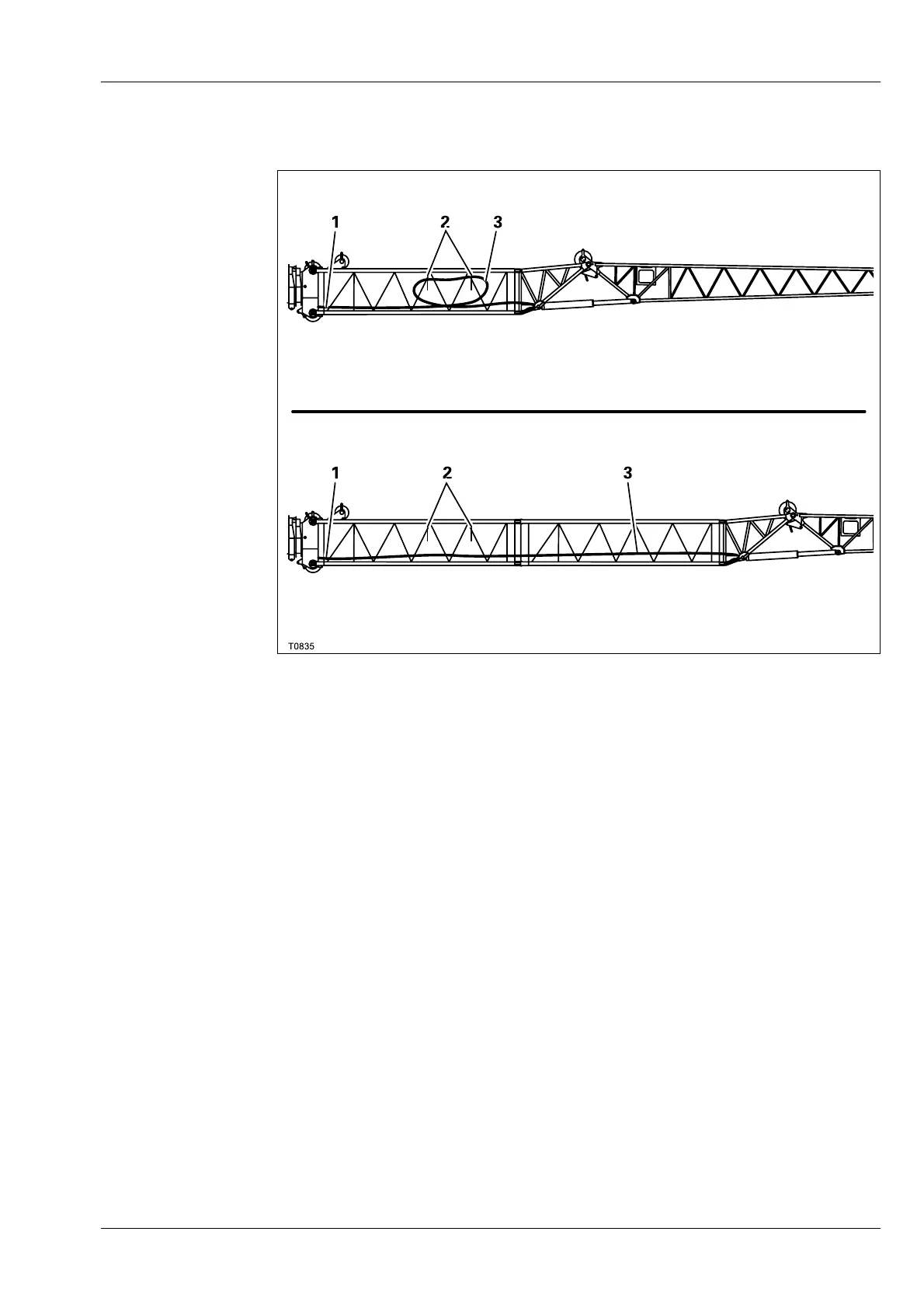

The cable is attached in section 3. The short end (1) is at the rear and the
long end (3) at the front.
If the 22 m (72 ft) boom extension is rigged, the long end (3) of the cable is
wound at on holders (2).
With rigged 27 m (89 ft) boom extension, the long end (3) of the cable is
pulled through section 4 to the front. The holders (2) are not used.
s
22 m (72 ft) boom extension
27 m (89 ft) boom extension
