Manitowoc GROVE GMK 4100 - Short description of the operating elements

Swing-away lattice
3.2 Short description of the operating elements
Lattice extension operating instructions 3 112 441 en 3 - 3
GMK 4100/4100-L/5095
11.01.2008

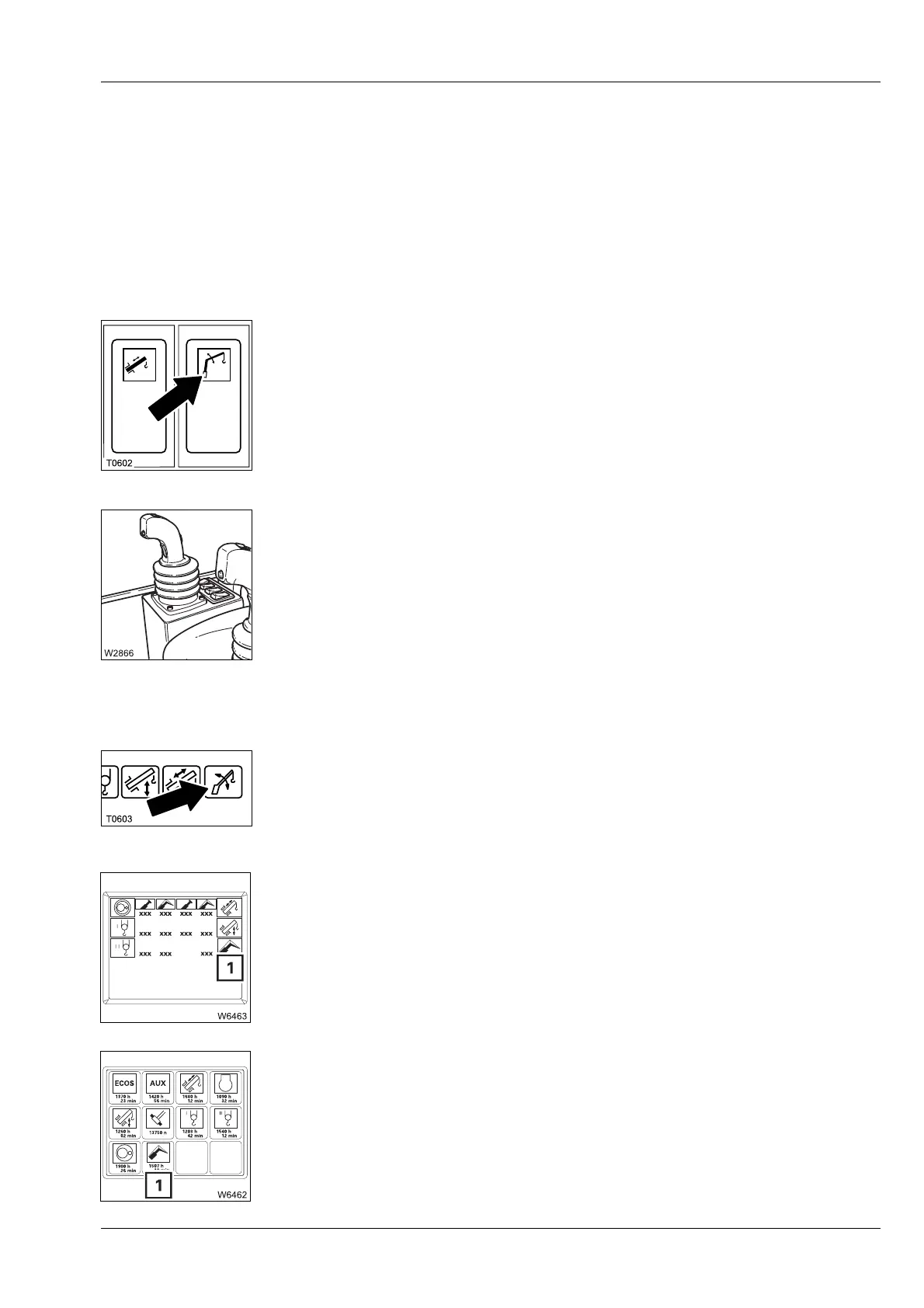

3.2 Short description of the operating elements
3.2.1 In the crane cab
On the control
console, right
This section only applies to the derricking swing-away lattice.
Lattice extension derricking gear on / off
There is a lamp in the button.
Right-hand control lever
On the crane
control display
This section only applies to the derricking swing-away lattice.
Power unit display – in main menu
Limiting the power unit speed – power unit speed submenu
If the symbol (1) in displayed in black, a maximum speed can be set for the
lattice extension derricking gear;
à Operating instructions GMK 4100/
4100-L/5095.
Displaying the operating hours – operating hours submenu
The operating hours of the lattice extension derricking gear are displayed
under the symbol (1);
à Operating instructions GMK 4100/4100-L/5095.
– Press once – Lamp bright – derricking gear on,
power units with the same control lever assignment off
– Lamp dim – derricking gear off
à p. 3 - 77
– To the left: Raise – lift swing-away lattice
– To the right: Lower – lower swing-away lattice
à p. 3 - 77
– Green: Derricking gear on
–Red: Derricking gear off
