Swing-away lattice
3.4 Description of the rigging work
Lattice extension operating instructions 3 112 441 en 3 - 61
GMK 4100/4100-L/5095
11.01.2008
3.4.12 Electrical connections at the swing-away lattice
With 10 m (33 ft)
swing-away lat-
tice

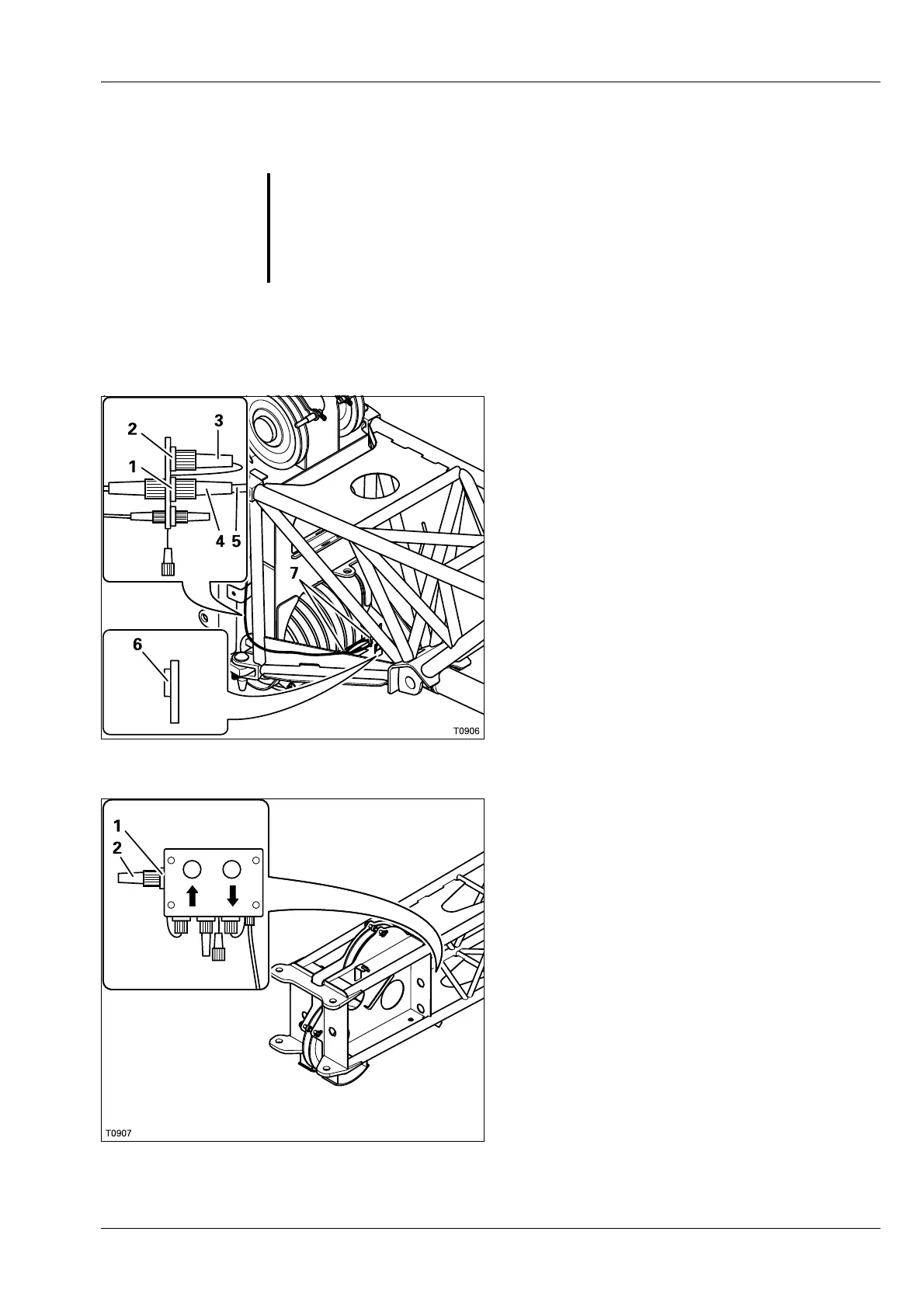

Establishing the electrical connection
• Remove the bridging plug (3) from the
socket (1) and plug it into the dummy socket
(2).
• Unwind the cable (5) from the holder (7).
• Remove the plug (4) from the dummy socket
(6) and plug it into the socket (1).
• Wind up the cable (5) on the holder (7) until
it does not sag.
• Check whether the bridging plug (2) is
inserted in the socket (1) at the front of
section 1.
s
G
Risk of crushing due to the swing-away lattice swinging around
Start the subsequent work only if the swing-away lattice has been pinned
in front of the main boom head or is secured against swinging around.
This will prevent the swing-away lattice from swinging inadvertently to the
side of the main boom and crushing you.
