Swing-away lattice
3.4 Description of the rigging work
3 - 60 3 112 441 en Lattice extension operating instructions
GMK 4100/4100-L/5095
11.01.2008
Only section 1
installed
• Fasten a guide rope to section 2.
• Sling section 2 onto an auxiliary crane; à Slinging points, p. 2 - 5.

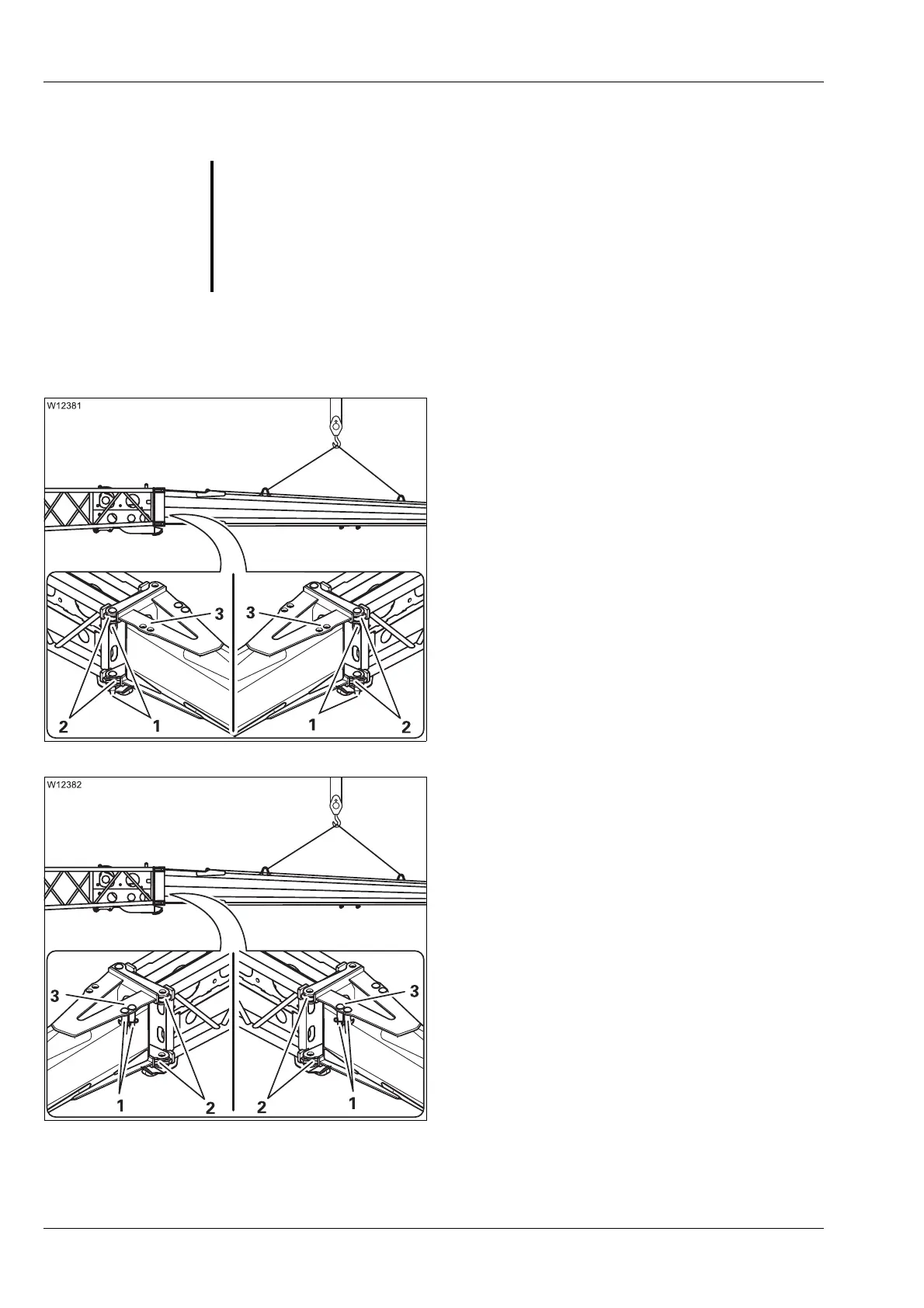

Establishing a connection
• Align section 2 so that the connecting points
(2) in line.
• Pull the pins (1) out of the retaining sheet (3).
• Insert the pins (1) in the connecting points
on both sides (2) and secure them with
retaining pins.
Releasing the connection
• Remove the pins (1) from the connecting
points (2) on both sides.
• Insert the pins (1) in the retaining sheet (3)
and secure them with retaining pins.
G
Danger of crushing due to section 2 swinging
Always secure section 2 with a guide rope from the ground before estab-
lishing or undoing the connection.
In this way you will prevent the swinging lattice extension from knocking
you off the ladder, or yourself from being crushed between the sections of
the swing-away lattice.
