2.4 Auxiliary single-sheave boom top
2 - 10 3 112 441 en Lattice extension operating instructions
GMK 4100/4100-L/5095
11.01.2008
2.4 Auxiliary single-sheave boom top
Identification and
slinging point
Observe the notes on:
–
Identification; à p. 2 - 1
–
Slinging points à p. 2 - 2

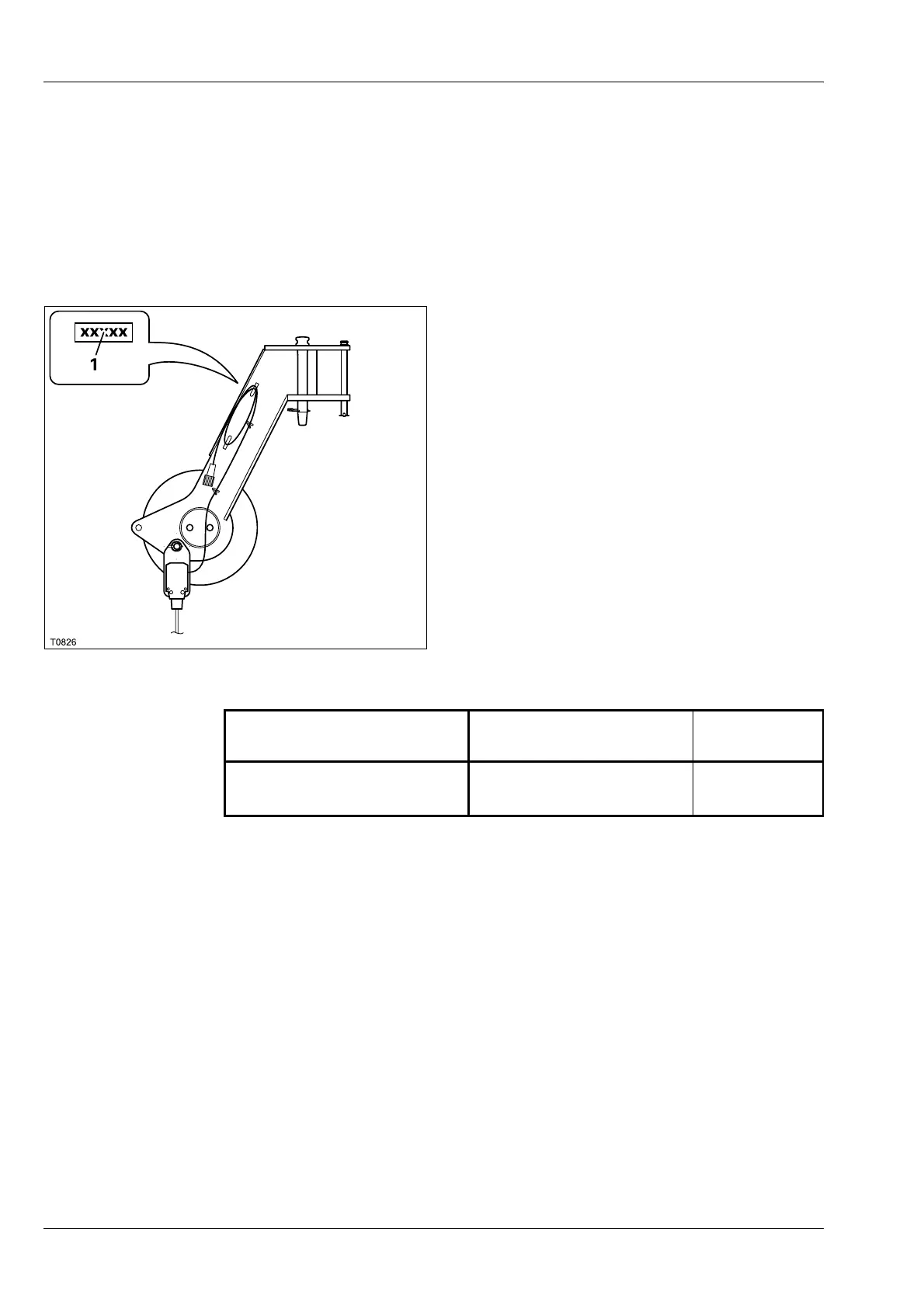

The serial number (1) is on a plate at the front
of the auxiliary single-sheave boom top.
• Sling a lifting strap. Do not damage any
attachments in the process.
Transport dimen-
sion and weight
Description
Length x width x height
in m (ft)
Weight in kg
(lbs)
Auxiliary single-sheave
boom top
1.00 x 0.40 x 1.00
(3.3 x 1.3 x 3.3)
60
(135)
