Manitowoc GROVE GMK 4100 User Manual

For operations planning
2.5 Heavy load lattice extension
Lattice extension operating instructions 3 112 441 en 2 - 11
GMK 4100/4100-L/5095
11.01.2008
2.5 Heavy load lattice extension
Identification and
slinging point
Observe the instructions regarding:
–
Identification; à p. 2 - 1 and
–
Slinging points; à p. 2 - 2.

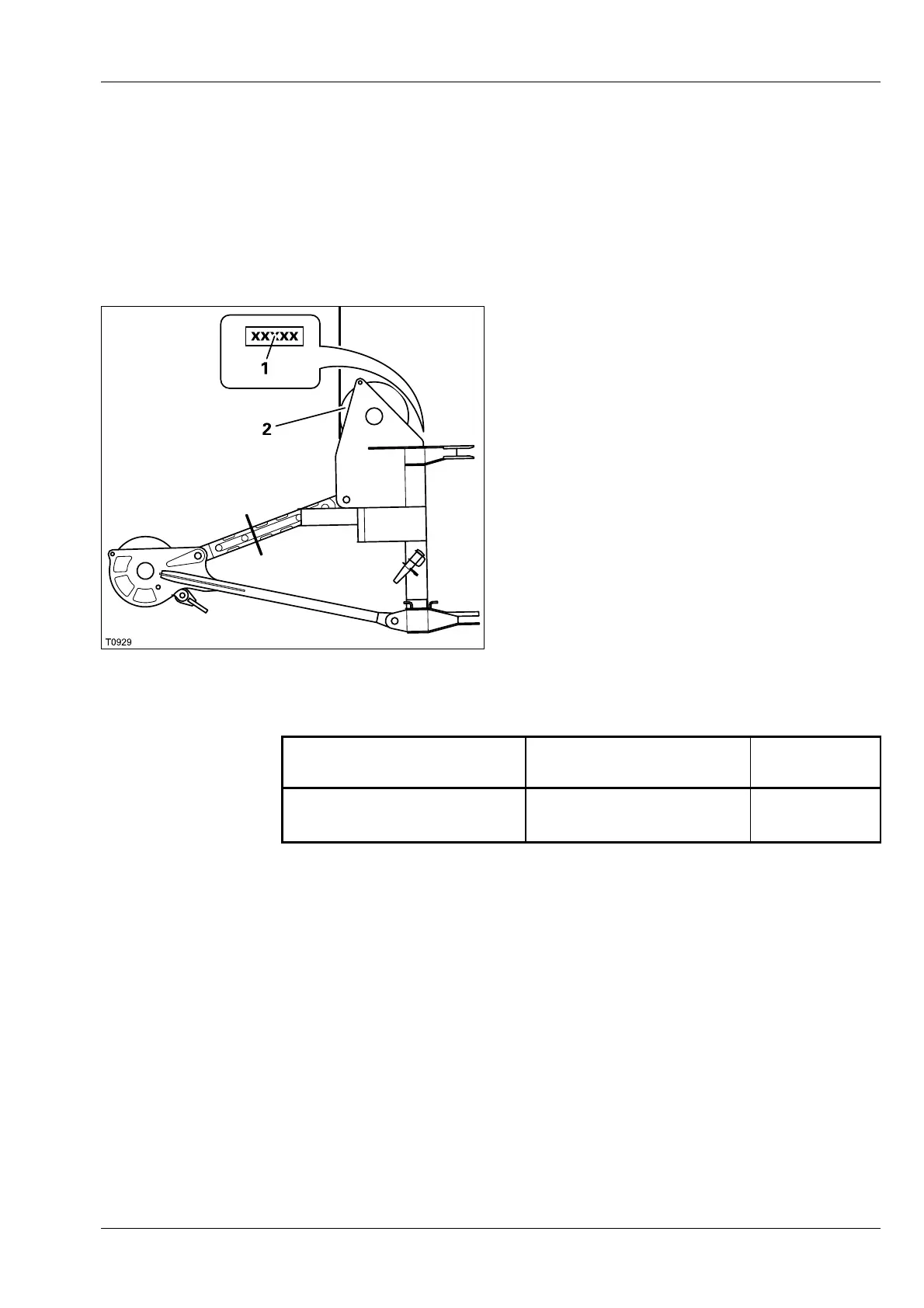

The serial number (1) is on a metal sheet on
the front of the cross-strut of the heavy load
lattice extension.
• Attach the heavy load lattice extension at a
0° angle in front of the sheave (2). Be careful
not to damage any additional units.
Transport dimen-
sions and weight
Designation
Length x width x height
in m (ft)
Weight in kg
(lbs)
Heavy load lattice extension
2 m (6.6 ft)
2.30 x 0.90 x 1.60
(7.6 x 3.0 x 5.3)
330
(730)
