Manitowoc GROVE GMK 4100 - Attaching and Removing the Hoist Rope

Heavy load lattice extension
6.2 Rigging the heavy load lattice extension
6 - 10 3 112 441 en Lattice extension operating instructions
GMK 4100/4100-L/5095
11.01.2008
6.2.4 Attaching and removing the hoist rope

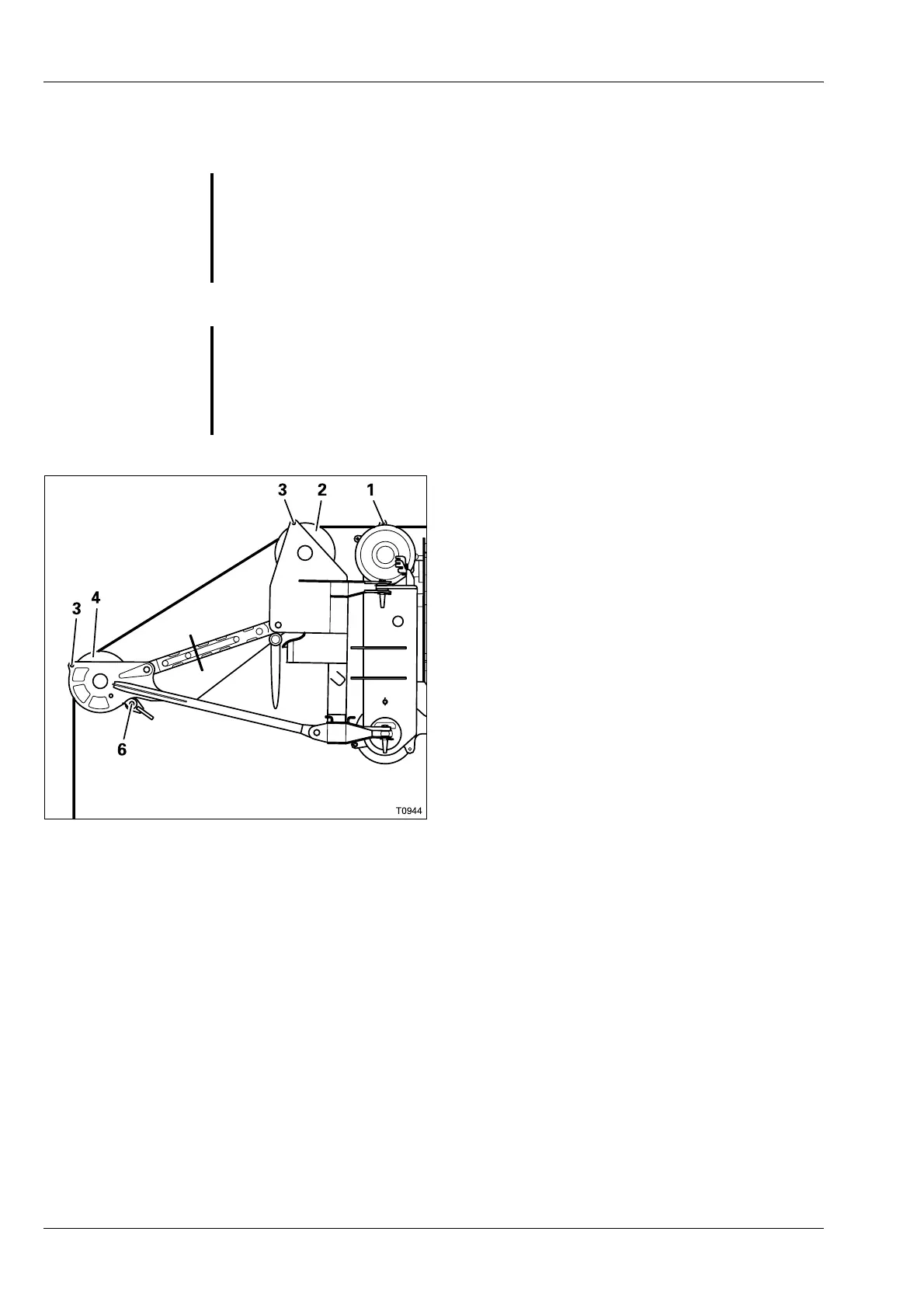

Positioning the hoist rope
• Remove the sheaves (1) and (3).
• Lead the hoist rope over the deflection
sheave (2) and the head sheave (4).
• Put all sheaves (1) and (3) back in place and
secure them with retaining pins.
• Reeve in the hook tackle or the hook block.
• For double reeving:
– Fold the rope attachment point (6) out;
à p. 6 - 15.
– Secure the cable end clamp from the rope
attachment point (6).
• For single reeving:
– Fold the rope attachment point (6) in;
à p. 6 - 15.
Removing the hoist rope
• Unreeve the hook block.
• Remove the sheaves (1) and (3).
• Take the hoist rope from the deflection sheave (2) and the head
sheave (4).
• Put all sheaves (1) and (3) back in place and secure them with retaining
pins.
• Fold the rope attachment point (6) in; à p. 6 - 15.
G
Risk of accidents due to falling parts
Always secure the sheaves and rods for securing the hoist rope with retain-
ing pins.
This prevents elements from coming loose, falling down and injuring
people.
S
Risk of damage when rope attachment point is folded out
Always make sure to fold in the rope attachment point for operation with a
single-reeved hoist rope.
This prevents the rope attachment point from being damaged during oper-
ation.
