Manitowoc GROVE GMK 4100 User Manual

Auxiliary single-sheave boom top
5.1 Installation / removal
5 - 2 3 112 441 en Lattice extension operating instructions
GMK 4100/4100-L/5095
11.01.2008
Removing
• Sling the auxiliary single-sheave boom top;
à p. 2 - 10.

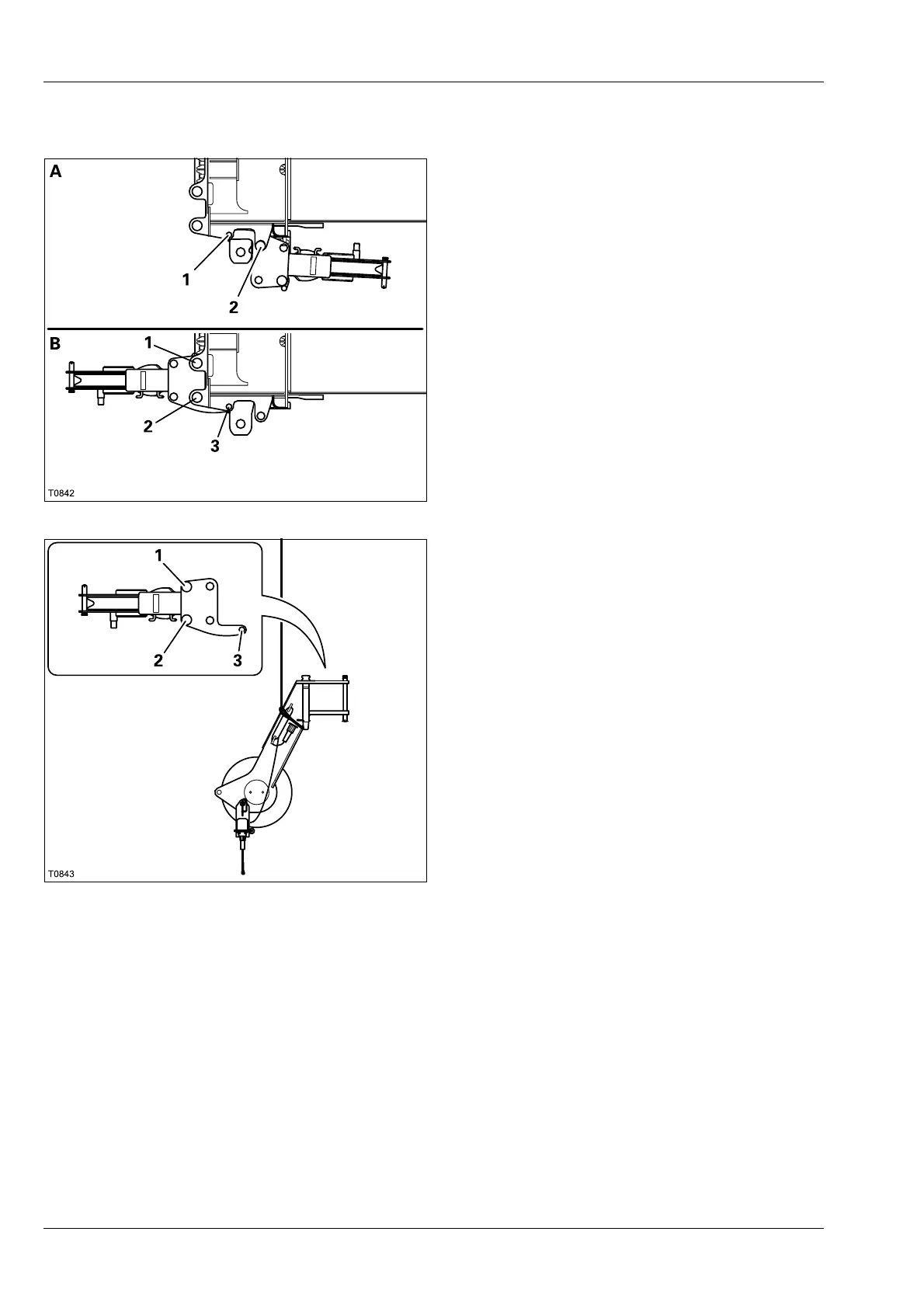

(A) – In transport position
• Pull out the pins (1) and (2).
(B) – In working position
• Pull out the pins (1), (2) and (3).
• Raise the auxiliary single-sheave boom top
from the main boom head.
• Insert the pins (1) and (2) in the bearing
points.
• Insert the thin pin (3) in the bearing point.
• Secure all pins with linchpins.
