Swing-away lattice
3.4 Description of the rigging work
3 - 40 3 112 441 en Lattice extension operating instructions
GMK 4100/4100-L/5095
11.01.2008

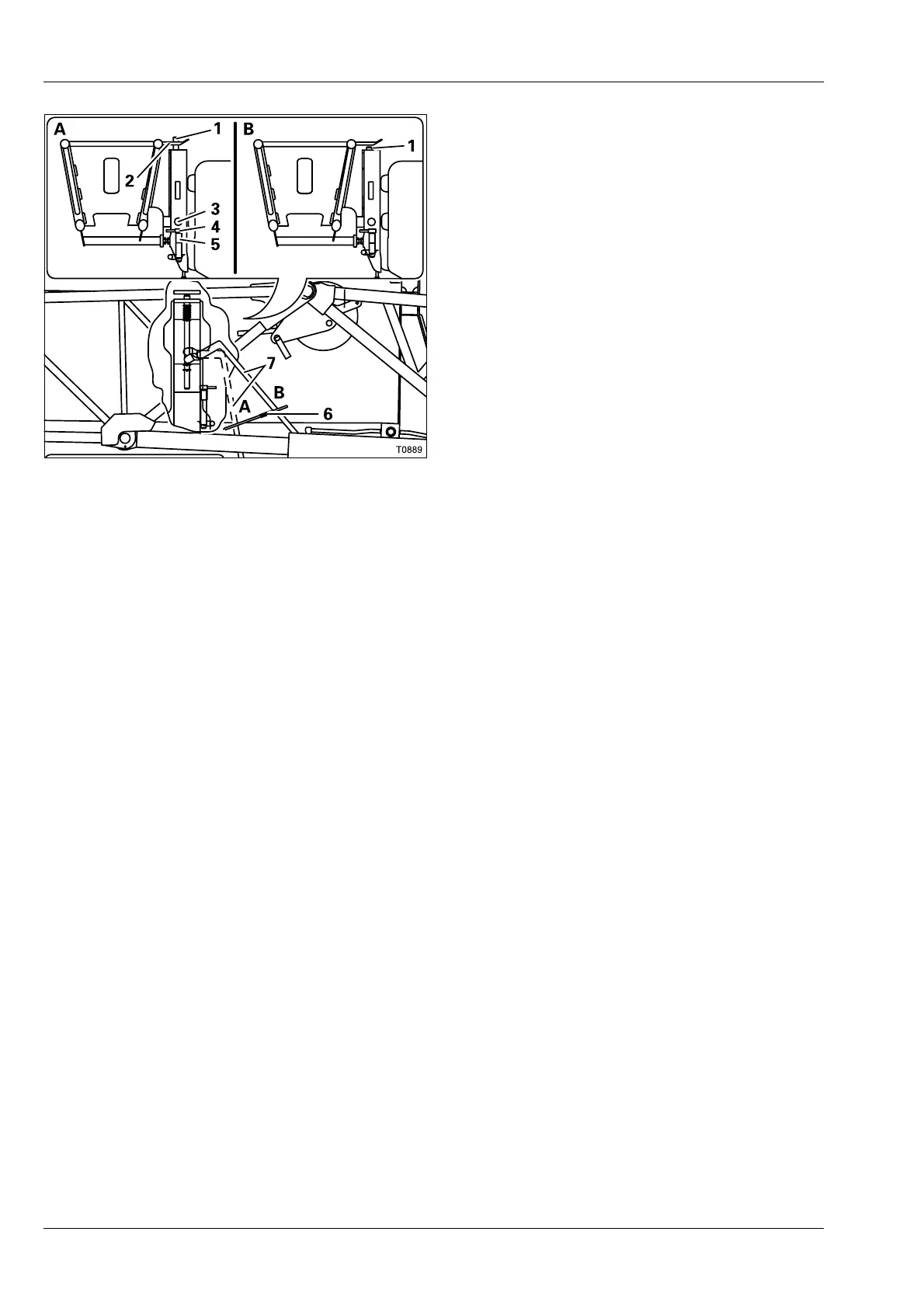

• (A) – Pull the pin (4) out of the bore (3) and
insert it in the holder (5).
• Secure the pin (4) with the retaining pin.
You can now retract the slewing axis (1) so that
it no longer protrudes out of the holder (2).
• (B) – Pull the lever (7) upwards against the
spring force into position (B).
• Set down the lever (7) on the rest (6).
The slewing axis (1) is now retracted and
you can swing the lattice extension in front
of the main boom head.
