Swing-away lattice
3.4 Description of the rigging work
3 - 48 3 112 441 en Lattice extension operating instructions
GMK 4100/4100-L/5095
11.01.2008

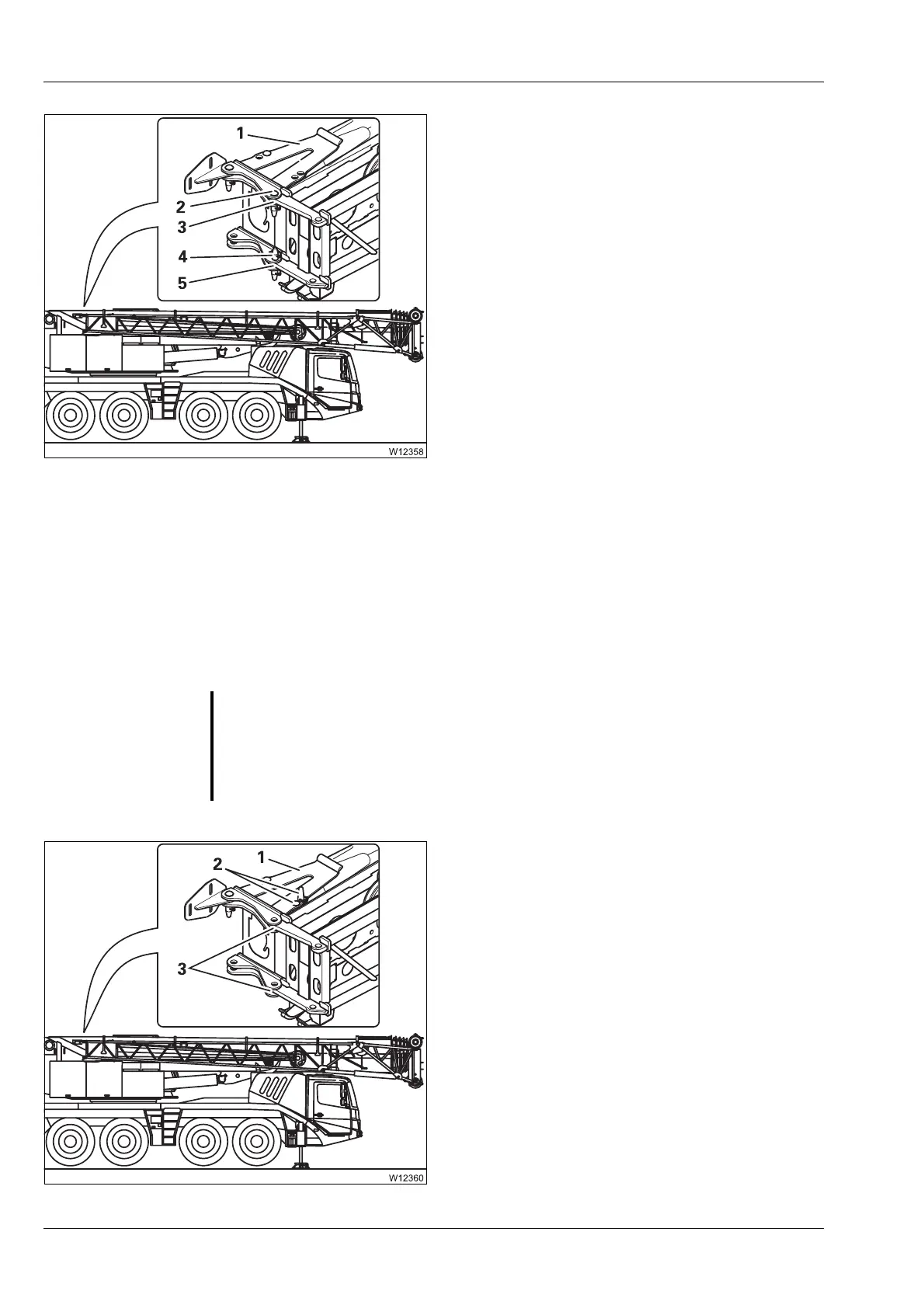

Establishing the connection
• Pull the conical pin (4) and another pin (2)
out of the holder (1).
• Insert the pin (2) in the upper connecting
point (3).
• Insert the conical pin (4) in the lower con-
necting point (5).
• Secure the pins (2) and (4) with the retaining
pins.
Undoing the connection
• Before undoing the connection, check whether:
– The connection in the
Front area has been established; à p. 3 - 38
– The connection in the
Middle area is in the Section 2 / main boom position;
à p. 3 - 43
– The connection between section 2 and the main boom has been estab-
lished in the
Rear area; à p. 3 - 46.
• Pull the pins (2) out of the connecting
points (3).
• Insert the pins in the holder (1).
• Secure the pins with the retaining pins.
G
Risk of accidents due to falling parts
Before undoing the connection, make sure all of the afore-mentioned con-
nections have been established.
In this way you will prevent either section 2 or section 1 or both of them
from falling down when the connection is undone.
