Swing-away lattice
3.4 Description of the rigging work
3 - 50 3 112 441 en Lattice extension operating instructions
GMK 4100/4100-L/5095
11.01.2008
Left-hand connec-
tion

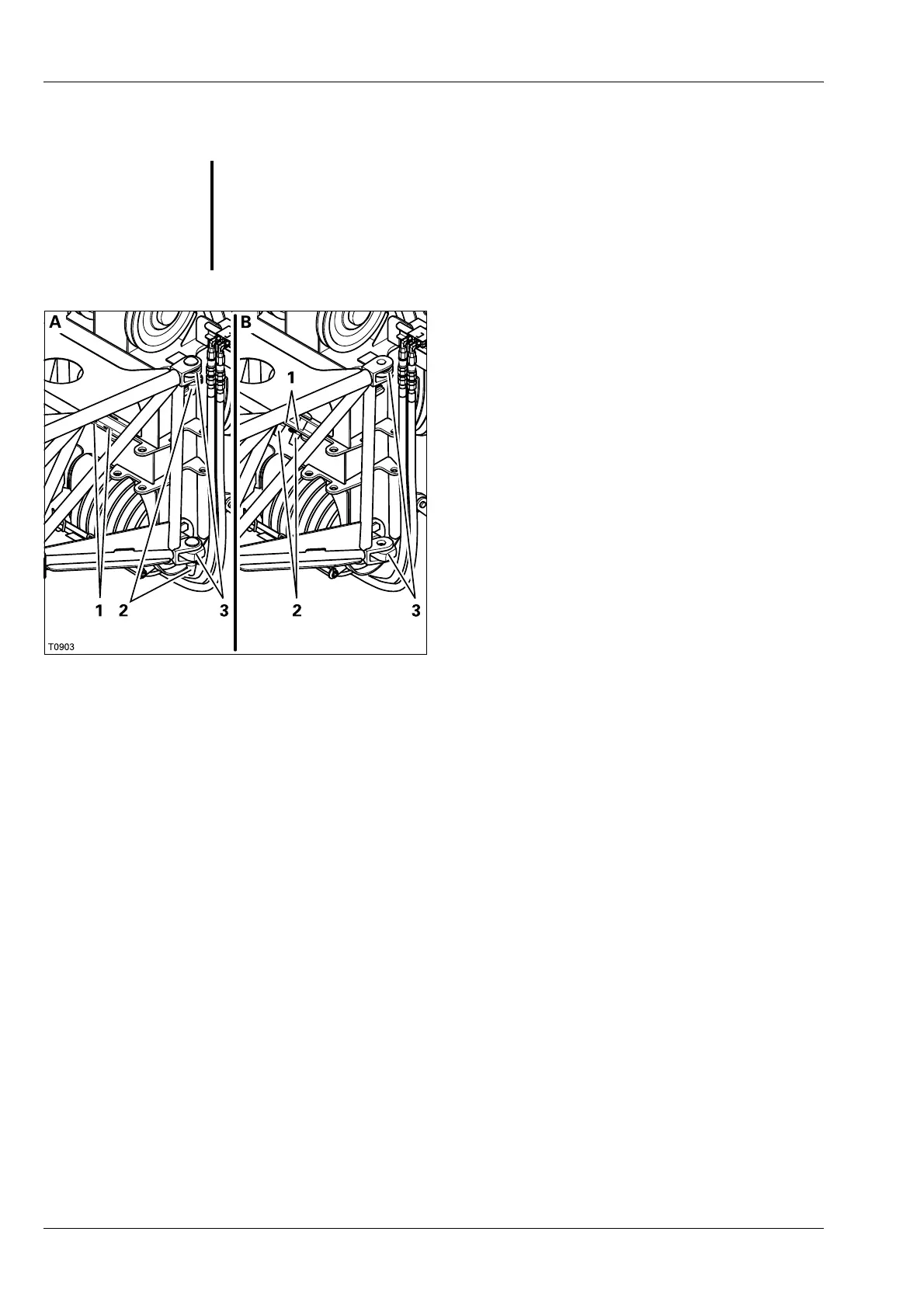

(A) – Establishing the connection
• Swing the swing-away lattice to the main
boom until the connecting points (3) are in
line.
• Pull the pins (2) out of the holders (1).
• Insert the pins in the connecting points (3)
and secure them with retaining pins.
(B) – Undoing the connection
• Secure the swing-away lattice with a guide
rope before undoing the connection;
à p. 3 - 27.
• Pull the pins (2) out of the connecting
points (3).
• Insert the pins in the holders (1) and secure
them with retaining pins.
G
Risk of accidents due to the lattice extension swinging of its own accord
Secure the swing-away lattice always with a guide rope before undoing any
connections.
This will prevent the lattice extension from swinging around of its own
accord and causing injury to you or other persons.
