Swing-away lattice
3.4 Description of the rigging work
3 - 52 3 112 441 en Lattice extension operating instructions
GMK 4100/4100-L/5095
11.01.2008

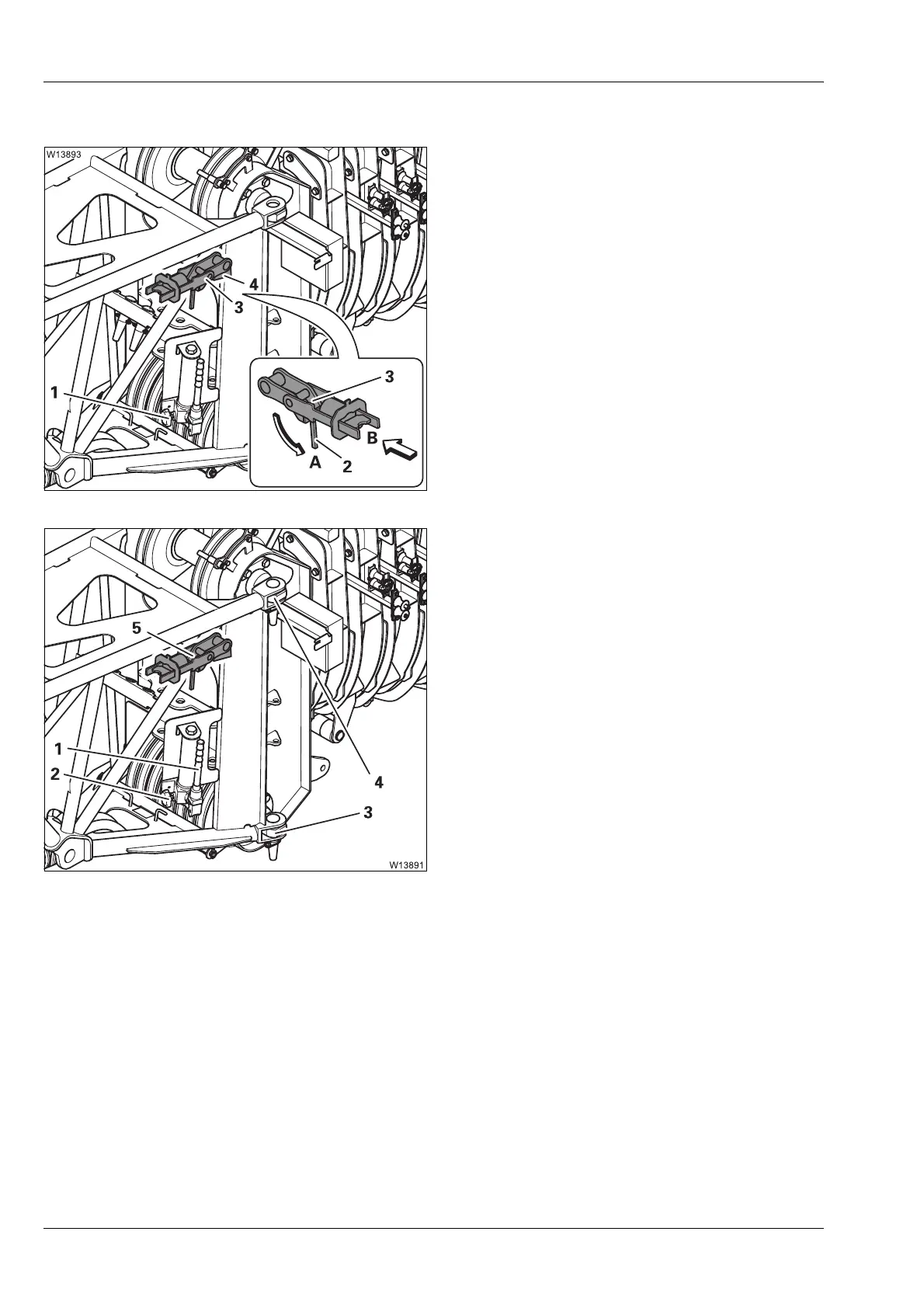

Rigging
Rigging position
• Open the valve (1).
• Place the lever (2) in position (A).
• Press the pull rod (3) manually as far as it
will go in direction (B).
• Close the valve (1).
• Swivel the swing-away lattice in front of the
main boom head.
In end position, the pull rod (3) falls onto the
hook (4).
Establishing connections
• Fit the pin into the connecting point (3) and
secure it.
• Move the lever (1) forward and back again.
The ram of the hydraulic cylinder (5) is
extended. Move the lever (1) until the bores
on the connecting point (4) align.
• Fit the pin into the connecting point (4) and
secure it.
• Open the valve (2).
