Swing-away lattice
3.4 Description of the rigging work
Lattice extension operating instructions 3 112 441 en 3 - 65
GMK 4100/4100-L/5095
11.01.2008
Folding in deflec-
tion sheaves
In order to drive with the folded swing-away lattice, you must fold in the
deflection sheaves.

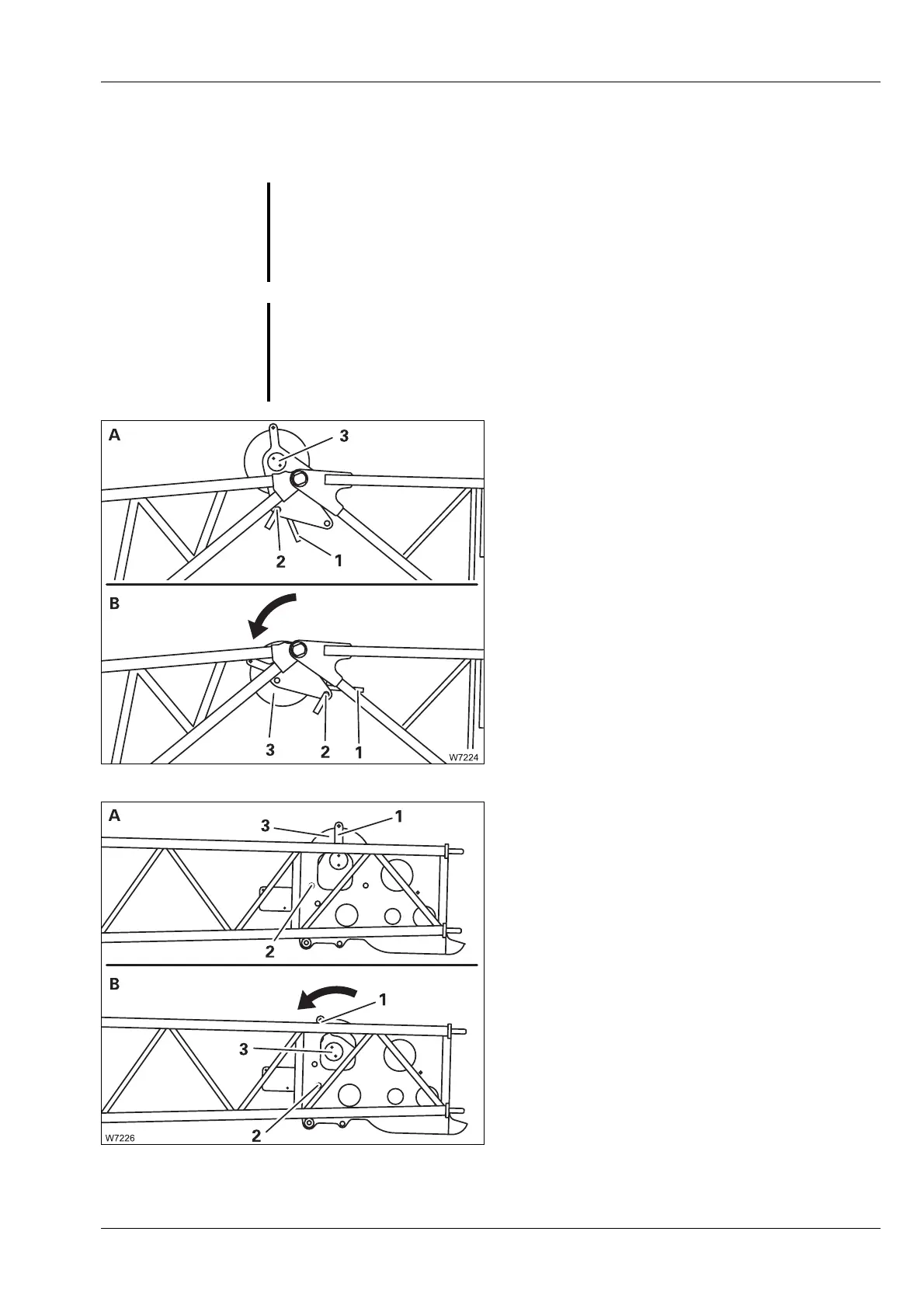

Rear deflection sheave
• (A) – Undo the retaining pin for the pin (2).
• Hold the deflection sheave tight by the han-
dle (1) and pull out the pin (2).
• (B) – Fold the deflection sheave (3) down-
wards and fasten it in this position with the
pin (2).
• Secure the pin (2) with the retaining pin.
Front deflection sheave
• (A) – Undo the retaining pin for the pin (2).
• Hold the deflection sheave tight by the strut
(1) and pull out the pin (2).
• (B) – Fold the deflection sheave (3) down-
wards and fasten it in this position with the
pin (2).
• Secure the pin (2) with the retaining pin.
G
Risk of accidents by exceeding the permissible overall height
Always fold in the deflection sheaves when the swing-away lattice is folded
onto the main boom for driving. The overall height specified for on-road
driving is exceeded if the deflection sheaves are folded out.
G
Risk of crushing
When pulling the pins, always hold the
Rear deflection sleeve tight by the han-
dle and the
Front deflection sheave by the strut.
Your fingers might get crushed if you hold the sheave by the side plate.
