Swing-away lattice
3.4 Description of the rigging work
Lattice extension operating instructions 3 112 441 en 3 - 69
GMK 4100/4100-L/5095
11.01.2008
At the 10 m (33 ft)
swing-away lattice

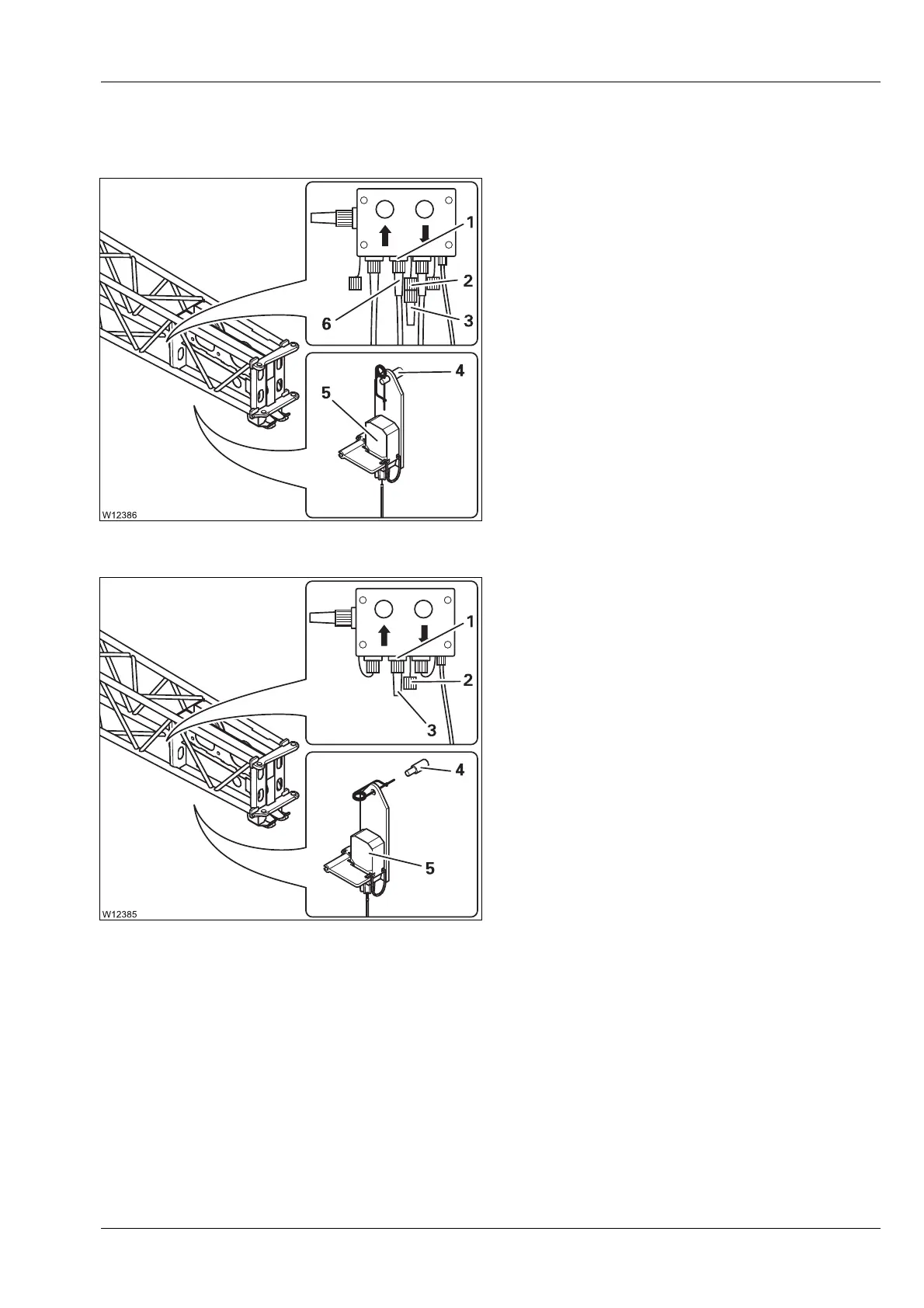

Connecting the lifting limit switch
• Fit the lifting limit switch (5) onto the clamp
(4) and secure it with a retaining pin.
• Remove the bridging plug (3) from the
socket (1) and plug it into the dummy
socket (2).
• Lay the connecting cable (6) in such a way
that it will not be damaged during crane
operation, and insert the lifting limit switch
into the socket (1).
Removing the lifting limit switch
• Pull the plug from the socket (1).
• Remove the bridging plug (3) from the
dummy socket (2) and plug it into the
socket (1).
• Remove the lifting limit switch (5) from the
clamp (4).
• Attach the retaining pin to the lifting limit
switch.
