Swing-away lattice
3.5 Operation with swing-away lattice
3 - 88 3 112 441 en Lattice extension operating instructions
GMK 4100/4100-L/5095
11.01.2008
Entering the
SLI code
• Enter the current rigging mode on the SLI, either using the corresponding
SLI code according to the
Lifting capacity table or individual components.
• Enter the current reeving on the SLI.
• Check whether the current rigging mode of the truck crane corresponds
to the displayed rigging mode.
• Check:
Lifting capacities
When the telescopic sections are telescoped to a fixed length with the
GMK 4100/4100-L/5095, the SLI releases the lifting capacity now according to
the
Lifting capacity table and the corresponding value appears on the Maximum
load
display (1).
Depending on the current angle, the SLI automatically switches to the
capacity diagrams for fixed angles (0° inclination) and intermediate angles
(0 – 20° or 20 – 40° inclination) if this is permitted for the load currently
raised.

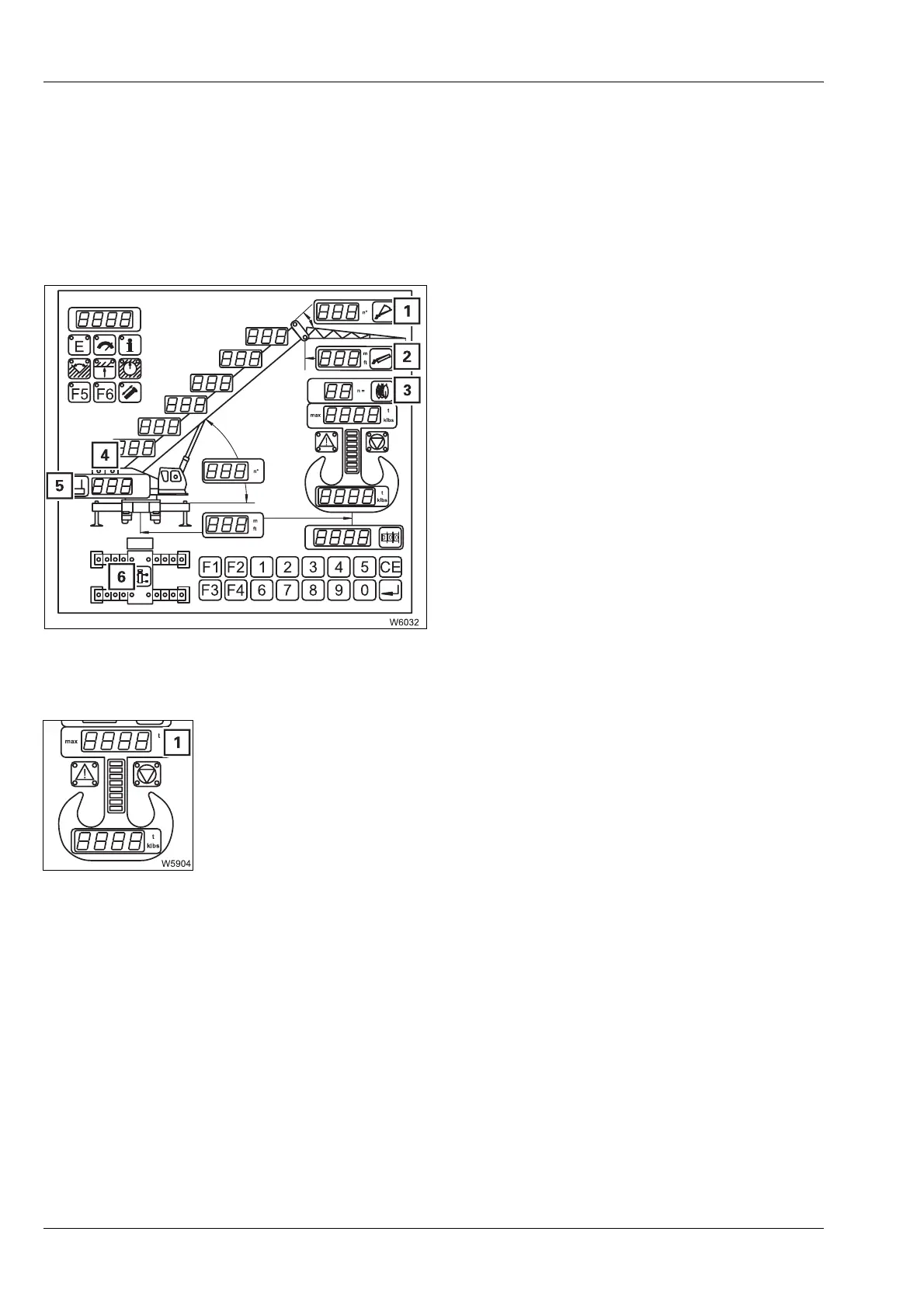

–5 The rigged counterweight
–2 The length of the rigged swing-away
lattice
–1 With an inclinable swing-away lat-
tice, the rigged angle
–6 The rigged outrigger span
–3 The number of reeved rope lines
–4 The hoist that is switched on
