Maintenance work on the carrier
7.6 Transmission
09.03.2018
Maintenance manual 3 302 746 en 7 - 47
GMK5200-1

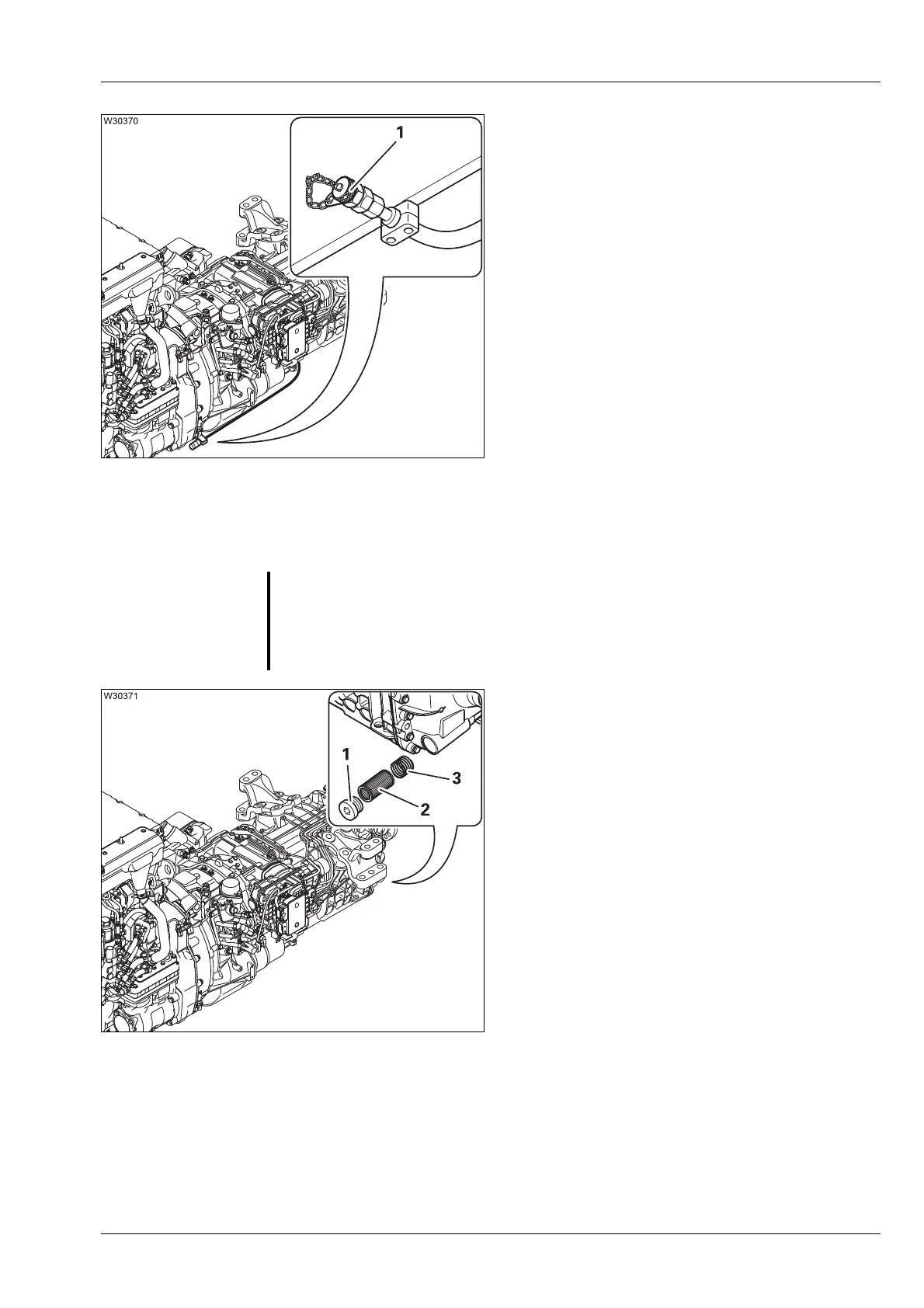

• Place a receptacle under the valve (1).
• Screw the connecting piece and hose onto
the valve (1) and drain the oil into the recep-
tacle;
à Handling the valves, p. 7 - 112.
• Remove the connecting piece and hose
from the valve (1) and take away the recep-
tacle.
Cleaning the filter
• Remove the drain plug (1).
• Take the strainer (2) and the spring (3) out
and clean them.
Replace any damaged parts.
• Insert the spring and strainer into the open-
ing.
• Replace the gasket and tighten the drain
plug – torque 60 Nm (44.25 lbf ft).
s
G
Risk of injury due to spring tension
The oil strainer bolt is spring-loaded. Release it carefully and be careful of
the spring tension.
