Maintenance work on the carrier
7.9 Axle lines
09.03.2018
Maintenance manual 3 302 746 en 7 - 63
GMK5200-1
4
th
axle line

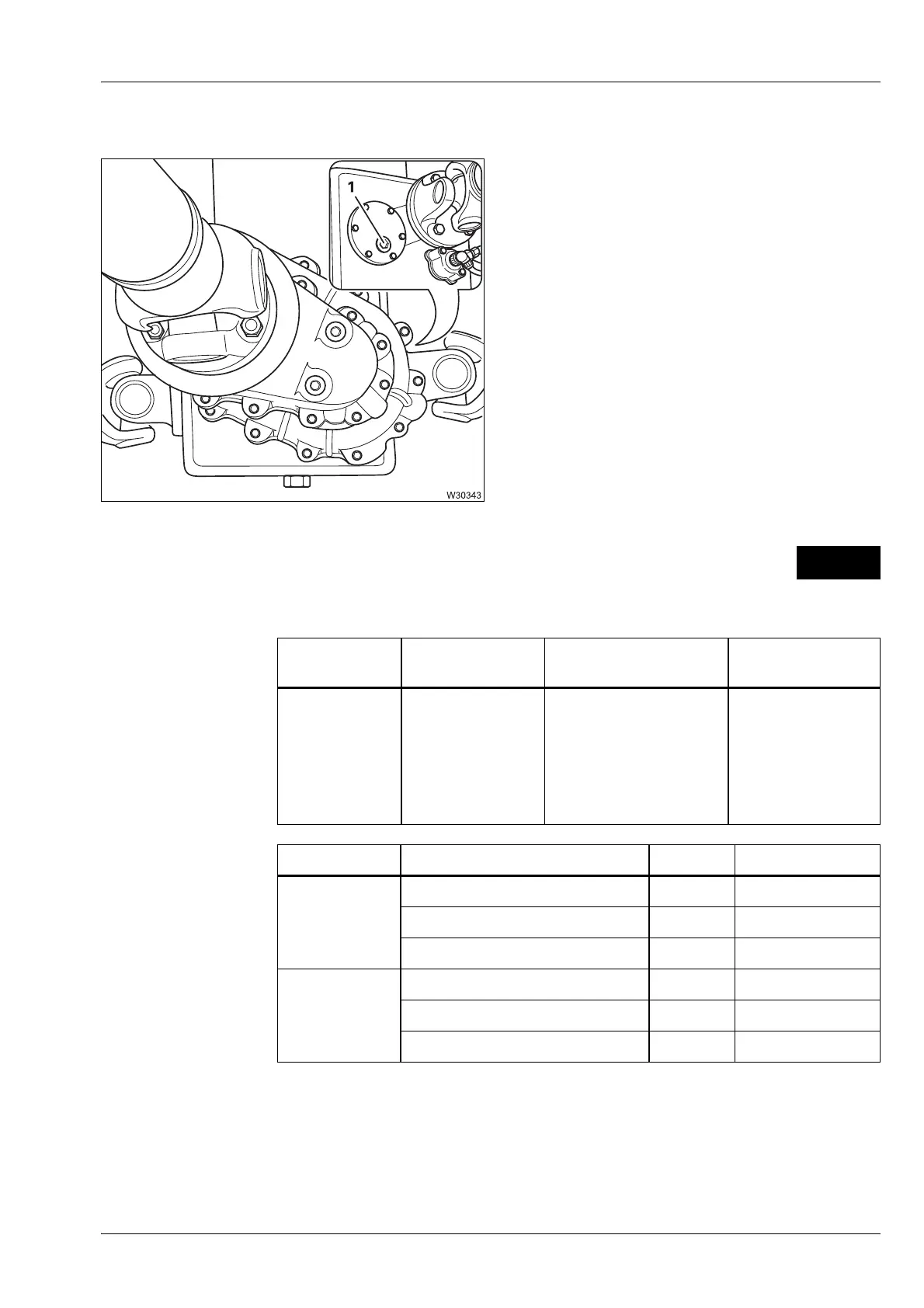

The drive has two oil chambers.
• Remove the drain plug (1).
• Check that the oil reaches the lower edge of
the opening.
• Fit a new gasket and tighten the drain plug.
If the oil level is too low
• Top up the oil; à p. 7 - 65.
7.9.3 Axle centre drives – changing the oil
Oil, spare parts,
tools
1)
Additional equipment (3
rd
driven axle line)
– Receptacle, approx. 20 l (5.0 gal); à p. 2 - 4.
s
M 12
Gear oil in
litres (gal)
Designation to
DIN 51502
Specification
Classification
GROVE part no.
Axle lines 2+5:
each 13.0 (3.5)
Axle lines 3:
14 (3.7)
Axle lines 4:
16.5 (4.4)
C - LPF MIL-L 2105 B
API-GL-5
Viscosity:
Hyp SAE 90
ISO - VG 220
00552891
for drive Designation Quantity GROVE part no.
10 x 6 x 10
Gasket 30 x 36 Cu DIN 7603
3 00117151
Gasket 24 x 29 Cu DIN 7603 2 00117145
Gasket 36 x 42 Cu DIN 7603 3 01371208
10 x 8 x 10
1)
Gasket 30 x 36 Cu DIN 7603 4 00117151
Gasket 24 x 29 Cu DIN 7603 2 00117145
Gasket 36 x 42 Cu DIN 7603 4 01371208
