Maintenance work on the carrier
7.15 Hydraulic system
7 - 106 3 302 746 en Maintenance manual
GMK5200-1
09.03.2018
7.15.6 Taking oil samples
Reducing the
interval
• Under difficult operating conditions – at tropical or very hot locations –
you must halve the oil change interval.
Spare parts and
tools
– A hose with a connecting piece for a gauge port.
– A sample container 0.3 l (0.08 gal).
– Receptacle, approx. 5 l (1.5 gal); à p. 2 - 4.
Prerequisites – The engine must be switched off and secured against unauthorised use;
à p. 2 - 3.
Select the
sampling location
To determine the usability of the oil, you must take a sample from the
hydraulic system. To do that you must connect the hose with the connecting
piece to a gauge port.

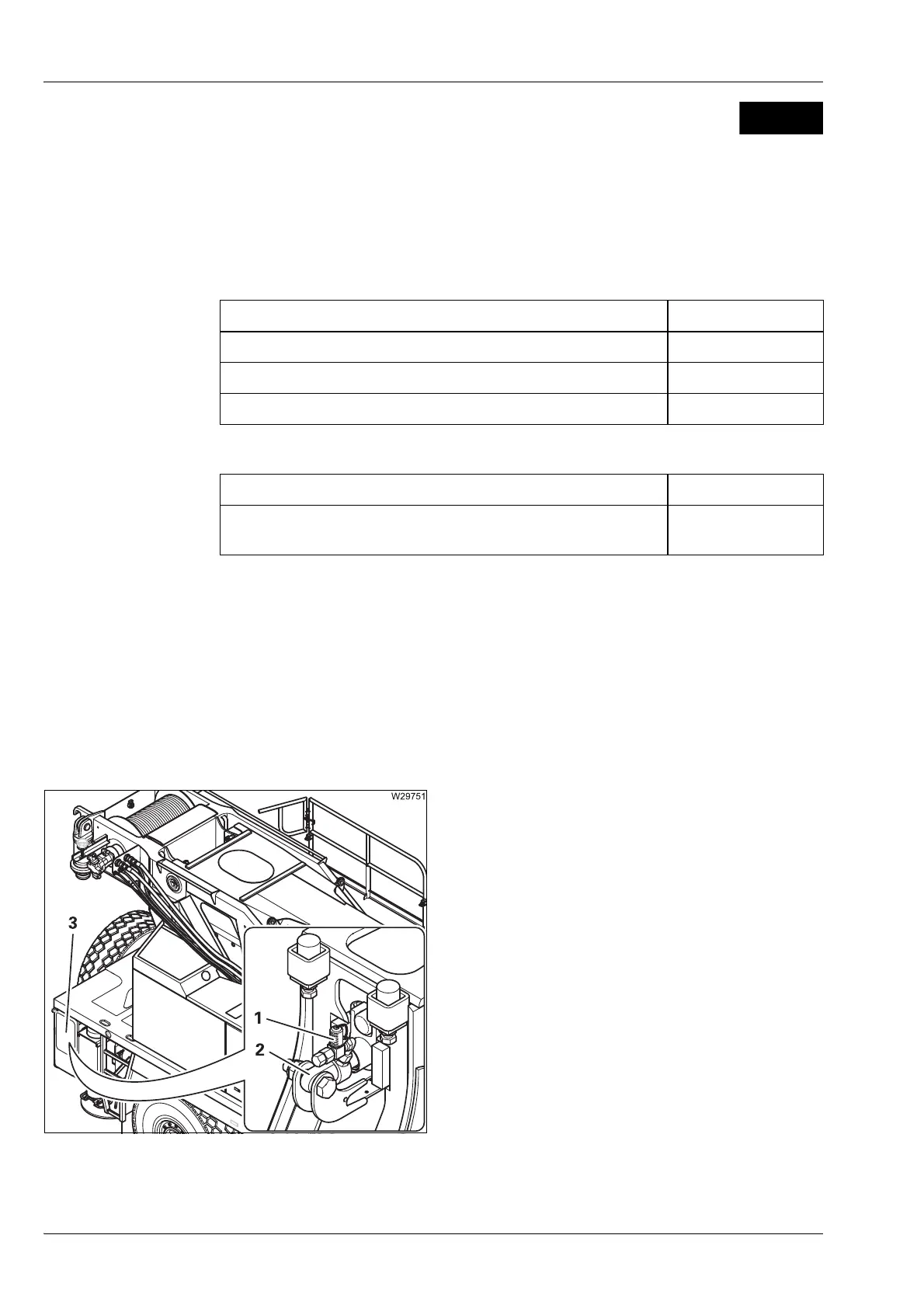

• Remove the cover (3).
The gauge port (1) is located on the cylin-
der (2) of the outrigger.
• Clean the gauge port before connecting the
hose.
Hose lengths GROVE part no.
1 m (3.3 ft) 01923003
2 m (6.6 ft) 00551941
4 m (13.2 ft) 01923139
GROVE part no.
A set of sample containers with protective mailing bag
and delivery note to the contracted laboratory
03141012
