Maintenance work on the superstructure
8.10 Central lubrication system
09.03.2018
Maintenance manual 3 302 746 en 8 - 69
GMK5200-1
8.10 Central lubrication system
8.10.1 Checking the level

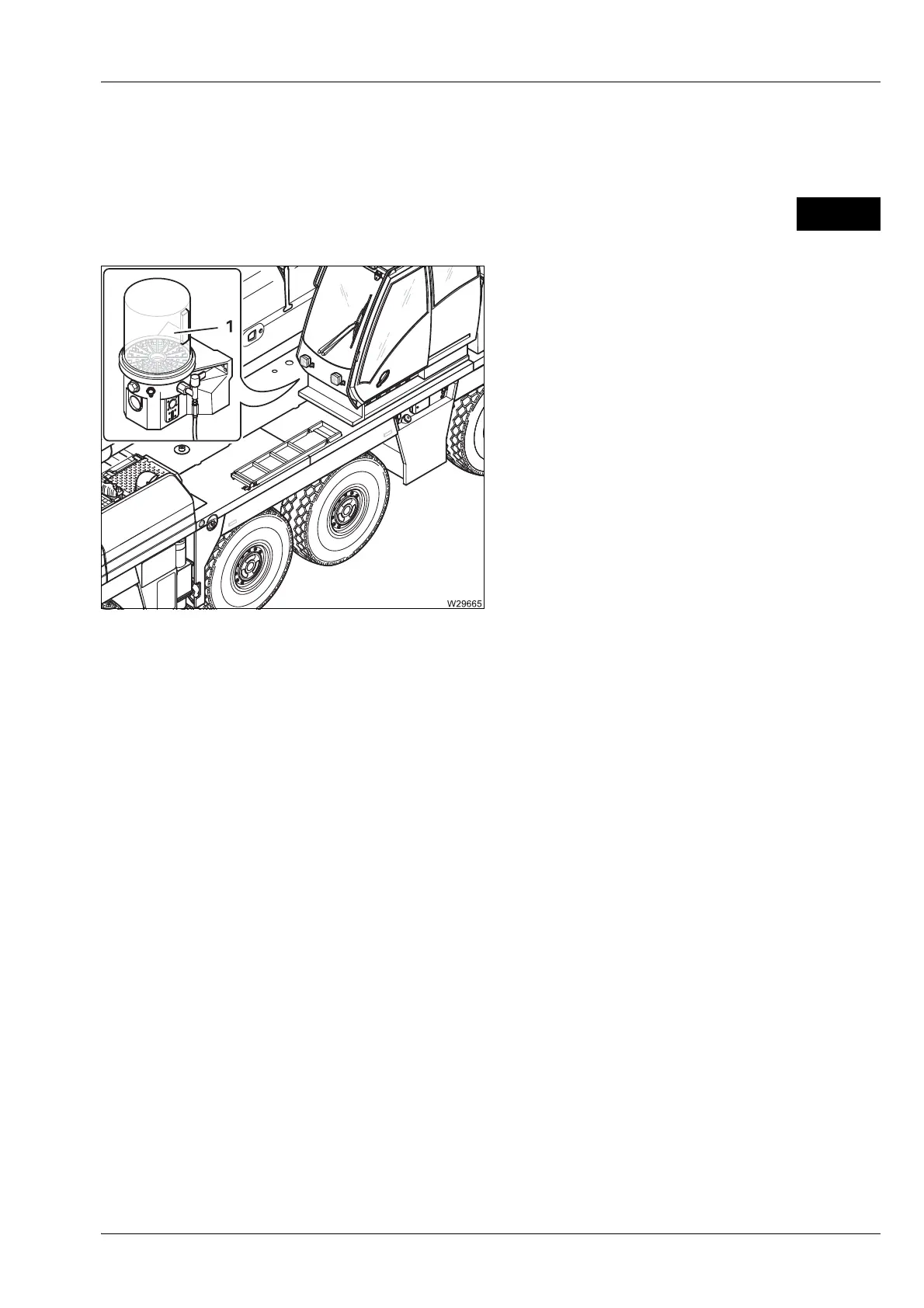

The maintenance of the pump (1) is similar to
the maintenance on the carrier;
à Central
lubrication system
, p. 7 - 119.
Connected lubricating points
– Main hoist drum,
– Auxiliary hoist drum,
– Slewing bearing,
– Telescopic unit – pivot pins,
– Derricking cylinder – pivot pins
W
