Maintenance work on the carrier
7.9 Axle lines
09.03.2018
Maintenance manual 3 302 746 en 7 - 69
GMK5200-1

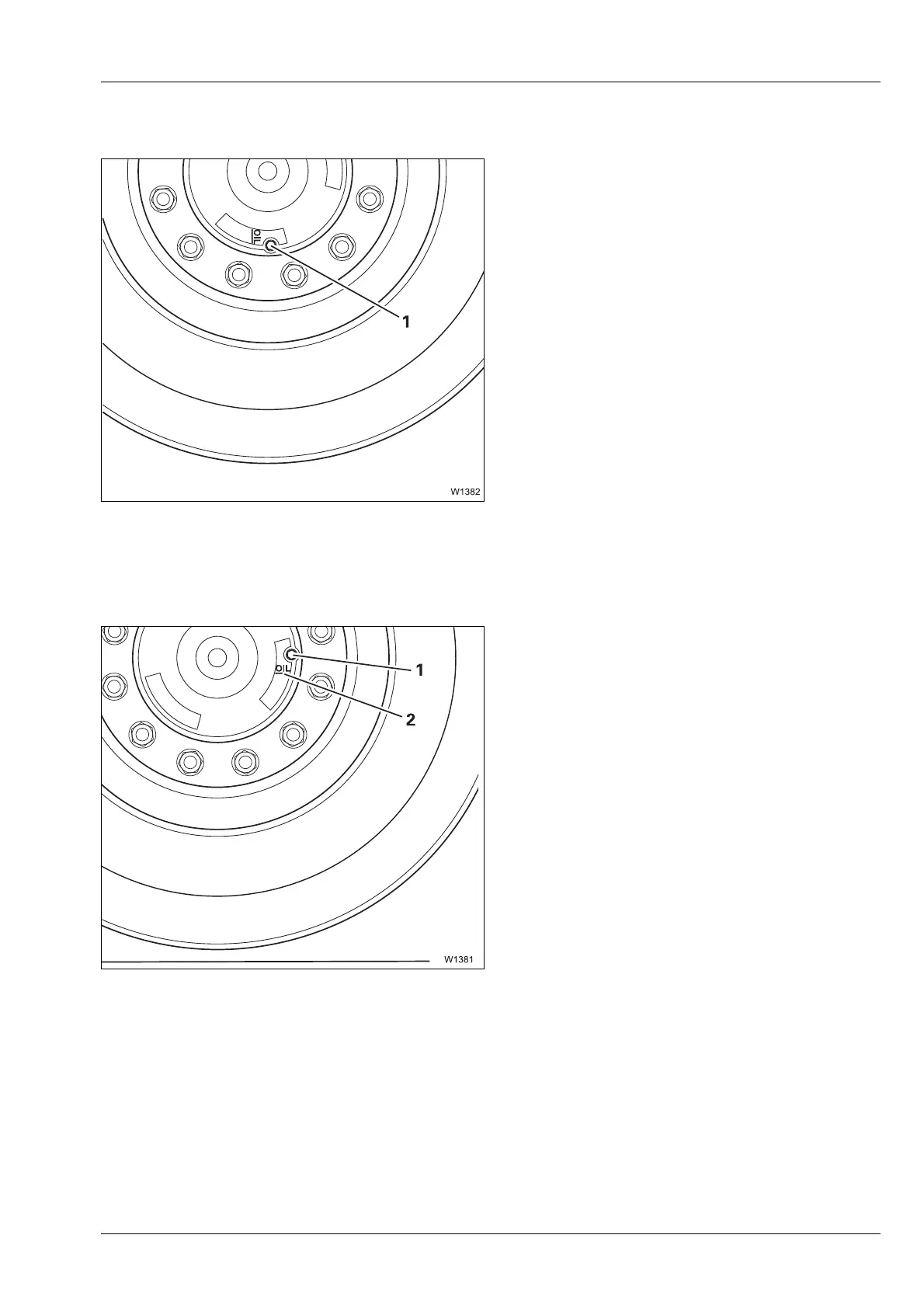

Draining oil
• Change the oil on all final drives in the same
way.
• Turn the wheel until the screw (1) is at the
bottom.
• Use a drain channel and place a receptacle
under the screw.
• Remove the screw and let the oil drain out.
Topping up the oil
• Turn the wheel until the mark (2) is horizon-
tal and is on the right, next to the centre of
the axle.
• Top up the oil through the opening.
• Fit a new gasket and tighten the drain
screw (1).
