Maintenance work on the superstructure
8.6 Hydraulic system
8 - 40 3 302 746 en Maintenance manual
GMK5200-1
09.03.2018

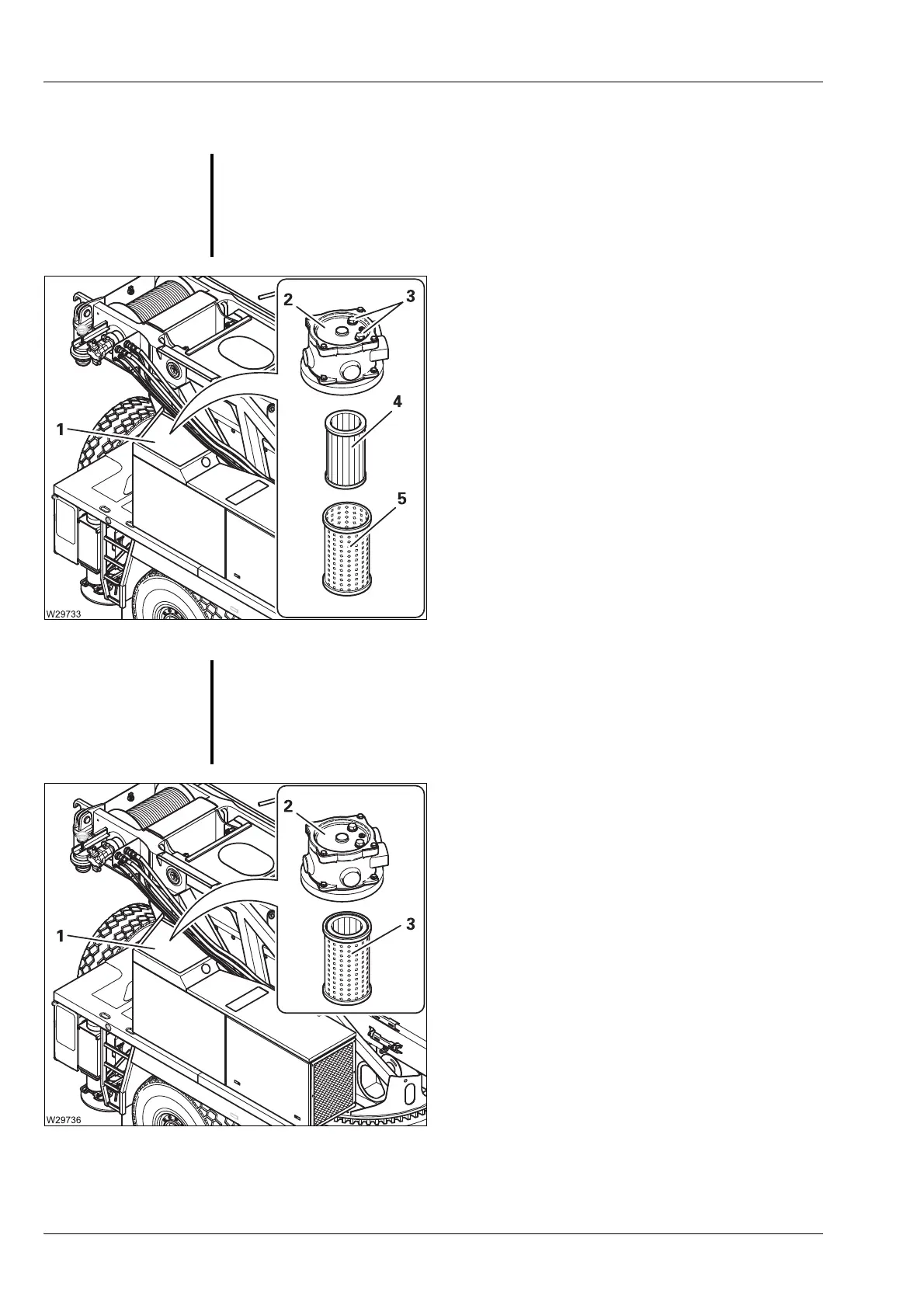

Changing oil
filter 1
• Remove the cover (1).
• Remove the cap (2) and pull out the hydrau-
lic oil filter.
• Place the filter in a receptacle.
• Remove the filter (4) from the filter cage (5).
• Clean the filter cage (5) and insert a new fil-
ter (4).
• Clean the magnetic rods 3).
• Replace any damaged parts, where neces-
sary.
• Assemble the filter (3) and insert it.
• Replace the cover gasket if necessary.
• Bolt the cap (2) on.
• Fasten the cover (1).
O
Risk of environmental damage due to leaking consumables.
Always let consumables drain into suitable receptacles. Wipe up any con-
sumables that have leaked.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
S
Risk of damage to the hydraulic system.
Large amounts of metal particles are a sign of damage in the hydraulic sys-
tem.
Have the hydraulic system checked by Manitowoc Crane Care or an author-
ised GROVE dealer or your qualified repair crew.
