RT530E-2 OPERATOR’S MANUAL SET-UP AND INSTALLATION PROCEDURES
9. Install the top left side attachment pin and retainer clip
into the upper anchor and attachment fittings of the
boom nose (Figure 4-9).
10. Extend the boom extension alignment jack until the
lower left side boom nose and boom extension adapter
lugs are aligned.
11. Install the bottom left side attachment pin and retainer
clip into the lower anchor and attachment fittings of the
boom nose.
12. Connect RCL cables:
a. Remove cable from boom extension.
b. Remove dummy plug from junction box on the boom
nose.
c. Install cable end connector from the boom
extension where dummy plug was removed
13. Release pressure on the boom extension alignment
jack.
NOTE: The hoist cable must be routed over the mast
assembly and under the roller on the mast for all
configurations.
14. Reeve the hoist cable. Refer to Cable Reeving in this
section.
DANGER
Do not modify the attachment points to permit the
installation of the attachment pins.
6717-5
Boom Nose
Boom Extension

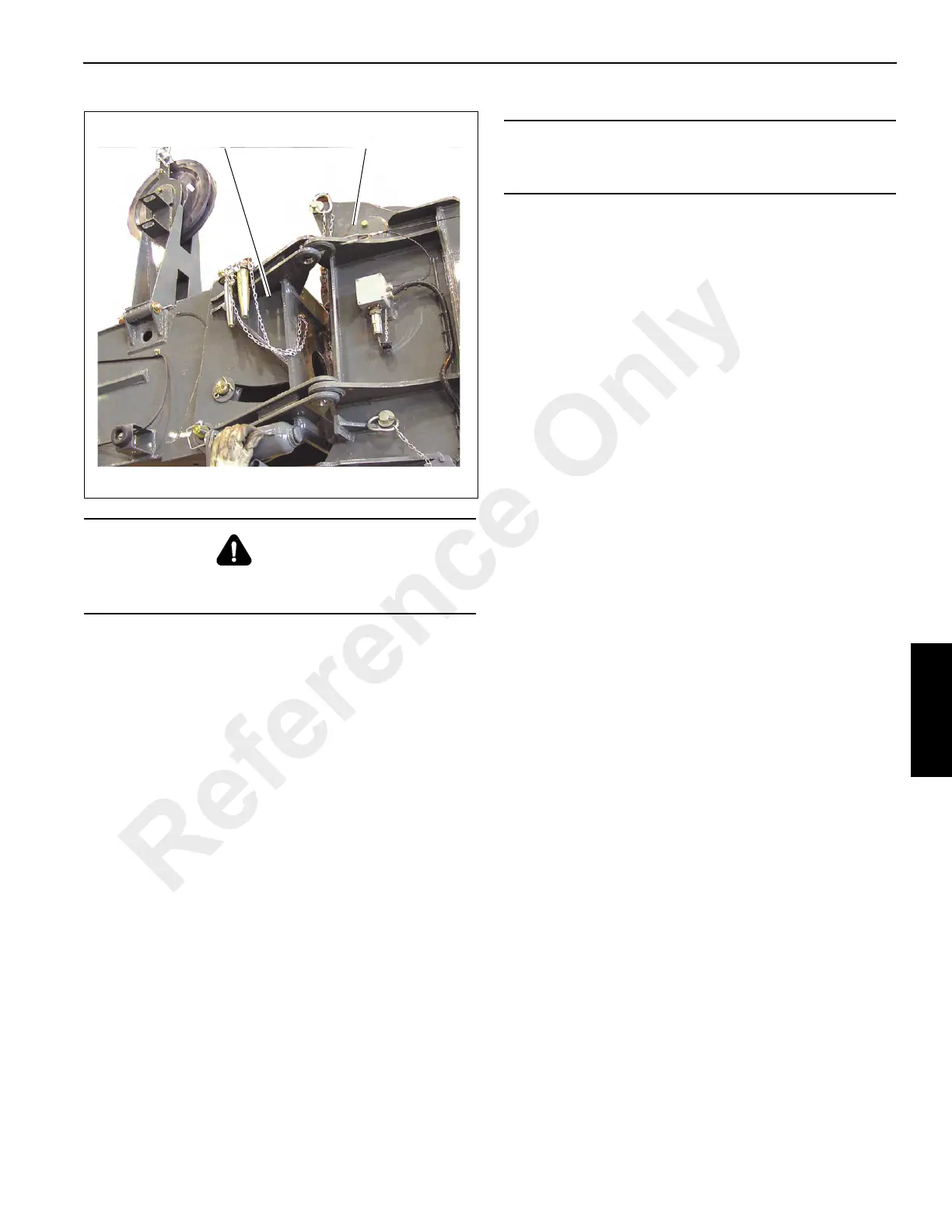

FIGURE 4-9
CAUTION
Do not place blocking under the boom extension sheave
wheel. Damage to the sheave wheel may occur.
