GROVE Published 1-20-2017, Control # 468-02 6-7
CD5515-2/YB5515-2 OPERATOR MANUAL MAINTENANCE
6
p1638

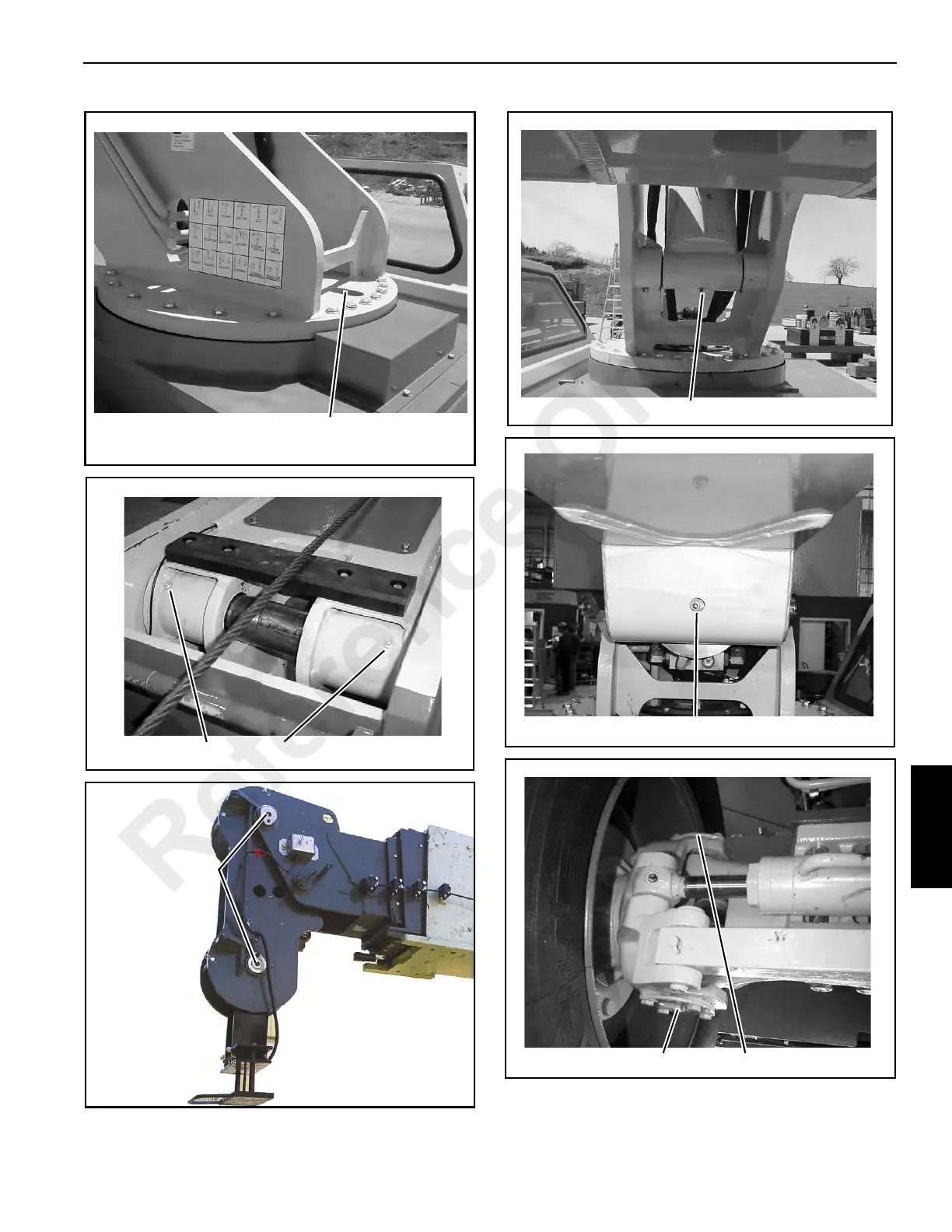

Mast Bearing Lubrication Point
Two Fittings Located On Inside Surface or Bearing Ring
FIGURE 6-1
p1663
Boom Pivot Lubrication Points
FIGURE 6-2
Boom Head Sheaves
and Pivot Lube Points
FIGURE 6-3
p1639
Lift Cylinder Pivots Lube Points (Base End)
FIGURE 6-4
p1664
Lift Cylinder Pivots Lube Point (Rod End)
FIGURE 6-5
p0417
Steering Knuckle Lube Points (Front Axle)
FIGURE 6-6
