MOUNTING CONFIGURATIONS
The Series 800D is a versatile machine and its versatility can
be enhanced by the manner in which it is mounted. Following
is a brief description of the mounting configurations and the
advantages of each. The minimum weights listed below the
front and rear axles for each configuration are estimated
minimum front and rear axle weights for an 85% stability
factor before the crane, stabilizers and subbase, if required,
are installed on the chassis. Truck chassis that do not meet
these minimum stability weights may require counterweight.
These weights include the permanently attached equipment
on the chassis, such as pumps, PTO’s, reinforcing, chassis
mounted options, bed and counterweight. Before placing this
unit in service, a final stability check as outlined in this
section must be performed. The maximum weights listed
below the front and rear axles for each configuration are
estimated maximum front and rear axle weights for not
exceeding axle capacities before the crane, stabilizers, and
subbase, if required, are installed on the chassis.
Configuration 1 — 8100D
This configuration allows the installation of the Series 8100D
on a chassis by using the sub-base for a 22 ft bed. In most
cases, the chassis will not require reinforcing.
Requires 16,000 lb (7257 kg) GAWRF, 34,000 lb (15 422 kg)
GAWRR, 50,000 lb (22 679 kg) GVWR, RSOD rear
stabilizers and sub-base for 22 ft bed. Full capacity work
area is rear 180° of vehicle from outrigger to outrigger. Truck
frame must have or be capable of being reinforced to
15.9 in
3
S.M. (260 cm
3
) and 1,749,000 lb-in (197 610 Nm)
RBM under the crane, spring hang Oerto spring hanger.
*Actual scale weights prior to installation of crane, sub-base
and stabilizers.
**If the distance from the front bumper (SFO) to center of
rotation exceeds 144 in (366 cm), the 40 ft (12.19 m) overall
truck length restriction will be exceeded. Overall length
restrictions vary from state to state. In some states it is legal
to be more than 40 ft (12.19 m) in length and some states
allow overlength permits.

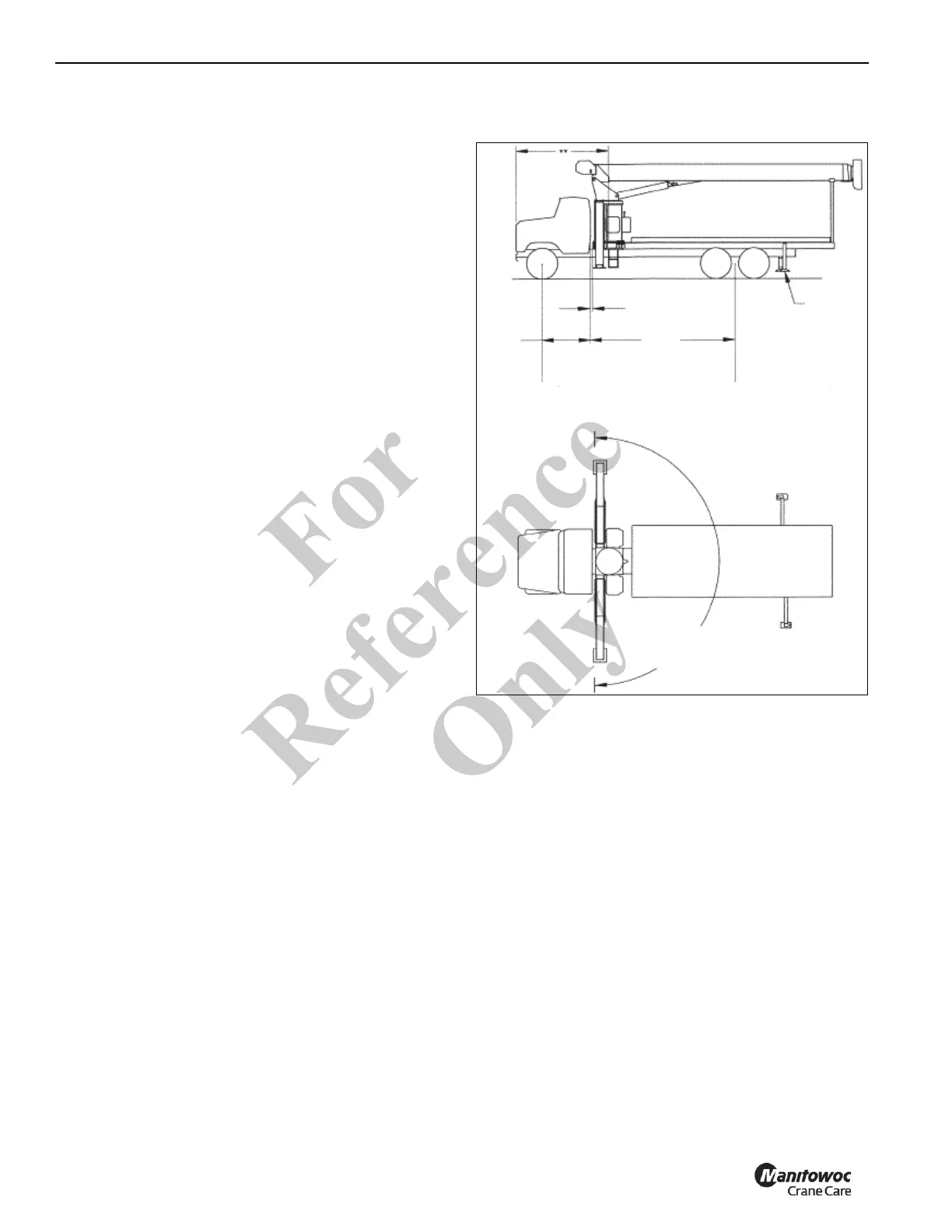

Configuration 2 — 8100D
This mount requires front stabilizer for full capacity 360°
around the truck. Front stabilizer gives the machine a solid
base helping the operator control loads.
RSOD
3 in (76 mm) MIN
192 in
(4876 mm)
MIN
*9100 lb
(4128 kg)
*8500 lb
(3856 kg)
64 in
(1625 mm)
MIN
180°
FULL CAPACITY
WORK AREA
