Hoist Gearbox Oil
Hoist Gearbox Oil Change
Gearbox oil is drained by first removing the drain plug (33,
Figure 11-2) by rotating the drum so that the plug is visible
through the lower hole in the side plate (See view 1). Screw
in a piece of 1 in pipe to allow the oil to drain, and then with a
hex wrench remove the drain plug located inside of the 1 in
pipe (See view 2). Examine the used oil for signs of
significant metal deposits and then dispose of it in a proper
manner. Remove the 1 in pipe.
Rotate the drum so that the port is visible through the upper
hole in the side plate. Install a 1 in pipe with elbow into the
upper hole in the side plate (See view 3). Fill the gearbox
with 1.42 liters (1.50 quarts) of EP-90 oil. Remove the pipe
and elbow, then replace the plug (33).
For information about changing hoist brake oil, see Drain /
Add New Hoist Brake Oil, page 11-5. See Recommended
Oil, page 11-6 for recommended oil type and grade for your
application.
RECOMMENDED OIL
NOTE: All oils must meet MIL-PRF2105E. Substitution
from a reputable manufacturer is allowed as long
as type and grade are maintained.
PLANETARY HOIST/SWING GEARING
PREVAILING AMBIENT TEMPERATURE
SAE 90W AGMA 4 EP
MOBIL SHC 75W90
SAE 20W20
MOBIL 1 SYNTHETIC ATF
MOBIL SHC 524
PLANETARY HOIST/SWING BRAKE
PREVAILING AMBIENT TEMPERATURE

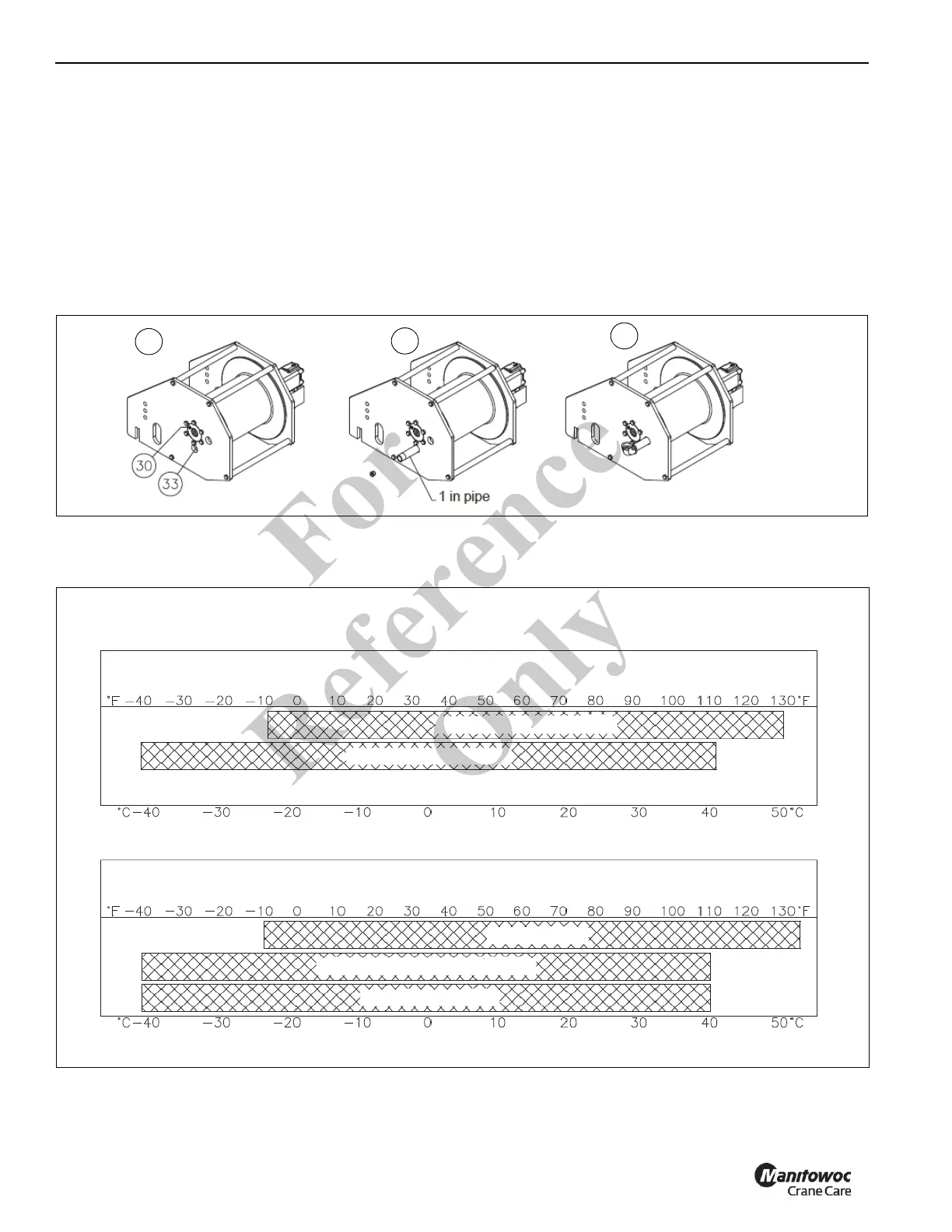

FIGURE 11-3
