© 2019 Mannayan GmbH + Co KG Page 12 User Manual Trikombin
Please note: in principle, every frequency output has TWO signals. One signal (“hot” signal)
carries the actual information. It is connected on the brass cup, the left banana sockets, as
well as on the inner pin of the BNC socket. The second signal (“cold” signal) is used as
reference and is connected on the outer pin of the BNC socket.
4.4 Connecting the Antenna
Please verify if the power outlet is suitably earthed with the supplied power outlet test
instrument. Only if that is ensured, take one of the two supplied earthing cables. Please
FIRST insert the banana plug into the earth socket of the Antenna. THEN insert the Schuko
plug into a suitable power outlet.

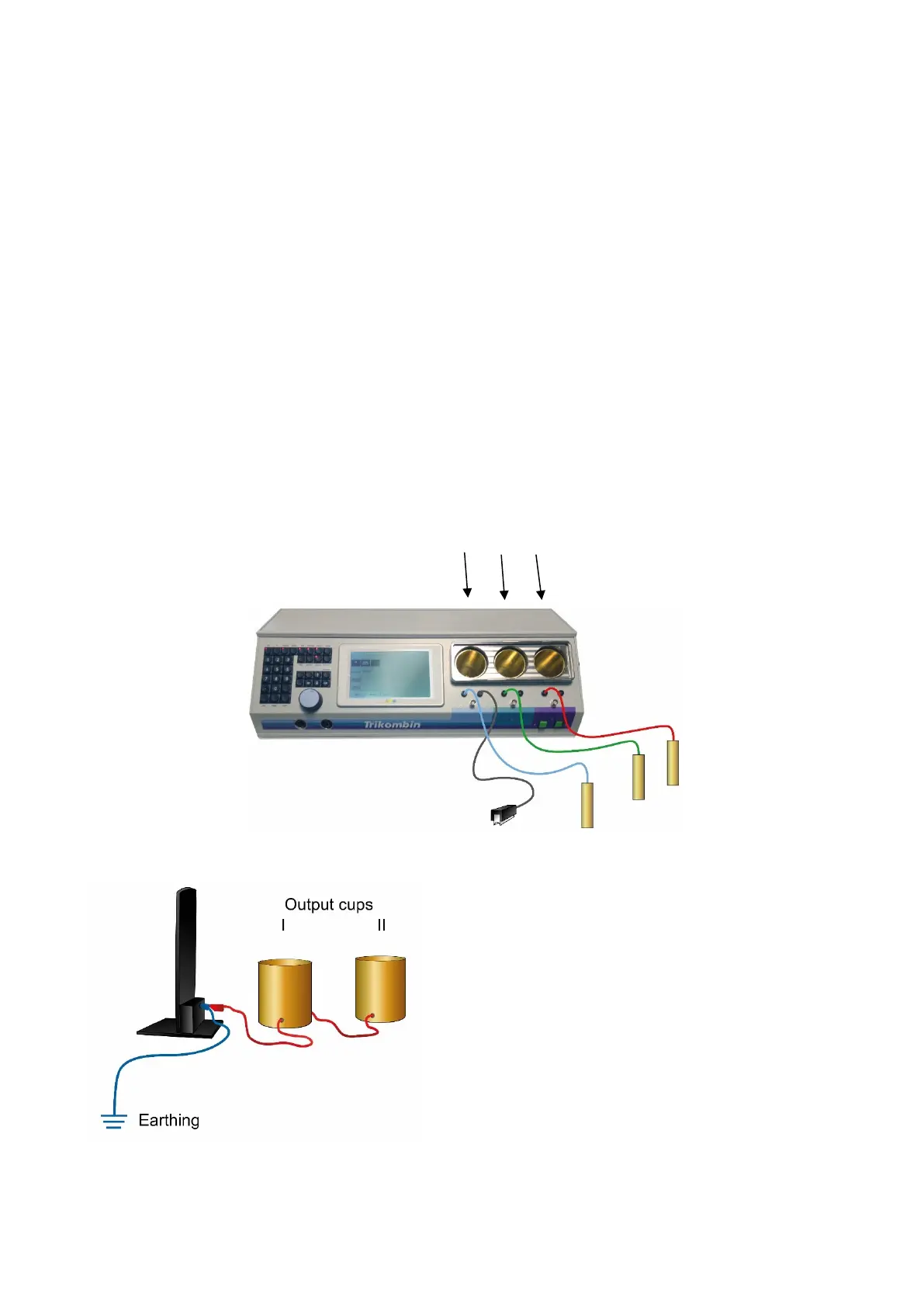

4.5 Connecting the Electrode Cables
Insert the banana plugs of the coloured cables each in the LEFT socket of the Trikombin
and the other end in the supplied hand electrode.
An optional available ampoule tapper is connected via a random cable with a banana plug
on the blue socket on the RIGHT side.
4.6 Connecting Output Brass Cups
Optional available output cups are connected
after the antenna. The banana plug is inserted on
the back side of the antenna into the earthing
cable.
Attention: If the cups are attached between
the Antenna and the earthing cable a loss of
efficiency of the antenna is caused!
