Manusa VECTOR User Manual

11
D00619EN - v0 SWING OPERATOR - INSTALLATION MANUAL
4.3 Electrical Pre-Installation Requirements
Assembling a automatic door requires an electrical pre-installation with a 6A double-pole magneto-thermal switch,
and it must comply with the cable sections specified below:
Current Input:
- 16mm corrugated tube.
- 3 cables 1.5mm
2
section: phase + neutral + earth.
1
2

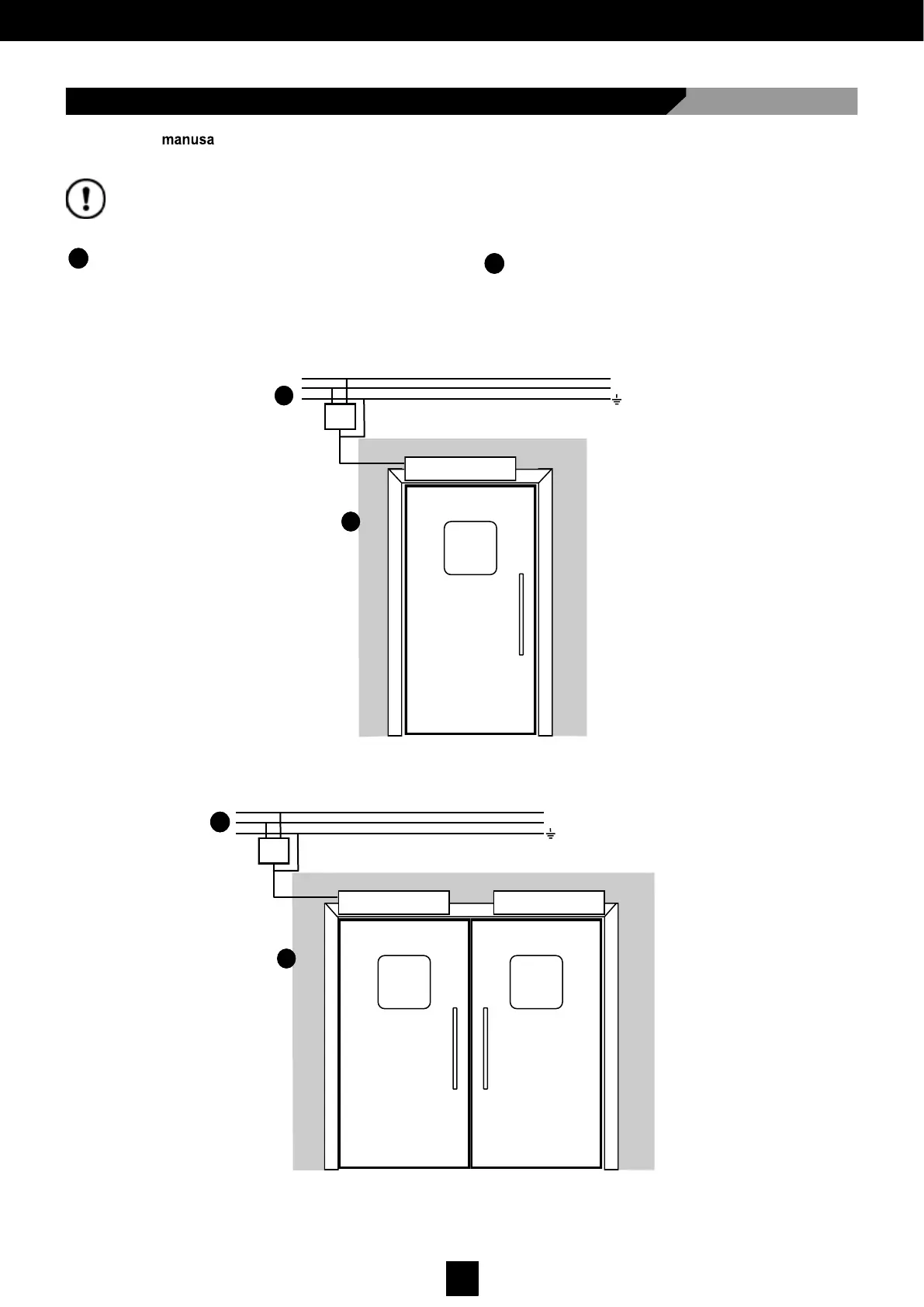

The diagram shows the standard wiring for the elements that the operator includes as standard.
4A
F
N
Monofásico / Single-phase / Monophasé = 220V - 240V ±6%
2
1
Radars:
- Cables supplied with the accessory.
1
6A
F
N
Monofásico / Single-phase / Monophasé = 220V - 240V ±6%
2
MASTER SLAVE
1
