D00619EN - v0 SWING OPERATOR - INSTALLATION MANUAL
5.9
B

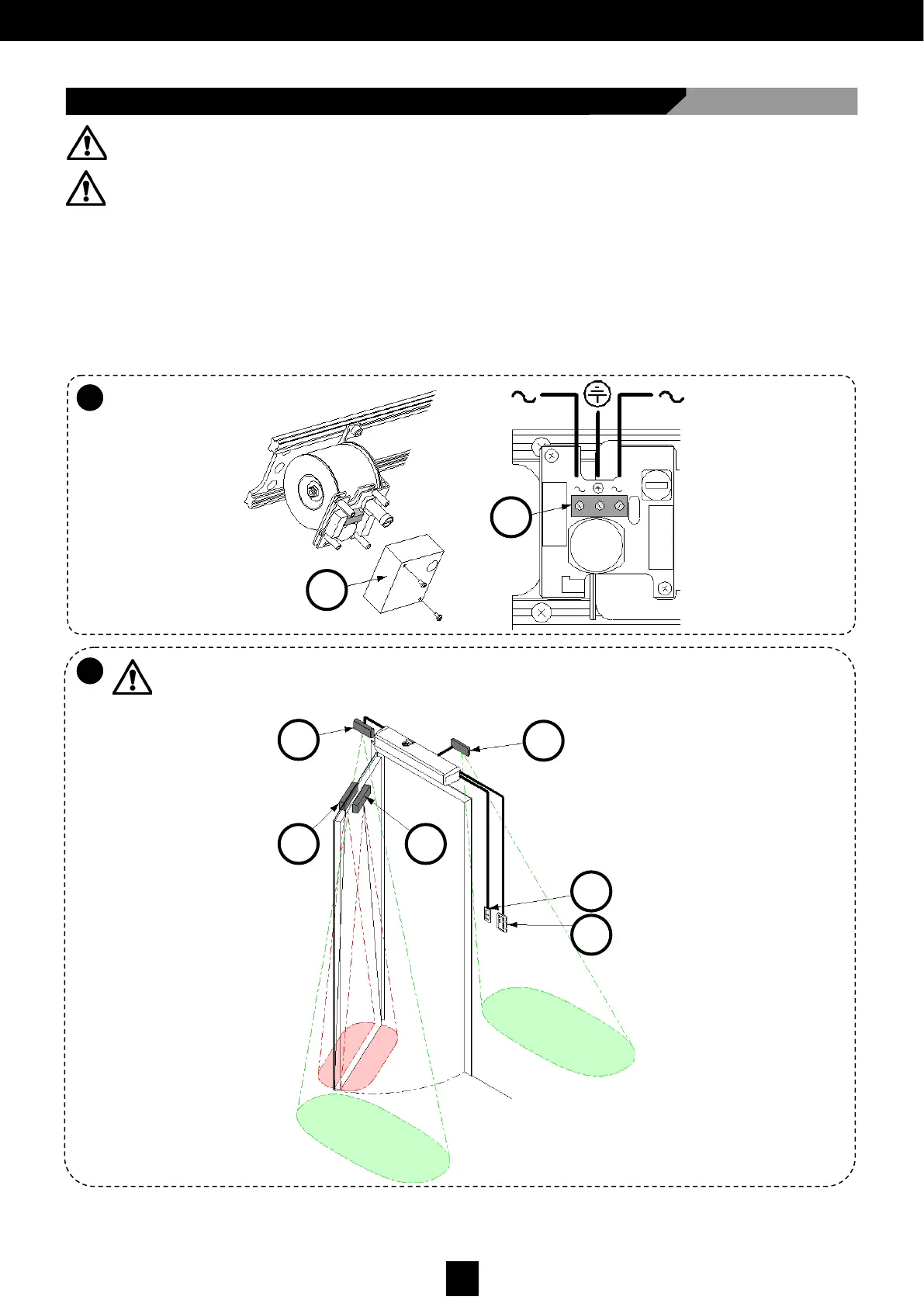

5.9 Connecting to the Power Supply
• Route the power cable to the interior of the operator without damaging it on any metallic edges.
• Open the cover (Fig.20 Part A).
• Connect the mains power supply and earth outlet cable on the terminal plates as shown in (Fig. 20 Part B).
• Replace the cover (Fig. 20 Part A).
WARNING: Do not invert the power supply and earth cables.
It has to be possible to section the power from the mains junction box using a two-pole switch
(see Fig. 21 E) with a 3mm minimum contact opening (not supplied).
WARNING: All the connection operations on the card terminal plates or the peripheral devices should be made with
the power disconnected to avoid irreversible electrical damage.
WARNING: Before continuing further operations, ensure that it is disconnected from the mains. Before connecting the
unit to the power supply, carry out the controls detailed the section ‘Commissioning’.
Fig. 20.
Fig. 21.
5.9
A
A
B
A B
C
D
E
F
