D00619EN - v0 SWING OPERATOR - INSTALLATION MANUAL
The manusa VECTOR swing operator offers high-end kinematic performance in the industry:
OPERATING LIMITS
10 years
ELECTRICAL FEATURES
Power supply
230 V 50Hz—110 V 60 Hz
Nominal power
85W
Max. output shaft torque
45Nm
Power supply to external devices
15VDC—12W Max.
Operating temperature
De -10°C a 50°C
Servicing
Continuous
APPLICABLE STANDARDS
Low Voltage
2014/35/CE
Electromagnetic Compatibility
2014/30/CE
Construction Products
2011/305/CE
Machine Safety
2006/42/CE
Automatic Door Use Safety:
EN 16005
MECHANICAL FEATURES
Dimensions (Height x Width x Length) (Fig.1)
89x130x675mm (1 leaf) 89x130x2800mm
(max. 2 leaves)
Maximum leaf weight
250 Kg (See fig.2)
Opening time
3s (70°/s) ÷ 6s (20°/s)
Closing time
4s (40°/s) ÷ 15s (10°/s)
Closing force (second in 1154)
EN4 ÷ EN6 (See fig.18)
Maximum opening angle
110º
Width of the door leaf
700 ÷ 1400mm
Anti-crushing protection
Automatically limits force when obstacles are present
Weight
Approx. 11kg.
Degree of protection
IP40

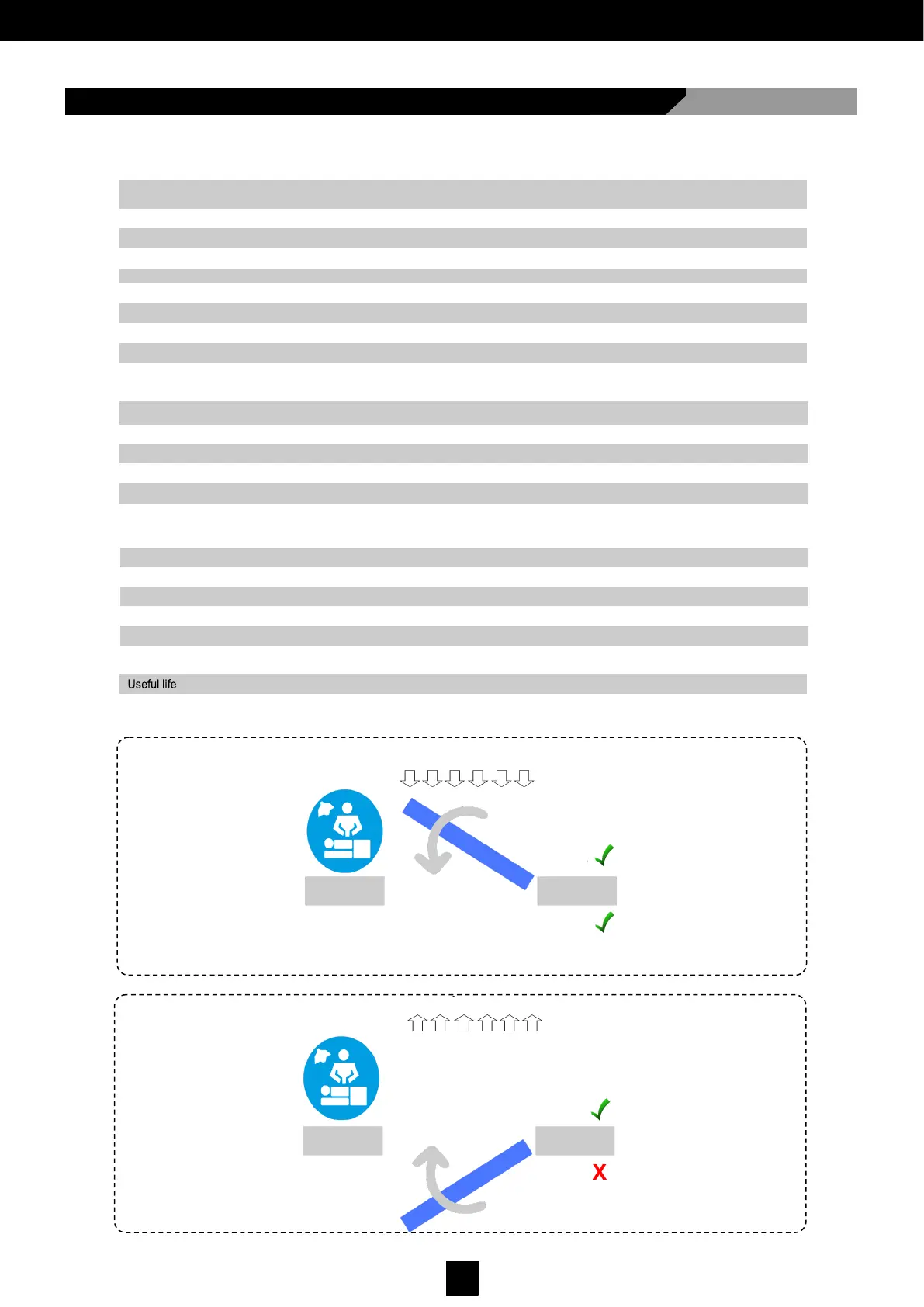

3.2 Technical Specifications
Up to +35Pa
Up to +30Pa
X
Up to –100Pa
It does not open from –10Pa
WORKING PRESSURES
NEGATIVE PRESSURE -
POSITIVE PRESSURE +
Dragging
Pushing
Dragging
Pushing
