34
D00619EN - v0 SWING OPERATOR - INSTALLATION MANUAL
TYPE
PAR. VALUE OPERATION
5 - ELECTRONIC
LOCK WITH AU-
TOMATIC RESET
10 5

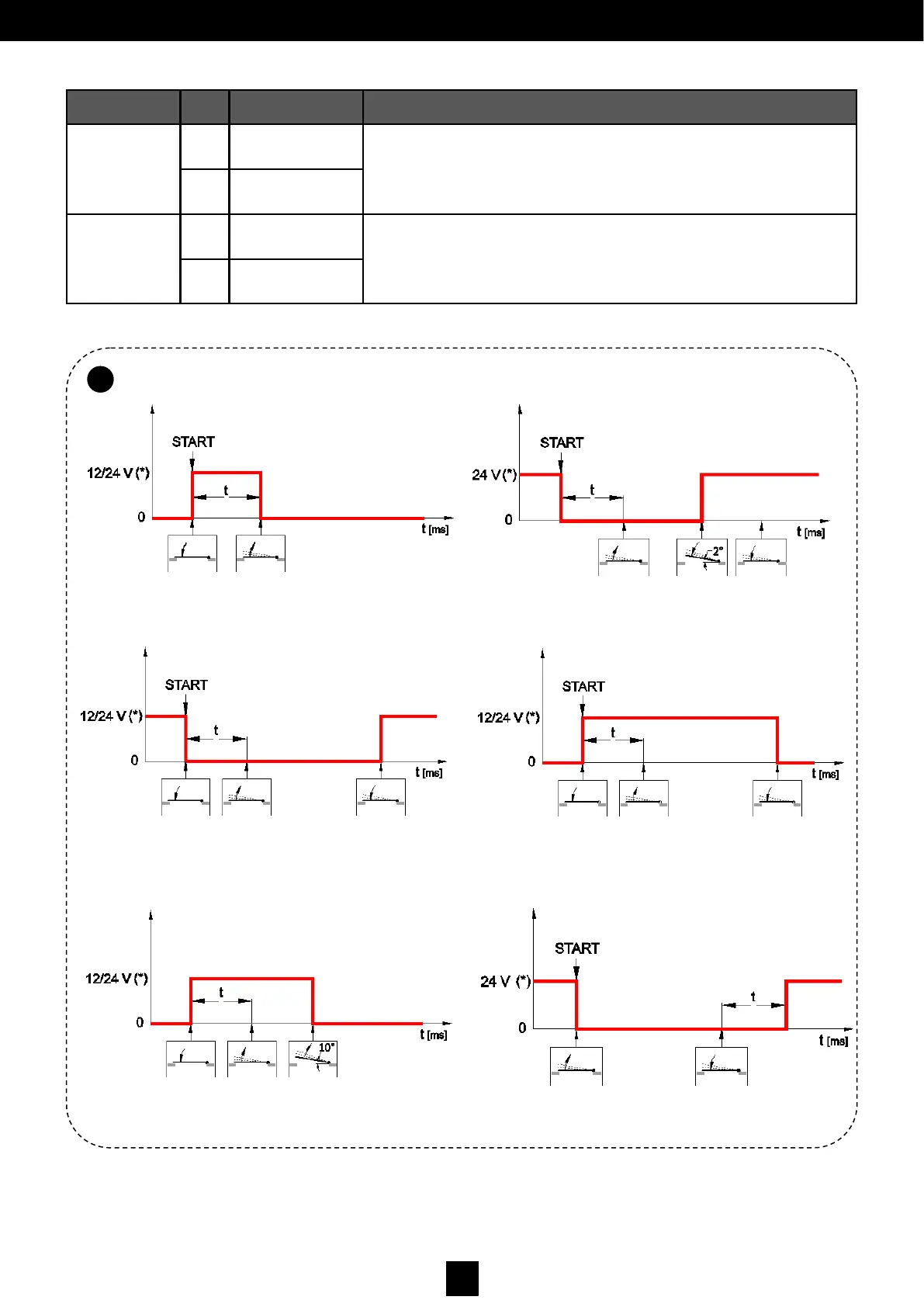

See Fig. 32 - Electronic lock which, when powered, frees the leaf to move.
It resets by cutting power to the lock when the leaf opens more than 10°.
It requires a door jolt freeing device in order to make it easier to unlock
the leaf.
11
RANGE: 0÷9
[t=100÷1000 ms]
6 - ELECTRO-
MAGNETIC
(MAGLOCK)
WITH DELAY
10 6
See Fig. 33 - A magnet that, when powered, keeps the door locked closed
and, when disconnected, frees it to move. It does not require a door jolt free-
ing device. The magnet is powered again after the leaf is completely closed.
11
RANGE: 0÷9
[t=200÷2000 ms]
6.2
A
Fig. 30.
Fig. 31.
Fig. 32.
Fig. 33.
Fig. 28.
Fig. 29.
