Marantz NR1504 - Page 15

15
Appendix
TipsSettingsPlaybackConnections
Contents

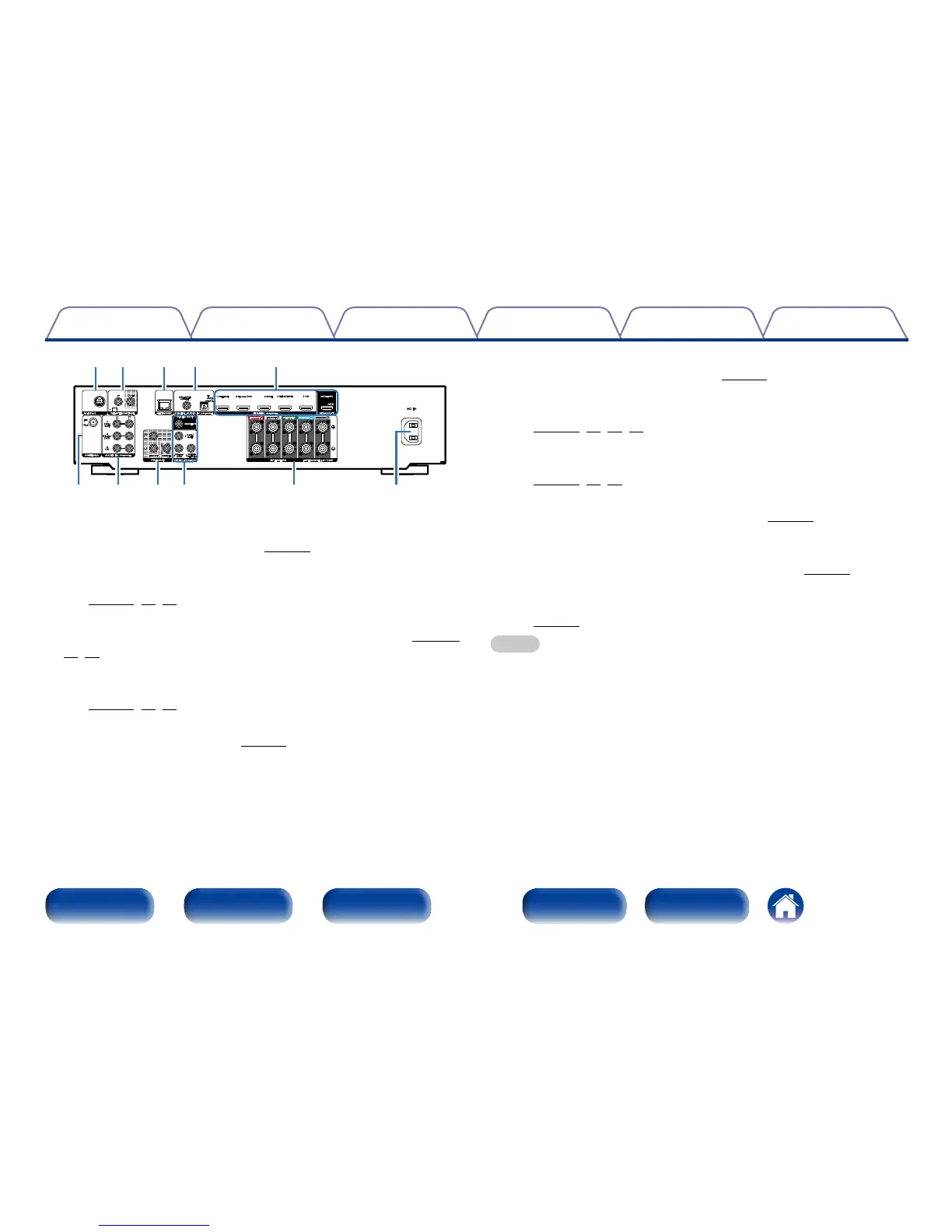

Front panel Display Rear panel IndexRemote
q FM antenna terminals (ANTENNA)
Used to connect FM antennas (vpage36).
w Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors
(vpage25, 31, 32).
e PRE OUT connectors
Used to connect a subwoofer with a built-in amplifier (vpage 22,
24, 25).
r Video connectors (VIDEO)
Used to connect devices equipped with video connectors
(vpage29, 31, 32).
t Speaker terminals (SPEAKERS)
Used to connect speakers (vpage21).
y AC inlet (AC IN)
Used to connect the power cord (vpage42).
u HDMI connectors
Used to connect devices equipped with HDMI connectors
(vpage27, 28, 31, 32).
i Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors
(vpage28, 29, 31).
o Network connector (NETWORK)
Used to connect this unit to the network (vpage37).
Q0 REMOTE CONTROL connectors
Used to connect infrared receivers/transmitters in order to operate this
unit and external devices from a dierent room (vpage40).
Q1 M-XPort connector
Used to connect to a wireless receiver (RX101, sold separately)
(vpage39).
NOTE
•Do not touch the inner pins of the connectors on the rear panel. Electrostatic
discharge may cause permanent damage to the unit.
q w e r t y
Q1 iQ0 o u
