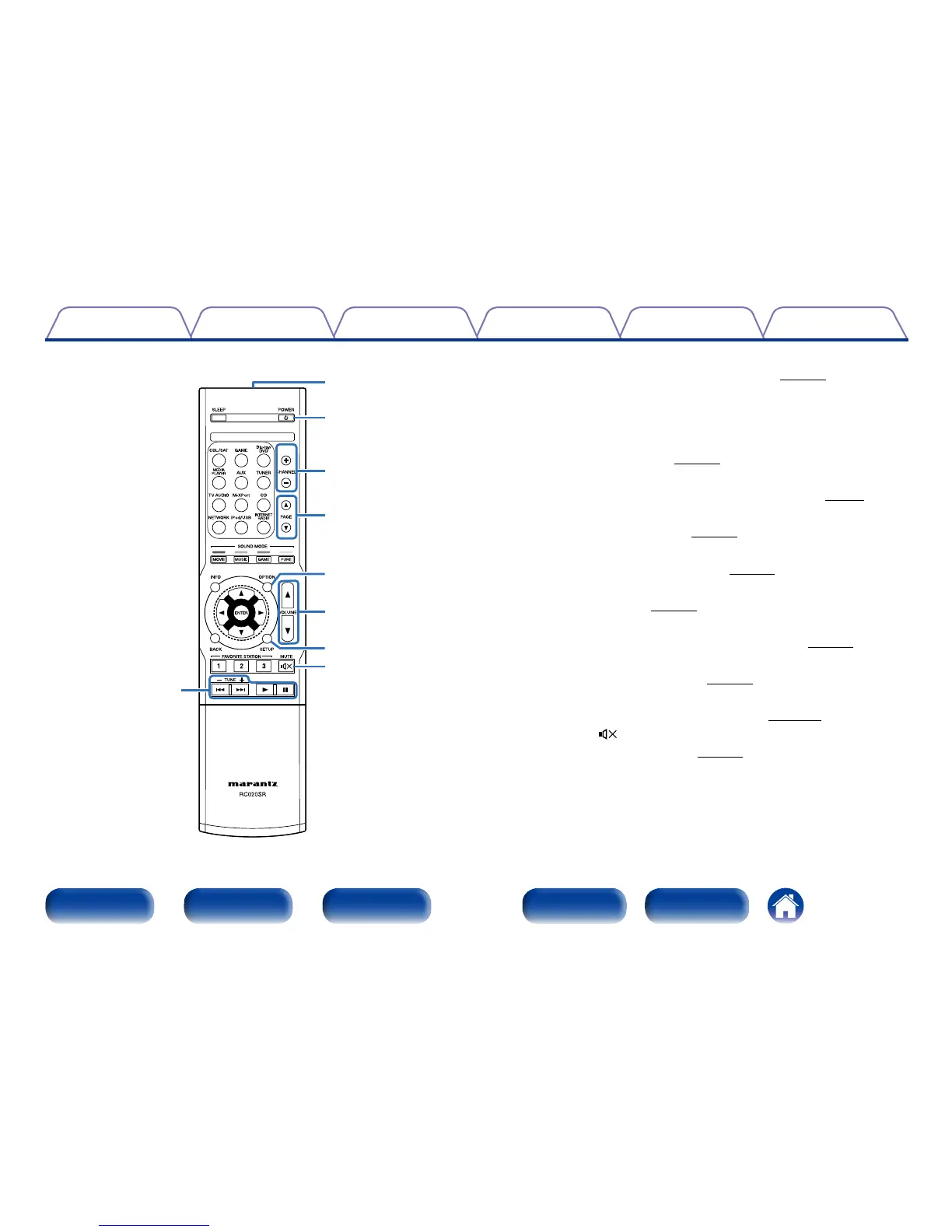

o System buttons
These perform playback related operations (vpage46).
•Skip buttons (8, 9)
•Play button (1)
•Pause button (3)
Tuning up / Tuning down buttons (TUNE +, –)
These operate the tuner (vpage54).
Q0 Remote control signal transmitter
This transmits signals from the remote control unit (vpage7).
Q1 POWER button (X)
This turns the power on/o (vpage44).
Q2 Channel buttons (CHANNEL +, –)
These select preset radio stations (vpage58).
Q3 Page search buttons (PAGE df)
These switch pages (vpage48).
Q4 OPTION button
This displays the option menu on the TV screen (vpage88).
Q5 VOLUME buttons (df)
These adjust the volume level (vpage45).
Q6 SETUP button
This displays the menu on the TV screen (vpage118).
Q7 MUTE button ( )
This mutes the output audio (vpage45).
Q5
Q7
Q3
Q2
Q1
Q4
Q6
Q0
o
