Marantz PM-11S3 Service Manual

10
CAUTIONS IN SERVICING

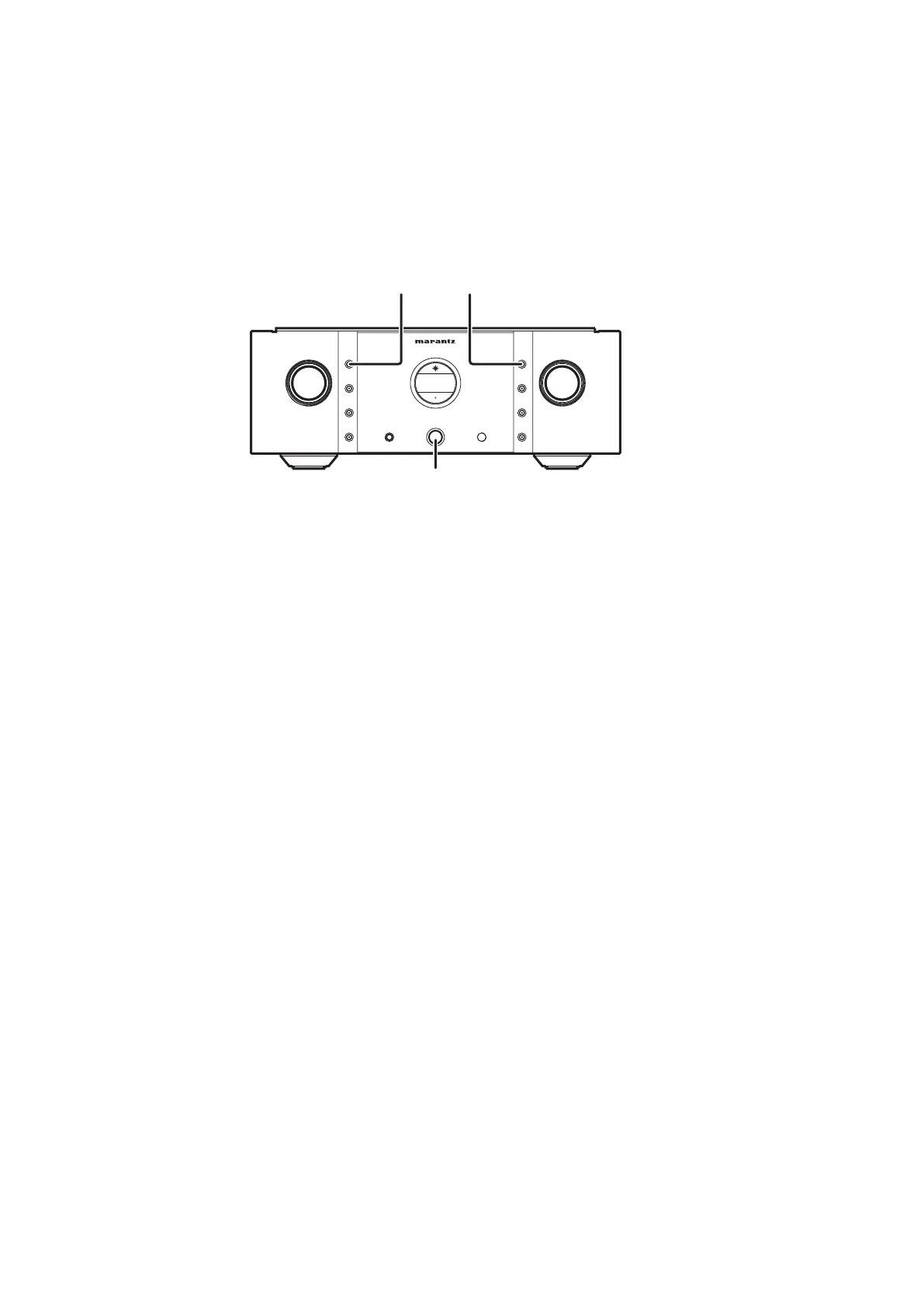

Initializing INTEGRATED AMPLIFIER
INTEGRATED AMPLIFIER initialization should be performed when the μcom and peripheral parts of μcom were replaced.
1. Turn off the power pressing
X
ON/OFF button.
2. Press
X
ON/OFF button while simultaneously while pressing DISPLAY button and ATT buttons.
3. Check the set entered the service mode.(Refer to "SERVICE MODE"(11 page).)
The layout of this amplier is well concerned for sound quality.
1. When screws and washers are removed, those parts mustbe set to the same places.
2. When wires are removed, the wires must be installed in the same roots, same places.
3. Do not hold the side panel (013D) to move the unit when the unit is disassembled.
X ON/OFF
PHONES
VOLUME
A
TONE
SPEAKERS
B
SPEAKERS
PRE OUT
ATT
MC
STANDBY
PHONO
IN
P.DIRECT
DISPLAY
SELECTOR
INPUT
INTEGRARED AMPLIFIER PM-11S3
DISPLAY ATT
X
ON/OFF
