Marantz PM-11S3 Service Manual

23
P.DIRECT IN
CD, LINE, REC
PHONO
Tone Amp
±8.0dB
PRE OUT
+
-
BALANCE
0dB
+12.0dB
+39.0dB (MM)
+59.0dB (MC)
-6.0dB
REC OUT
0dB
+15.5dB
Phono Amp
Balance Amp
P.Direct Amp
Volume Amp
+14.0dB
Voltage Amp
+12.7dB
Power Buffer
HP OUT
SPK OUT
Pre Out Buffer
-11.0dB
CD, LINE, REC 240mV
REC OUT 240mV
BALANCE 480mV
PHONO MM 2.8mV
PHONO MC 0.27mV
P.DIRECT IN 1.7V
SPK OUT 28.28V
(8ohms, 100W)
PRE OUT 1.8V
+12.0dB
-6.0dB
+59.0dB
+39.0dB
+15.5dB
+14.0dB
+12.7dB
-11.0dB
Tone
±8.0dB
Volume Setting
0dB (MAX)
Rec Out Buffer
Input Buffer
HP OUT 2.3V (32ohms)
-21.0dB

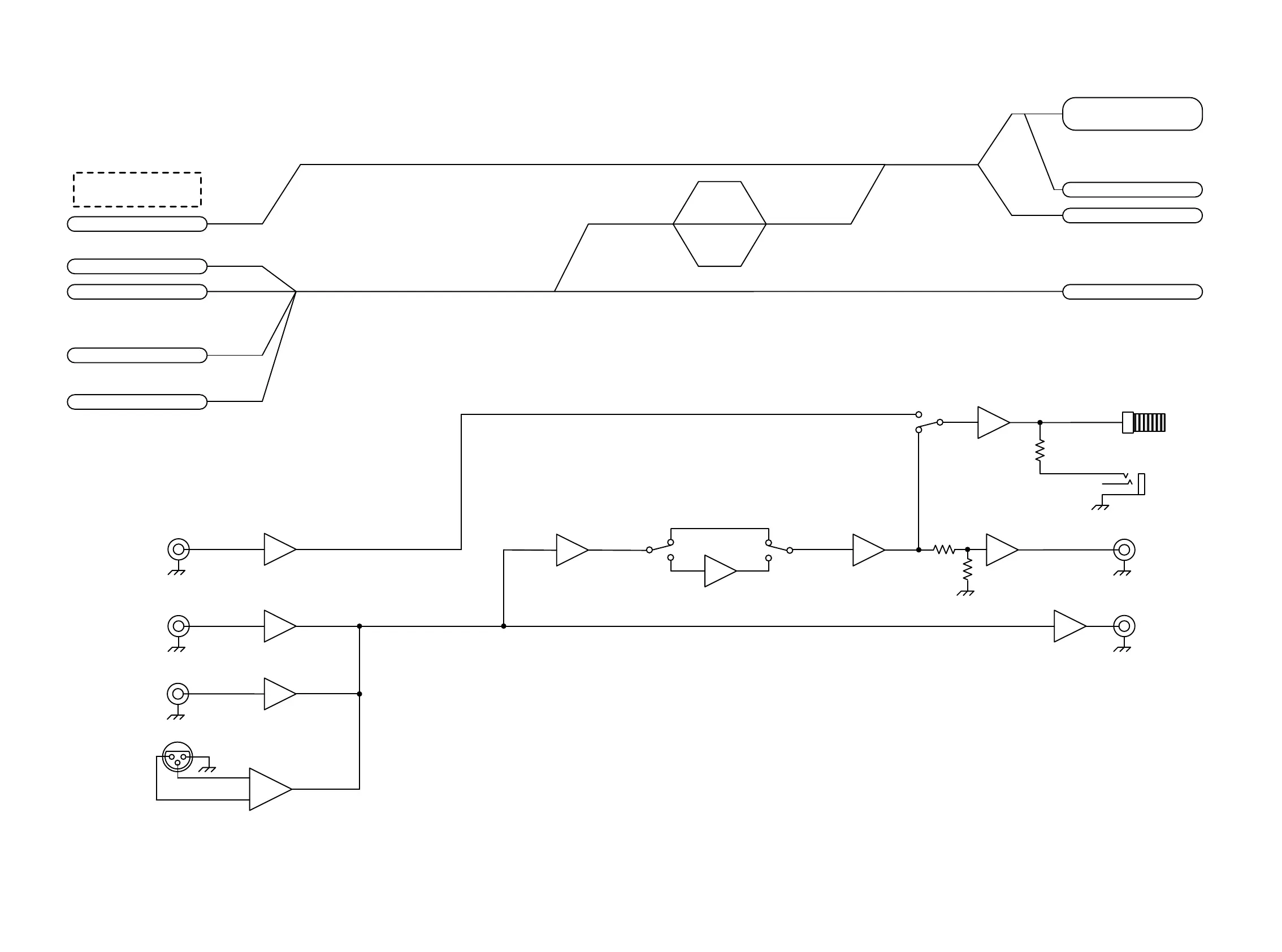

LEVEL DIAGRAM

Marantz PM-11S3 Specifications

General

Damping factor	100
Amplifier class	-
Frequency range	5 - 100000 Hz
Input sensitivity	240 mV
Audio output channels	2.0 channels
Peak power per channel	200 W
Signal-to-Noise Ratio (SNR)	96 dB
Total Harmonic Distortion (THD)	0.01 %
Dynamic power per channel (8 Ohm)	100 W
XLR in	Yes
Headphone outputs	1
Line inputs (RCA)	2
Headphone connectivity	6.3 mm
Speakers connectivity type	Clamp terminals
Material	Metal
Cooling type	Passive
Product color	Black, Gold
Volume control	Rotary
Connectivity technology	Wired
Power consumption (standby)	0.3 W
Power consumption (typical)	300 W

Weight and Dimensions

Depth	449 mm
Width	440 mm
Height	168 mm
Weight	27000 g
