Marantz PM-11S3 Service Manual

9
TECHNICAL SPECIFICATIONS
• RMS Power output: 100 W × 2 (8 Ω)
(20 Hz - 20 kHz 2-channel simultaneously driven) 200 W × 2 (4 Ω)
• Total harmonic distortion: 0.01 %
(20 Hz - 20 kHz 2-channel simultaneously driven, 8 Ω)
• Output band width: (8 Ω, 0.05 %) 5 Hz − 45 kHz
• Frequency response: (CD, 1 W, 8 Ω load) 5 Hz − 120 kHz ± 3 dB
• Damping factor: (8 Ω, 20 Hz − 20 kHz) 100
• Input sensitivity/Input impedance
PHONO (MC):
PHONO (MM):
BALANCED:
CD/LINE:
P. DIRECT IN:
260 µV / 100 Ω
2.7 mV / 47 kΩ
480 mV / 40 kΩ
240 mV / 20 kΩ
1.7 V / 20 kΩ
• Output voltage/Output impedance
PRE OUT: 1.9 V / 220 Ω
• Maximum allowable PHONO input level (1 kHz)
MC:
MM:
10 mV
105 mV
• RIAA deviation: (20 Hz−20 kHz) ± 0.5 dB
• S/N (IHF-A, 8 Ω)
PHONO (MC):
PHONO (MM):
BALANCED:
CD/LINE:
76 dB (0.5 mV Input, 1 W Output)
88 dB (5 mV Input, 1 W Output)
109 dB (4 V Input, Rated output)
108 dB (2 V Input, Rated output)
• Tone control
BASS (50 Hz):
TREBLE (20 kHz):
± 8 dB
± 8 dB
• Power requirement: U:AC 120 V, 60 Hz
N:AC 230 V, 50/60 Hz
K:AC 220 V, 50 Hz
• Power consumption: 300 W
• Standby power consumption: 0.2 W
6-5/8
(168.0)
3/16
(4.0)
5-3/4
(146.0)
3/4
(18.0)
17-3/8 (440.0)
17-7/8
(453.0)
3/4
(19.0)
1-3/8
(34.0)
15-3/4
(400.0)

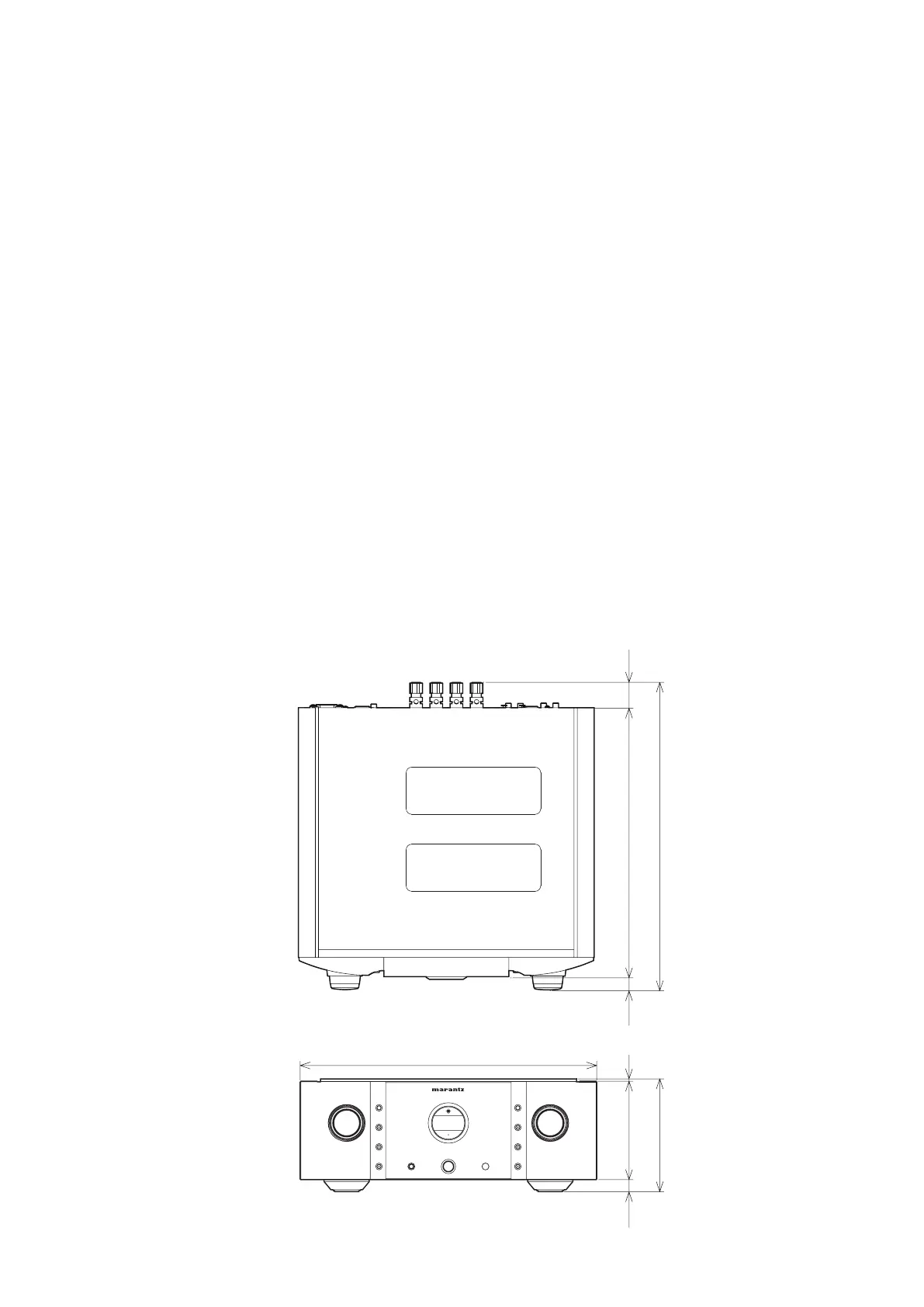

DIMENSION

Marantz PM-11S3 Specifications

General

Damping factor	100
Amplifier class	-
Frequency range	5 - 100000 Hz
Input sensitivity	240 mV
Audio output channels	2.0 channels
Peak power per channel	200 W
Signal-to-Noise Ratio (SNR)	96 dB
Total Harmonic Distortion (THD)	0.01 %
Dynamic power per channel (8 Ohm)	100 W
XLR in	Yes
Headphone outputs	1
Line inputs (RCA)	2
Headphone connectivity	6.3 mm
Speakers connectivity type	Clamp terminals
Material	Metal
Cooling type	Passive
Product color	Black, Gold
Volume control	Rotary
Connectivity technology	Wired
Power consumption (standby)	0.3 W
Power consumption (typical)	300 W

Weight and Dimensions

Depth	449 mm
Width	440 mm
Height	168 mm
Weight	27000 g
