Marantz PM-11S3 Service Manual

6
Magnify schematic / printed wiring board
diagrams - 2
(Pan & Zoom function)

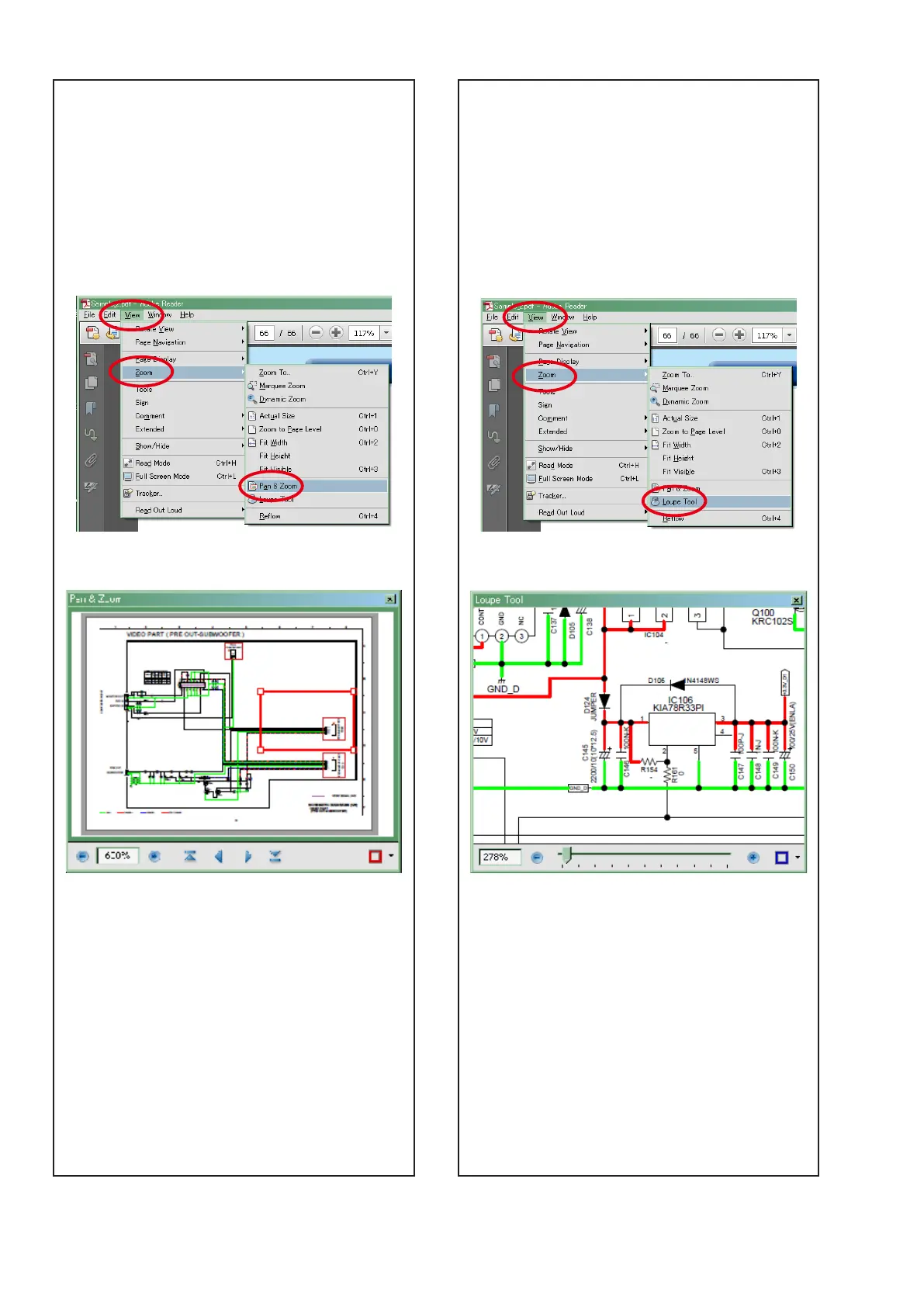

The Pan & Zoom function lets you see which part of a
magnied diagram is being shown in a separate window.
[Example using Adobe Reader X]
On the "View" menu, point to "Zoom", and then click
"Pan & Zoom".
• The Pan & Zoom window appears on the screen.
[Example using Adobe Reader 9]
On the "Tools" menu, point to "Select & Zoom", and
then click "Pan & Zoom Window".
Magnify schematic / printed wiring board
diagrams - 3
(Loupe Tool function)
The Loupe Tool function lets you magnify a specific
part of a diagram in a separate window.
[Example using Adobe Reader X]
On the "View" menu, point to "Zoom", and then click
"Loupe Tool".
• The Loupe Tool window appears on the screen.
[Example using Adobe Reader 9]
On the "Tools" menu, point to "Select & Zoom", and
then click "Loupe Tool Window".

Marantz PM-11S3 Specifications

General

Damping factor	100
Amplifier class	-
Frequency range	5 - 100000 Hz
Input sensitivity	240 mV
Audio output channels	2.0 channels
Peak power per channel	200 W
Signal-to-Noise Ratio (SNR)	96 dB
Total Harmonic Distortion (THD)	0.01 %
Dynamic power per channel (8 Ohm)	100 W
XLR in	Yes
Headphone outputs	1
Line inputs (RCA)	2
Headphone connectivity	6.3 mm
Speakers connectivity type	Clamp terminals
Material	Metal
Cooling type	Passive
Product color	Black, Gold
Volume control	Rotary
Connectivity technology	Wired
Power consumption (standby)	0.3 W
Power consumption (typical)	300 W

Weight and Dimensions

Depth	449 mm
Width	440 mm
Height	168 mm
Weight	27000 g
