Marantz SR3000 - Front Board - Component & Copper Side View

6-7 6-7

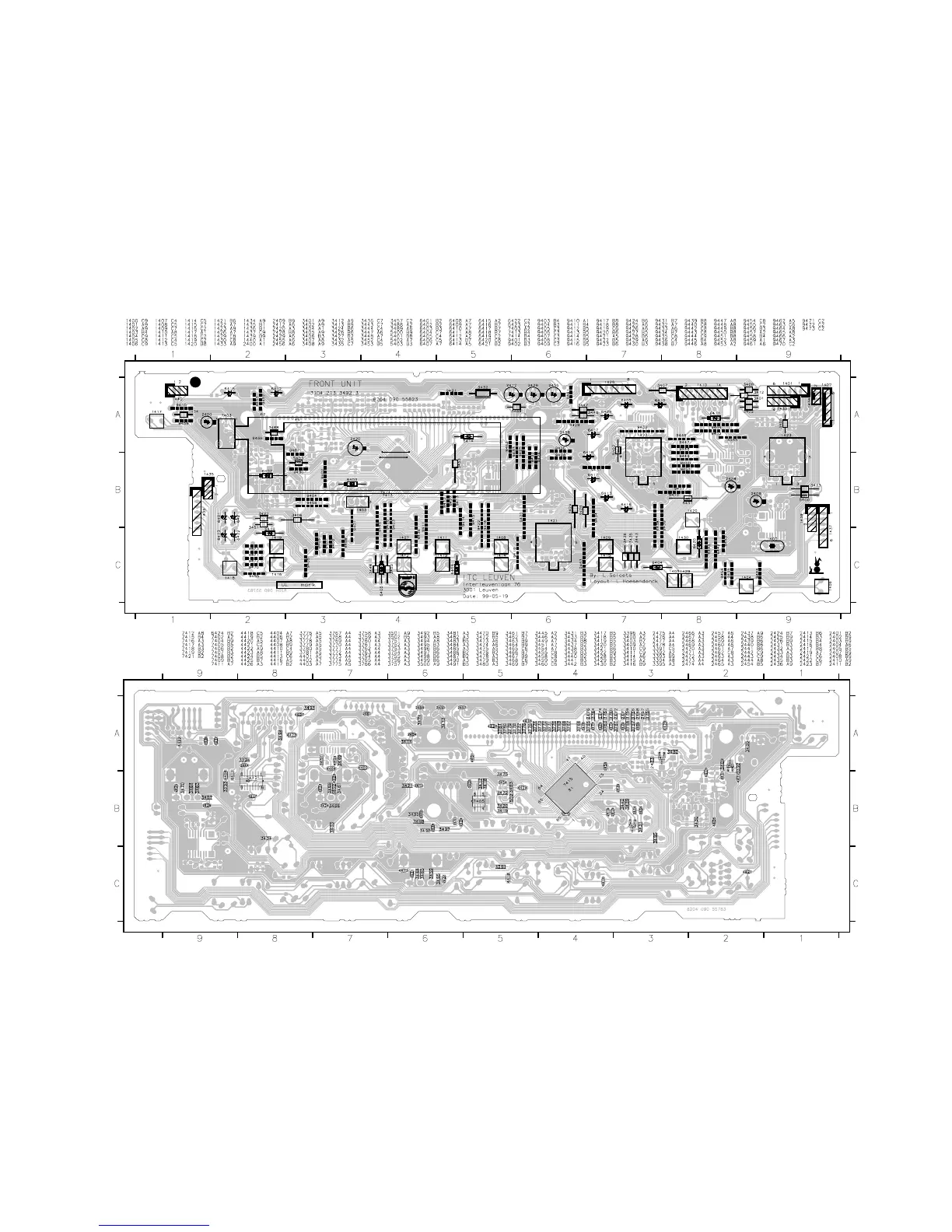

FRONT BOARD - COMPONENT & COPPER SIDE VIEW
This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram respectively partslist.
This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram respectively partslist.
