Marantz SR5005 - Page 44

44

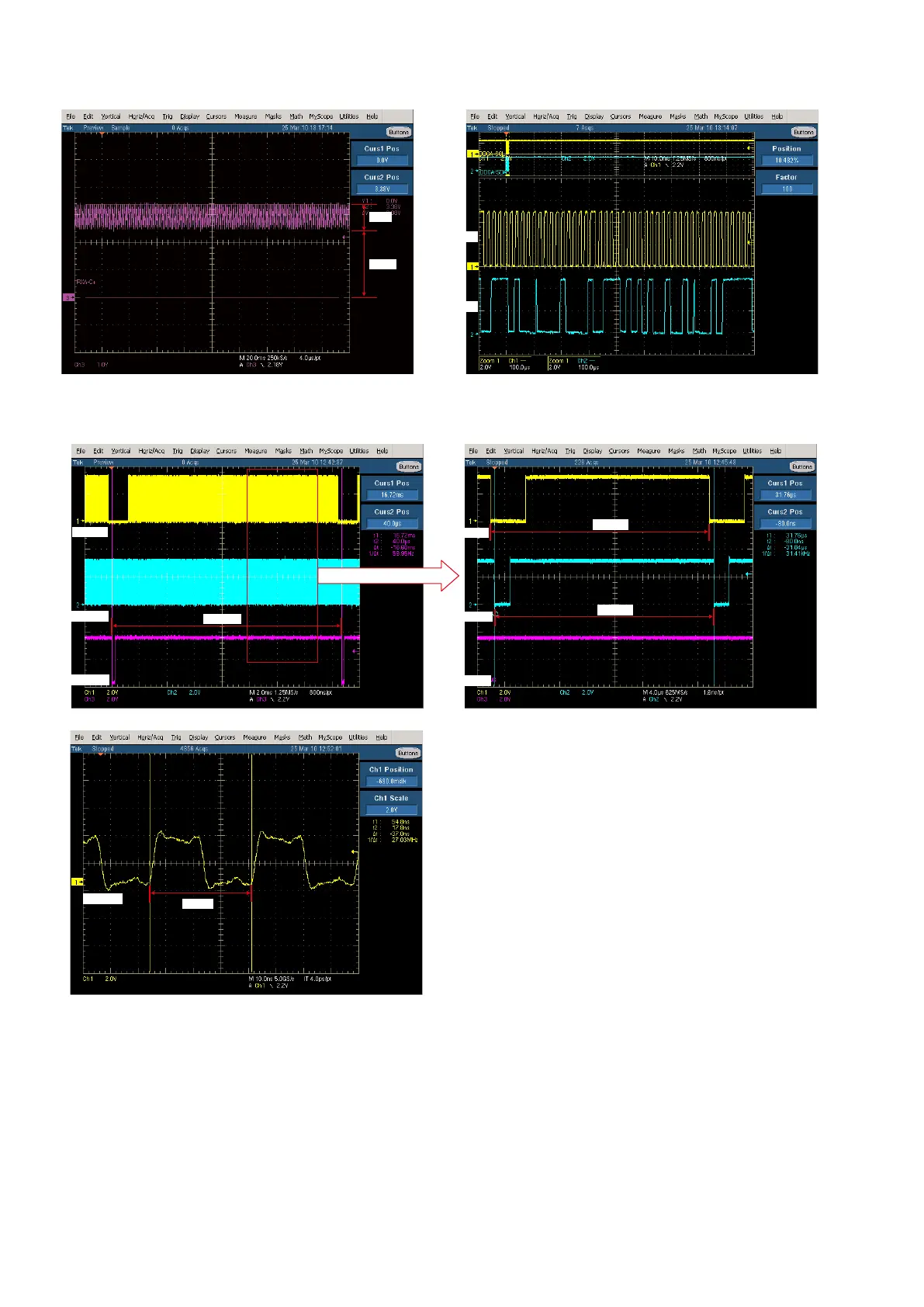

DDC_CLK/DDC_DATA/TMDS(1,3,4,6,7,9,10,12pin) : Check item (15),(17)
IPINDE/IPINVSYNC/IPINHSYNC/IPINPCK : Check item (21)
0.9V
2.48V
DDC_CLK
DDC_DATA
IPINDE
IPINDE
16.68ms
IPINHSYNC
IPINVSYNC
IPINHSYNC
IPINVSYNC
31.84us
31.76us
IPINPCK
37.0ns
