Marantz SR5005 - 4. HDMI UNIT ASSY

13

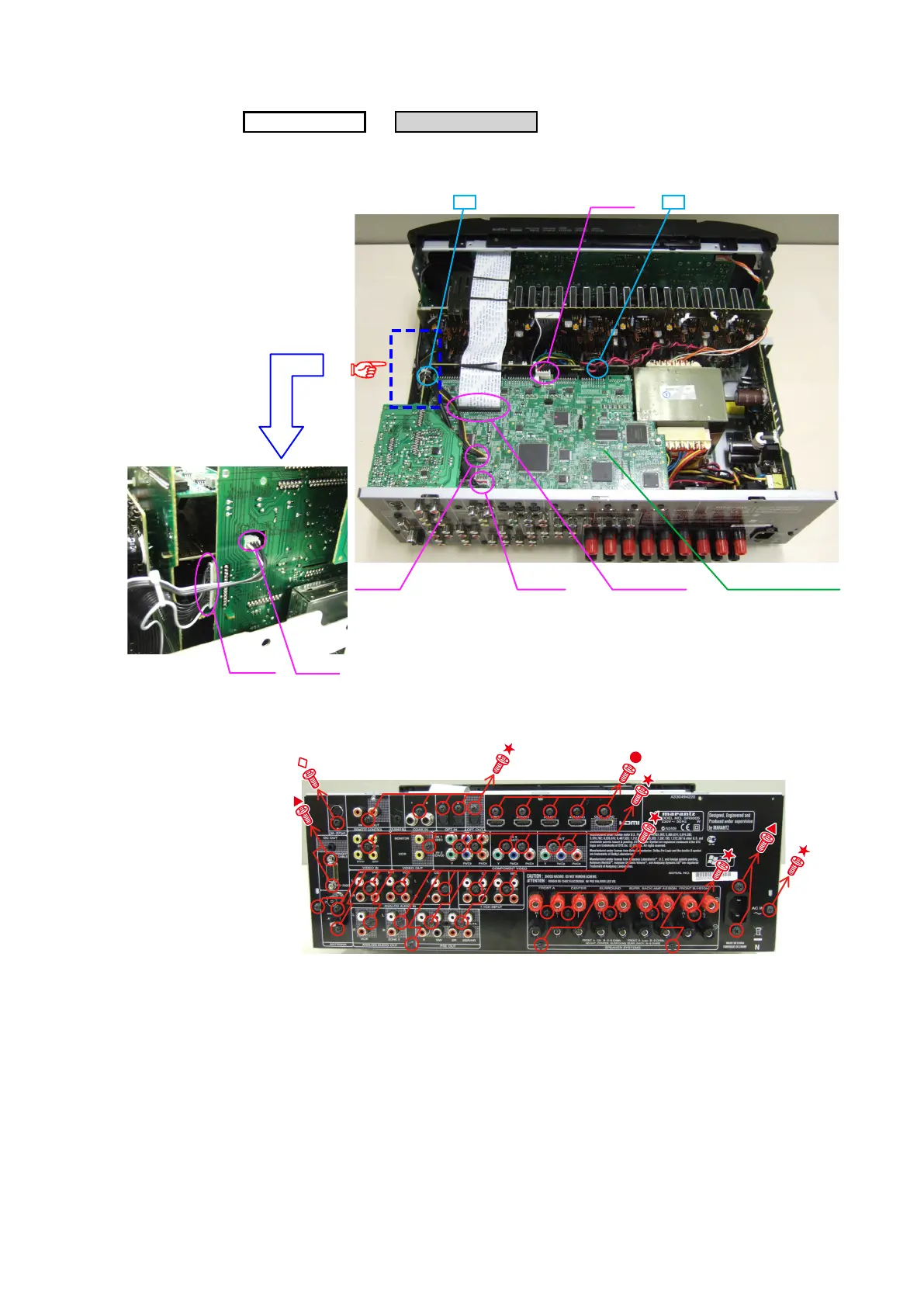

4. HDMI UNIT ASSY
(1) Cut the wire clamp bands, then disconnect the connector wire and FFC cable.
(2) Remove the screws, then remove the BACK PANEL.
CABINET TOP
HDMI UNIT ASSY
→
Proceeding :
HDMI UNIT ASSY
Direction of
photograph: C
s
FFC cable
N2706
N2501
N4401
cut
cut
N2004
CP13A
Direction of photograph: A
