Marantz SR5005 - 1. FRONT PANEL ASSY

8

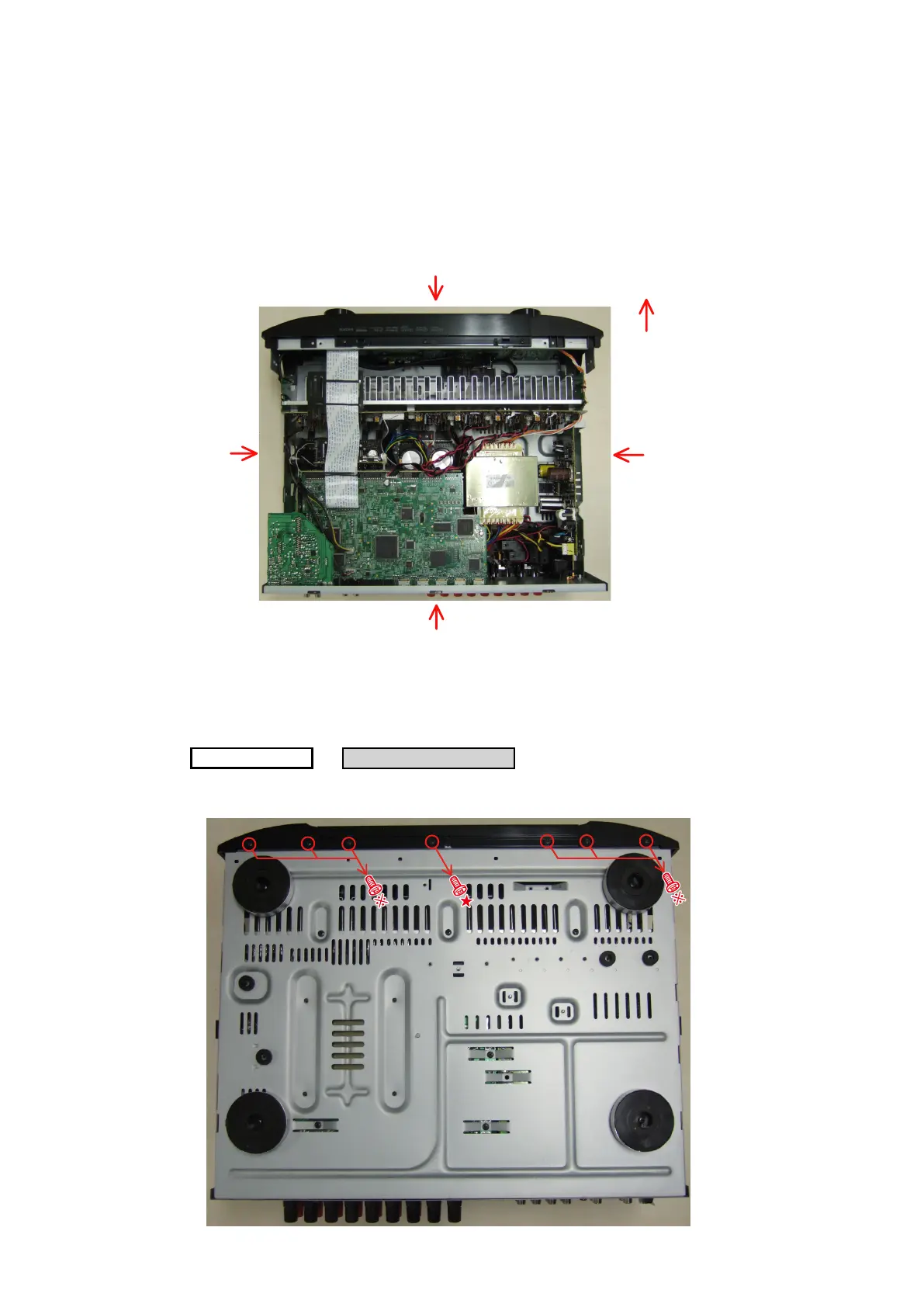

About the photos used for descriptions in the "DISASSEMBLY" section.
• The direction from which the photographs used herein were photographed is indicated at "Direction of photograph: ***"
at the left of the respective photographs.
• Refer to the table below for a description of the direction in which the photos were taken.
• Photographs for which no direction is indicated were taken from above the product.
• The Photographs is SR5005 N1B model.
1. FRONT PANEL ASSY
(1) Remove the screws.
The viewpoint of each photograph
(Photografy direction)
［View from above］
Front side
Direction of photograph: B
Direction of photograph: D
Direction of photograph: C
Direction of photograph: A
CABINET TOP
FRONT PANEL ASSY
→
Proceeding :
View from bottom
