9

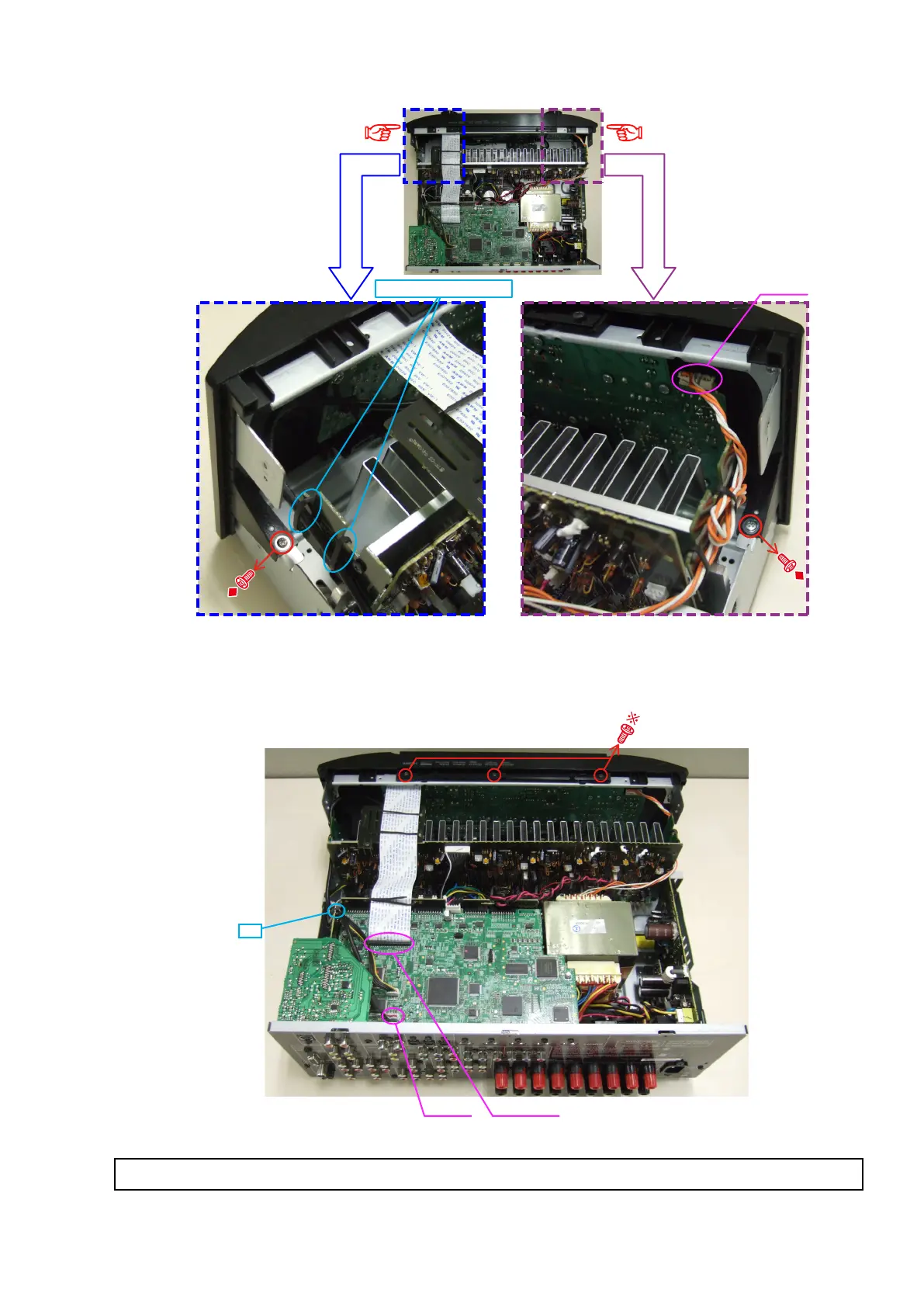

(2) Disconnect the connector wires then remove the screws.
(3) Cut the wire clamp bands, then disconnect the connector wires and FFC cable. Remove the screws.
Direction of photograph: D
Direction of photograph: C
STYLEPIN : Loose
CP308
FFC cableN4401
cut
s
Please refer to "EXPLODED VIEW" for the disassembly method of each PCB included in FRONT PANEL ASSY.
To Next Page
