Marantz SR5005 - TECHNICAL SPECIFICATIONS; DIMENSION

5
348.517.5 22.5
389
30.58630.0
53.5 245
440
146.5
344
214.564.0
14.5
161
TECHNICAL SPECIFICATIONS
n Audio Section
• Power amplifi er
Rated output :
Front :
100 W + 100 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
180 W + 180 W (6 Ω, 1 kHz with 10 % T.H.D.)
Center :
100 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
180 W (6 Ω, 1 kHz with 10 % T.H.D.)
Surround :
100 W + 100 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
180 W + 180 W (6 Ω, 1 kHz with 10 % T.H.D.)
Surround Back :
100 W + 100 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
180 W + 180 W (6 Ω, 1 kHz with 10 % T.H.D.)
Output connectors : 6 – 8 Ω (SPEAKER A + B : 8 Ω)
• Analog
Input sensitivity/Input impedance : 165 mV/50 kΩ
Frequency response : 10 Hz – 100 kHz — ±3 dB (Source Direct mode)
S/N : 98 dB (IHF–A weighted, Source Direct mode)
n Video Section
• Standard video connectors
Input/output level and impedance : 1 Vp-p, 75 Ω
Frequency response : 5 Hz – 10 MHz — +1, –3 dB
• Standard video connectors
Input/output level and impedance :
Y (brightness) signal — 1 Vp-p, 75 Ω
P
B / CB signal — 0.7 Vp-p, 75 Ω
P
R / CR signal — 0.7 Vp-p, 75 Ω
Frequency response : 5 Hz – 60 MHz — +0, –3 dB
n Tuner section
[FM](Note: μV at 75 Ω, 0 dBf = 1 x 10
–15
W)
Receiving Range (for U) :
[FM] 87.5 MHz – 107.9 MHz
[AM]520 kHz – 1710 kHz
Receiving Range (for N,K)s :
[FM] 87.5 MHz – 108.0 MHz
[AM]522 kHz – 1611 kHz
Usable Sensitivity :
[FM]1.2 μV (12.8 dBf)
[AM]18 μV
50 dB Quieting Sensitivity (for U) :
[FM]MONO 2.8 μV (20.2 dBf)
50 dB Quieting Sensitivity (for N,K)s :
[FM]MONO 2.0 μV (17.3 dBf)
STEREO 42 μV (34.5 dBf)
S/N (IHF-A) :
[FM]MONO 70 dB
STEREO 67 dB
Total harmonic Distortion (at 1 kHz) (for U) :
[FM]MONO 0.7 %
STEREO 1.0 %
Total harmonic Distortion (at 1 kHz) (for N,K) s :
[FM]MONO 0.3 %
STEREO 0.7 %
n General
Power supply (for U) : AC 120 V, 60 Hz
Power supply (for N) : AC 230 V, 50 Hz
Power supply (for K) : AC 220 V, 50 Hz s
Power consumption :
650 W
0.2 W (Standby)
3 W (CEC standby)
Maximum external dimensions :
440 (W) x 161 (H) x 389 (D) mm
Weight : 11.6 kg
n Remote Control Unit (RC010SR)
Batteries : R03/AAA Type (two batteries)

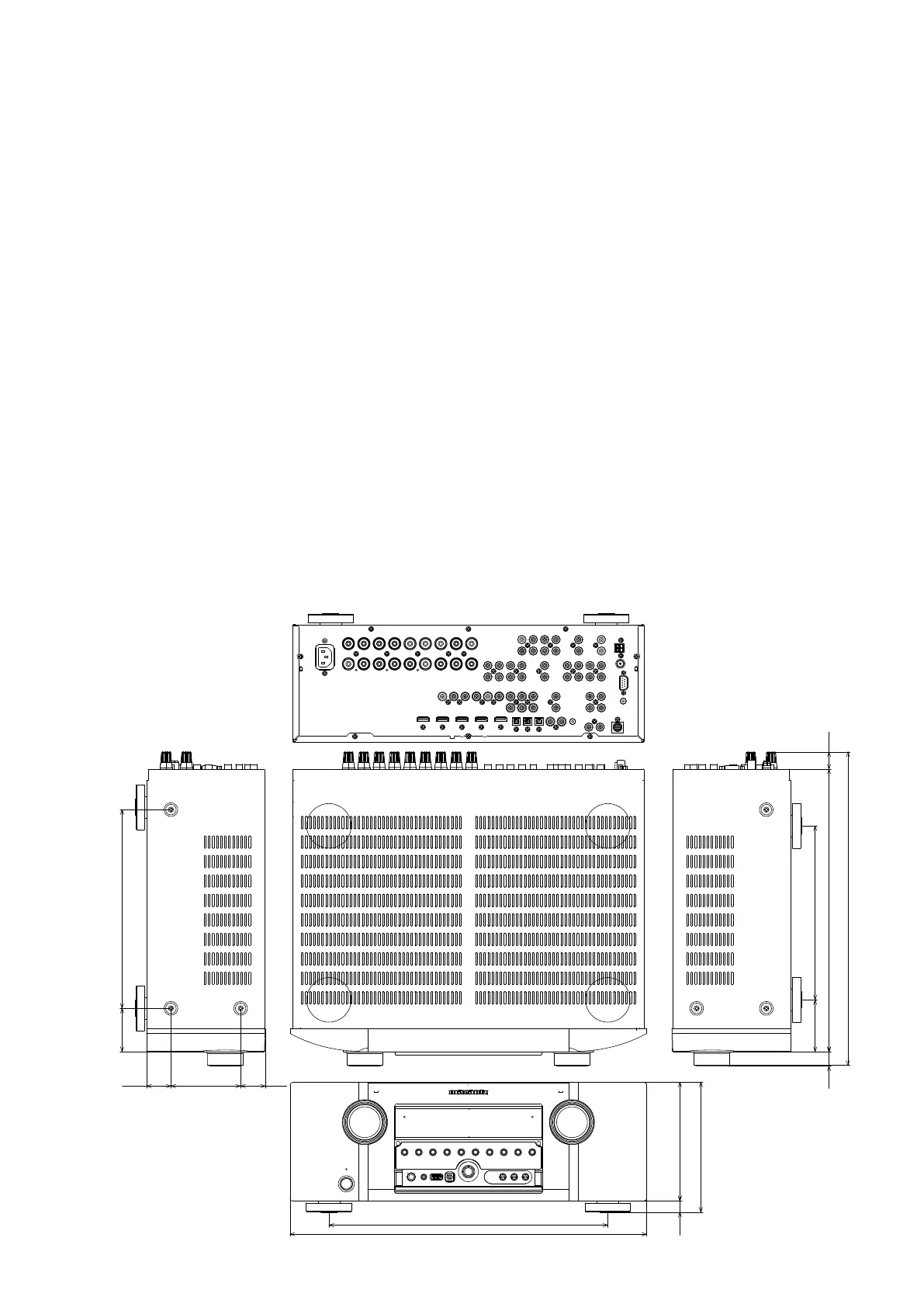

DIMENSION
