Marantz SR5005 - 3. PCB REG CNT;PCB REG

12
3. PCB REG CNT/PCB REG

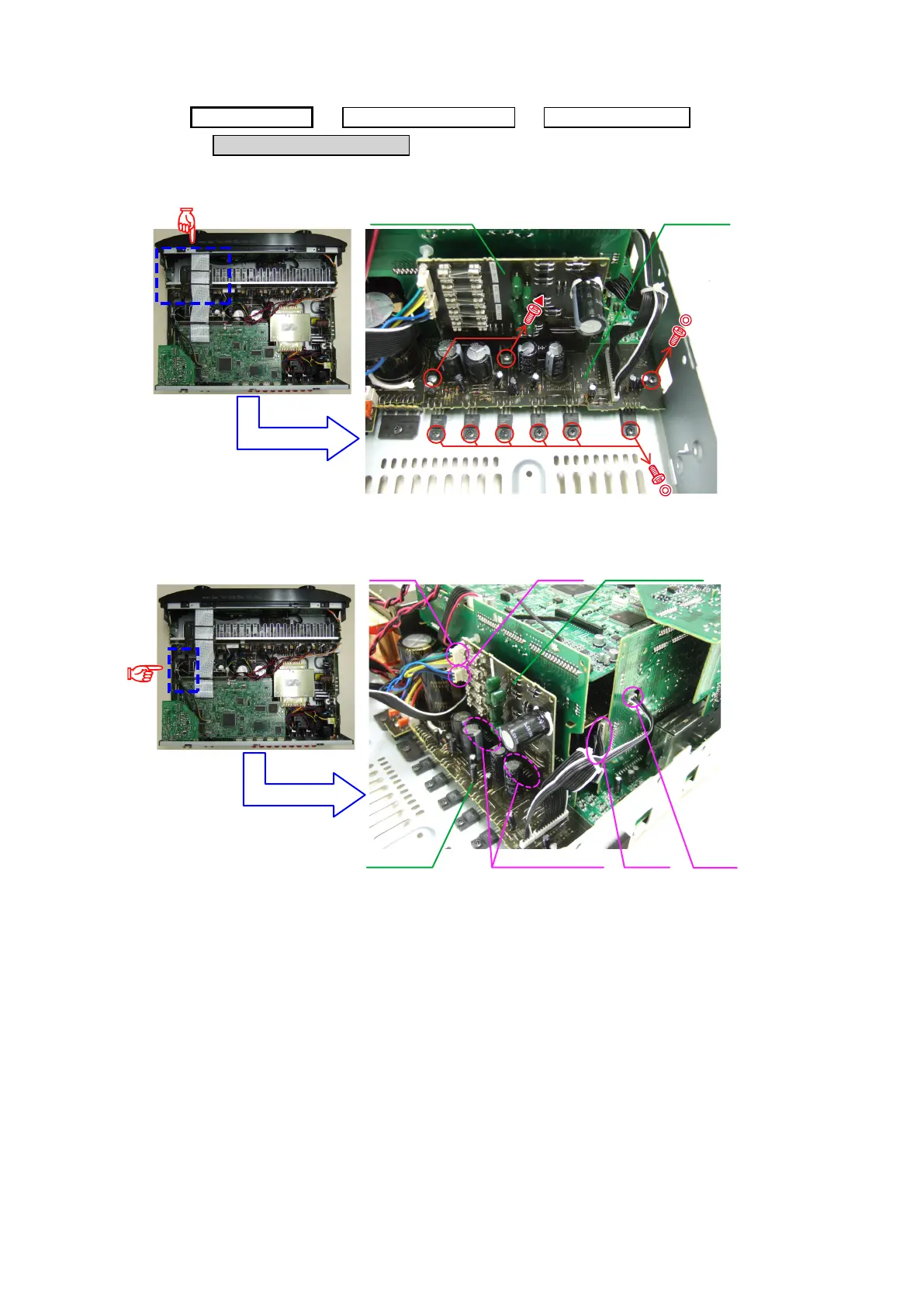

(1) Remove the screws.
(2) Disconnect the connector wires and connector board.
CABINET TOP
FRONT PANEL ASSY
→
RADIATOR ASSY
→
Proceeding :
PCB REG CNT/PCB REG
→
Direction of photograph: B
PCB REG CNT PCB REG
Direction of photograph: C
N2004
CP104 PCB REG CNT
Board to board
CP102
CP13A PCB REG
