Marantz SR5005 - 5. PCB SPK;PCB SMPS

16
5. PCB SPK/PCB SMPS

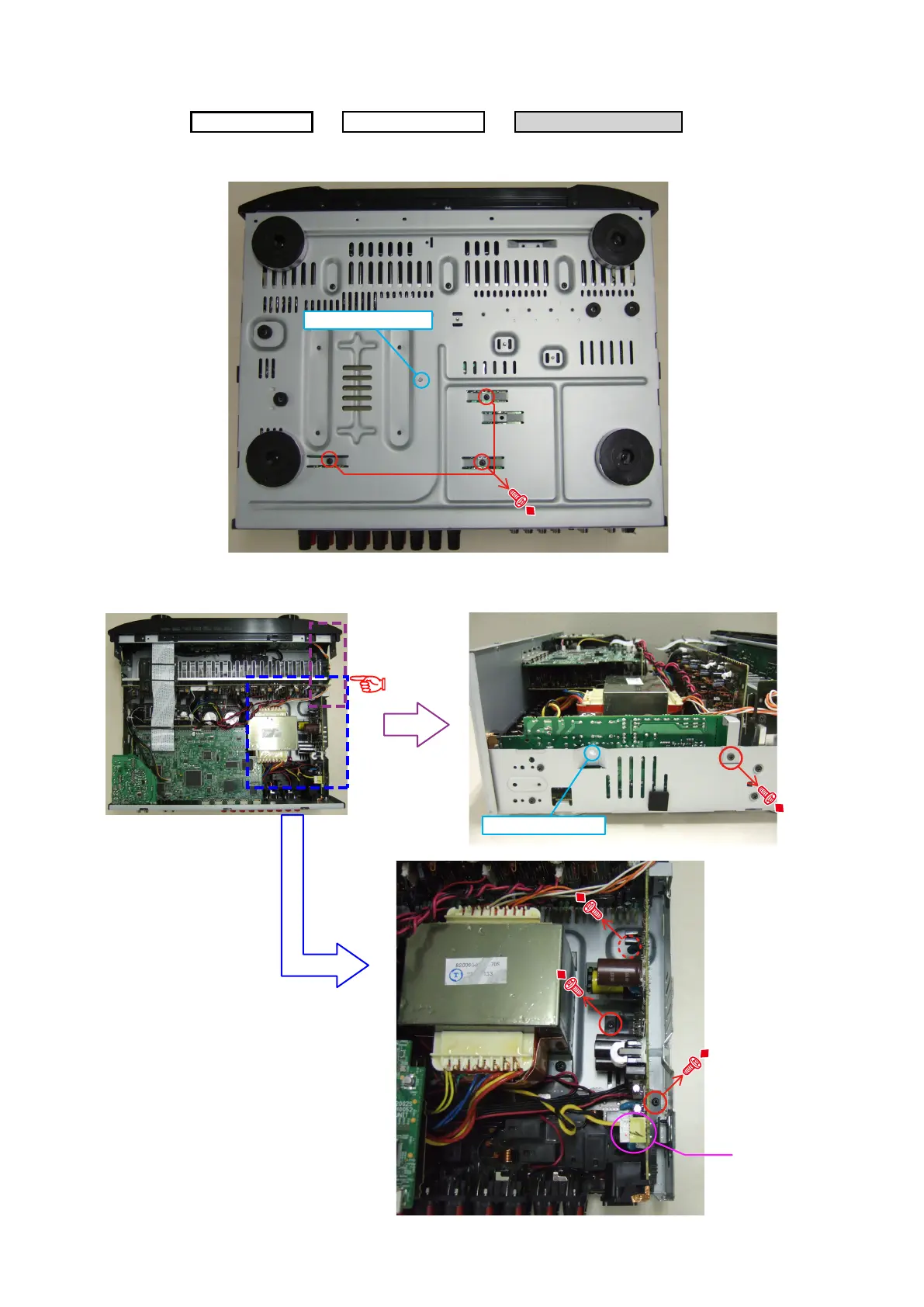

(1) Remove the screws and SUPPORTER P.C.
(2) Disconnect the connector wire, then remove the screws.
CABINET TOP
HDMI UNIT ASSY
→
PCB SPK/PCB SMPS
→
Proceeding :
View from bottom
SUPPORTER P.C.
Direction of
photograph: D
CX102
SUPPORTER P.C.
