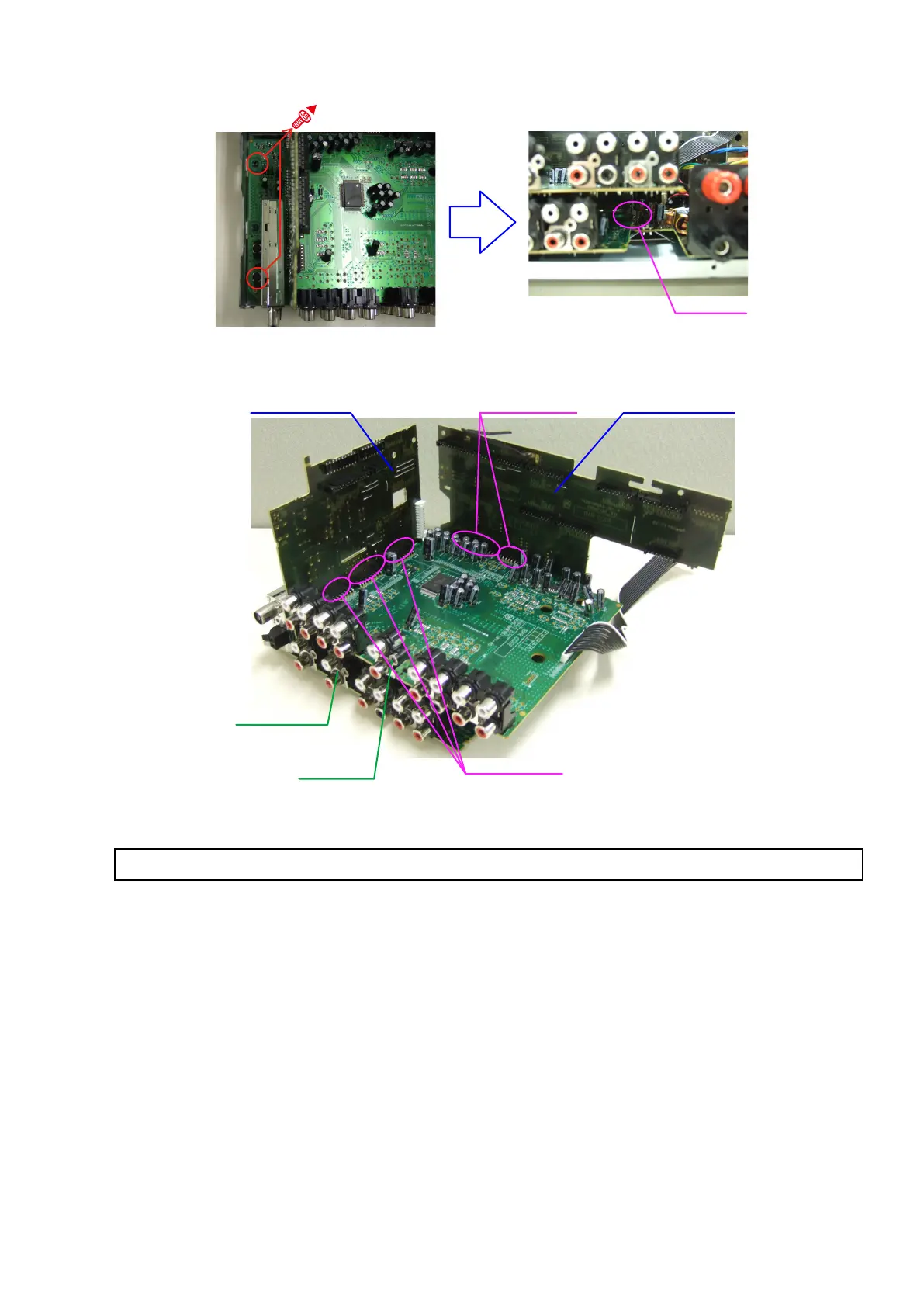

(6) Remove the screws then disconnect the connector.
(7) Disconnect the connector board.
Direction of photograph: A
Connector
PCB AUDIO
PCB PREOUT
PCB FRONT CNTPCB SIDE CNT
Board to board
Board to board
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in HDMI UNIT ASSY.
