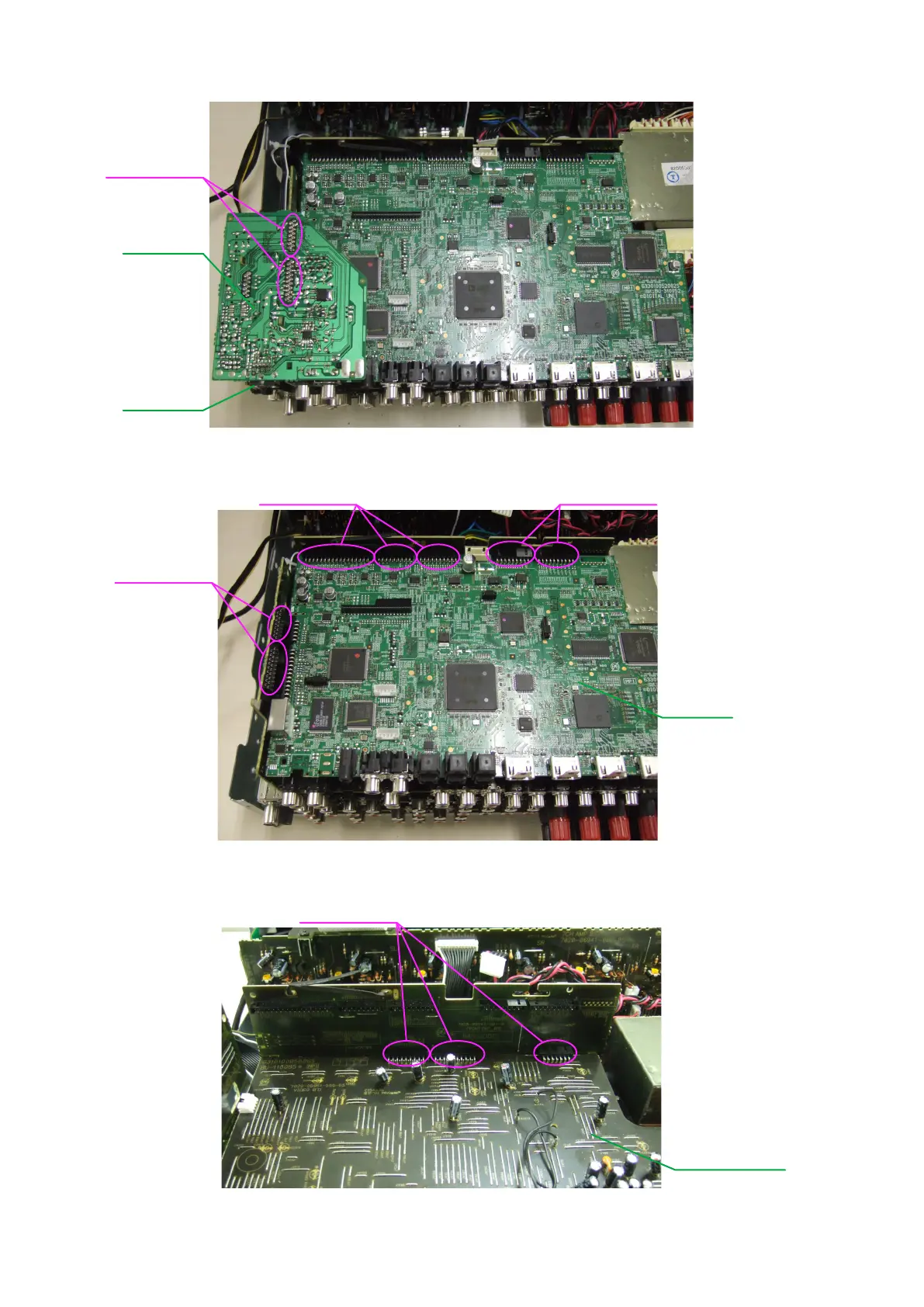

(3) Remove the PCB RS232/SIRIUS.
(4) Disconnect the connector board.
(5) Disconnect the connector board.
Board to board
PCB SIRIUS
PCB RS232
PCB HDMI
Board to board
Board to board
Board to board
Board to board
PCB VIDEO ASSY
