5. Belt Guard installation
Fasten the belt guard to the baseplate using the 3X 10-24 Thumb screws. Thread the two closest to the
front of the machine about halfway then slide the Belt Guard into position. Once the belt guard is
properly positioned the thumb screws can be fully tightened and the 3
rd
screw can be installed. Do not
over-tighten.

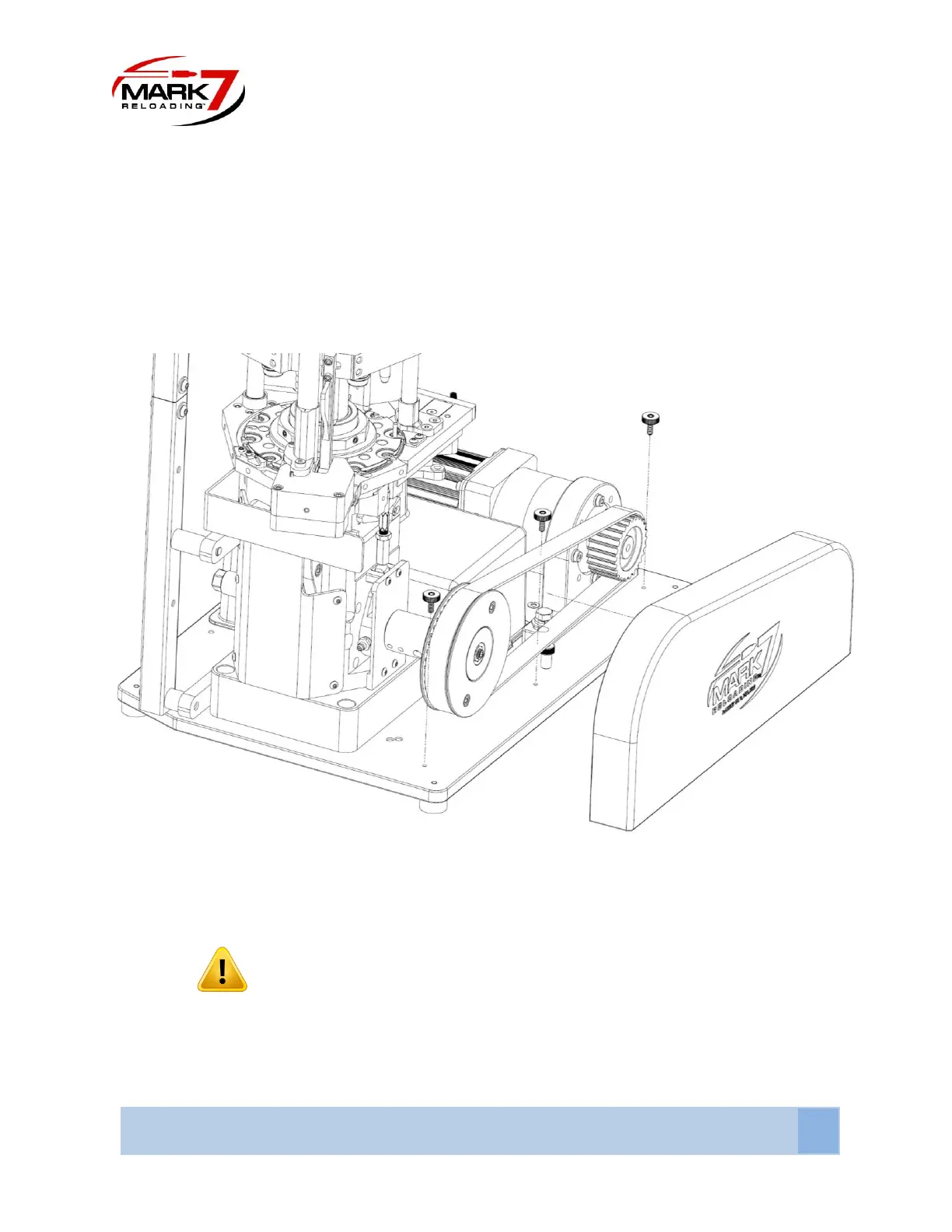

Figure 5: Installing Belt Guard
WARNING
Never operate the machine without the belt guard installed properly.
