8. Console Rear inputs

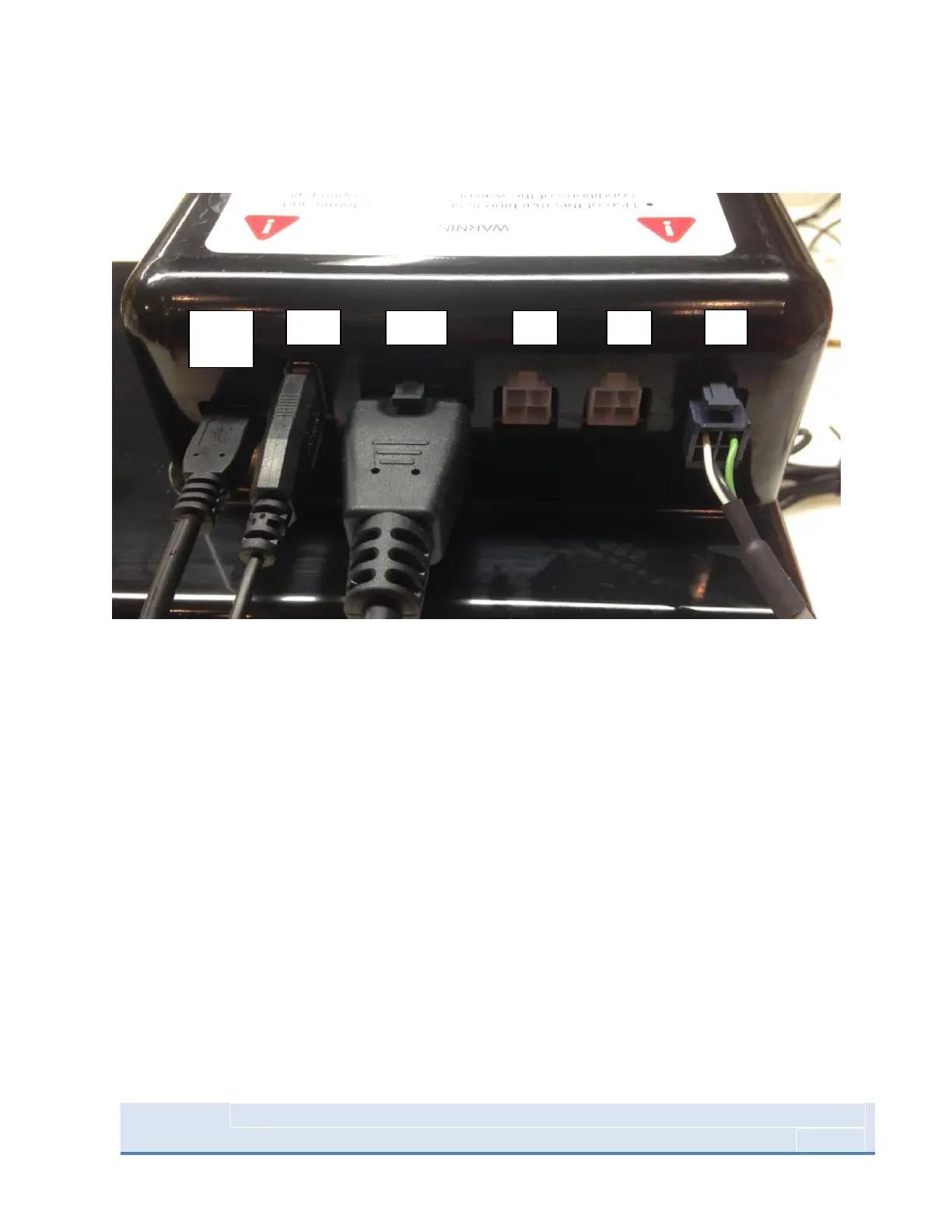

Figure 8: Rear of console Inputs
Before powering on the Mark 7 Units please make the following connections:
Micro-USB: Tablet to Console USB data communication cable
USB: Motor to Console USB data communication cable
8-Pin: Motor to console signal cable
Port #7. Digital Powder Measure (optional)
Port #6. Remote Stop (optional)
Port #5. DecapSense (optional)
Micro
USB
USB
8-Pin
#7
#6
#5
