11. Manually Operating the Evolution
TM
The Evolution
TM
can still be operated manually with an 11/16” wrench or with a 2
nd
handle adapter
attached the handle on the left side (optional). Having the ability to manually actuate the press is
helpful in setup/machine adjustments and jam clearing situations.
Check the following with a clear shell plate before powering on the machine:
• Toolhead moves the full stroke with no change in resistance
• Belt tension is consistent throughout the full stroke
• Belt tracking is consistent thought the full stroke.
• No cables are near the moving parts of the press, secure any loose cables away from the moving
components

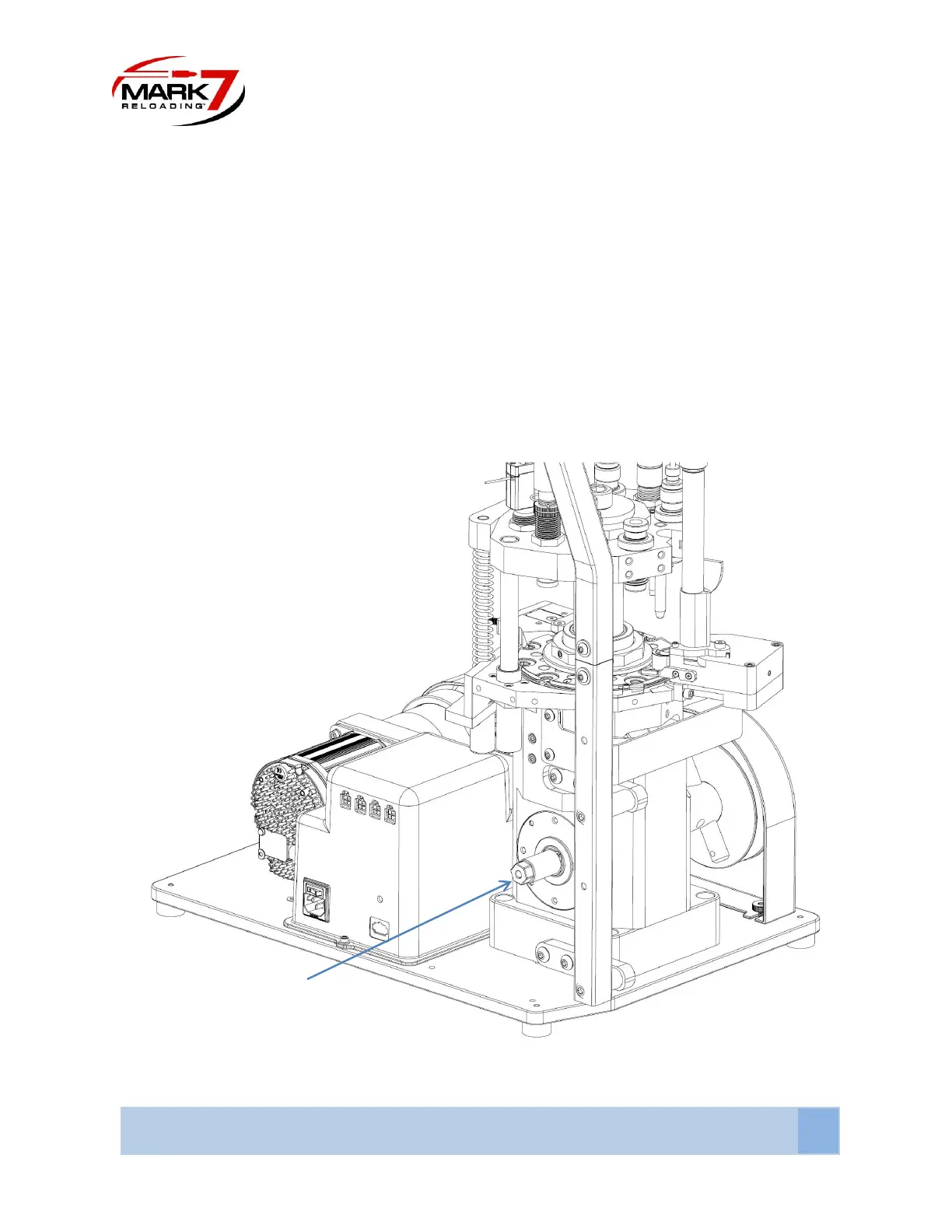

Figure 11: Manually driving the Evolution
