3. Mounting Large Sprocket
Insert the link arm through the shaft Adapter then fasten the sprocket to the link bar with the 2X ¼-20
socket cap screws. Once the sprocket is secured insert the sprocket cap and thread in the 3/8 Set screw
to lock in the link bar. Lock the set screw in place with the jam nut using a 9/16” socket.

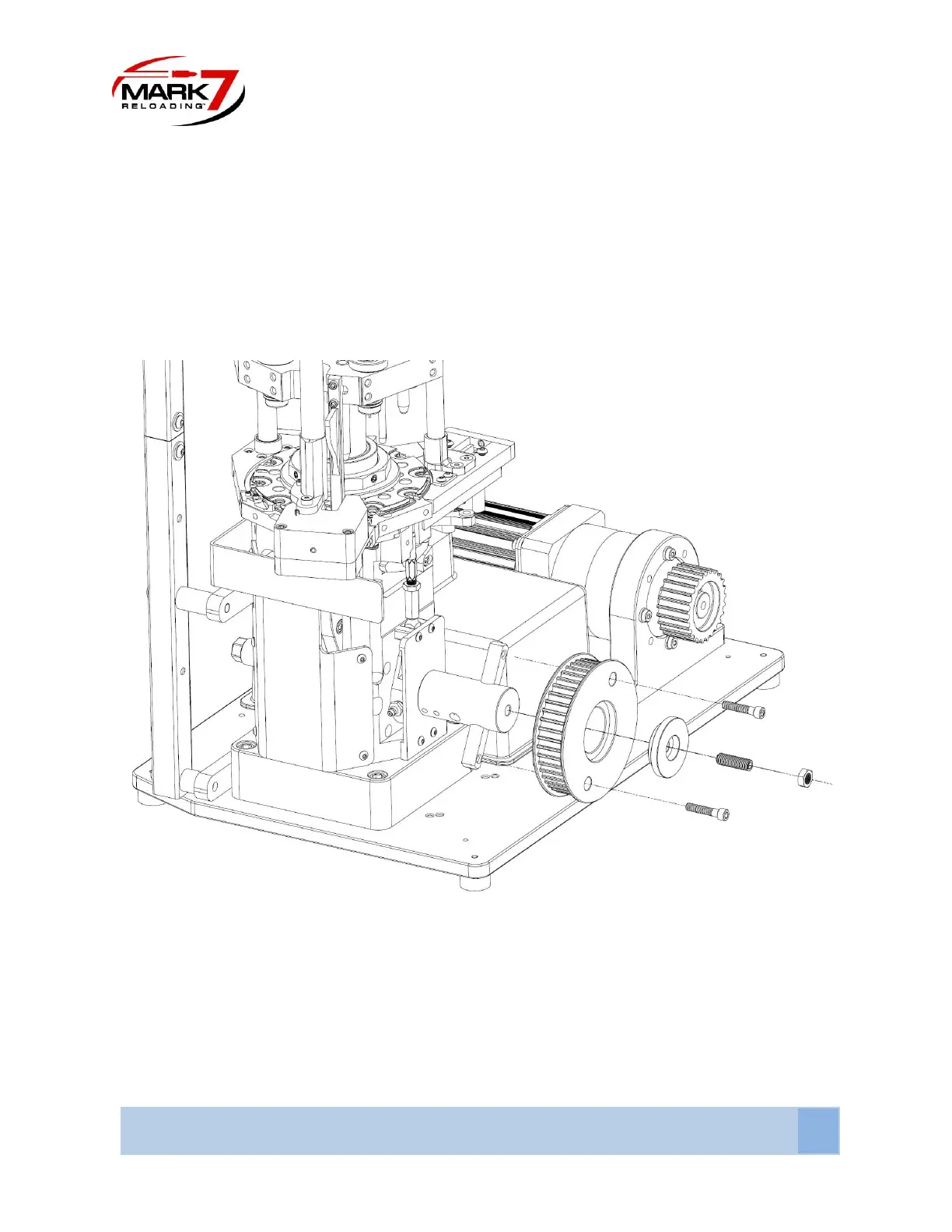

Figure 3: Mounting Large Sprocket
